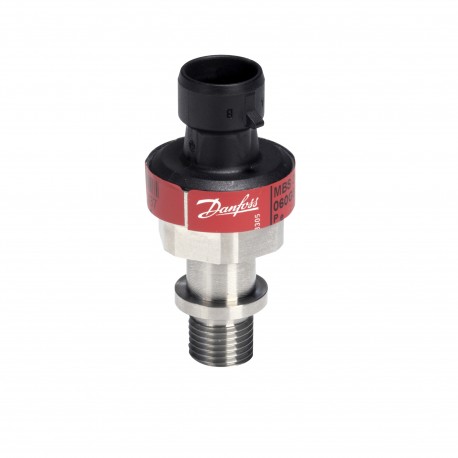

064G6533 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1900
064G6533
DANFOSS INDUSTRIAL AUTOMATION
Pressure transmitter, MBS 1900
Pressure transmitter, MBS 1900, 0.00 bar - 16.00 bar, 0.00 psi - 232.06 psi
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 1900, Pressure transmitter for air and water applications - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Round Packard Metri-Pack, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 1900-2211-C2GB04-2
Product details
| Gross weight | 0.048 Kilogram |
| Net weight | 0.04 Kilogram |
| Volume | 0.104 Liter |
| EAN | 5702423273188 |
| Gross weight | 0.048 Kilogram |
| Net weight | 0.04 Kilogram |
| Volume | 0.104 Liter |
| EAN | 5702423273188 |
| + supply | Pin 2 |
| - common | Pin 1 |
| Accuracy @ ref. temp. ±FS [%] | 1 % |
| Accuracy, typical [±FS%] | 1 % |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | cURus |
| Approval comments | UL-873 |
| China RoHS compliance | Yes |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Electrical connection size | 3 pin |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault Monitoring Demand | No |
| Flush diaphragm | No |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702423273188 |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 80 °C |
| Medium temperature range [°C] [min] | 0 °C |
| Medium temperature range [°F] [max] | 176 °F |
| Medium temperature range [°F] [min] | 32 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 75 bar |
| Overload pressure max. [psi] | 1088 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 24 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 16 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 232.06 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 45 pc |
| REACH Candidate List substances | No |
| Reference temperature [°C] | 20 °C |
| Reference temperature [°F] | 68 °F |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 1900-2211-C2GB04-2 |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [min] | 9 V |
| Supply voltage [V] DC [min] | 9 V |
| TEB inside CTR ±FS [%] | 3 % |
| Type | MBS 1900 |
| UK RoHS compliance | Yes |
| UL evaluated | Yes |
| + supply | Pin 2 |
| - common | Pin 1 |
| Accuracy @ ref. temp. ±FS [%] | 1 % |
| Accuracy, typical [±FS%] | 1 % |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | cURus |
| Approval comments | UL-873 |
| China RoHS compliance | Yes |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Electrical connection size | 3 pin |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault Monitoring Demand | No |
| Flush diaphragm | No |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702423273188 |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 80 °C |
| Medium temperature range [°C] [min] | 0 °C |
| Medium temperature range [°F] [max] | 176 °F |
| Medium temperature range [°F] [min] | 32 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 75 bar |
| Overload pressure max. [psi] | 1088 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 24 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 16 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 232.06 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 45 pc |
| REACH Candidate List substances | No |
| Reference temperature [°C] | 20 °C |
| Reference temperature [°F] | 68 °F |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 1900-2211-C2GB04-2 |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [min] | 9 V |
| Supply voltage [V] DC [min] | 9 V |
| TEB inside CTR ±FS [%] | 3 % |
| Type | MBS 1900 |
| UK RoHS compliance | Yes |
| UL evaluated | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes |
|
| PDF Types of pressure transmitters (EN).pdf | 1 Mbytes |
|
| 064G6533 064G6533 EN_064G6502.pdf | 519 Kbytes |
|
