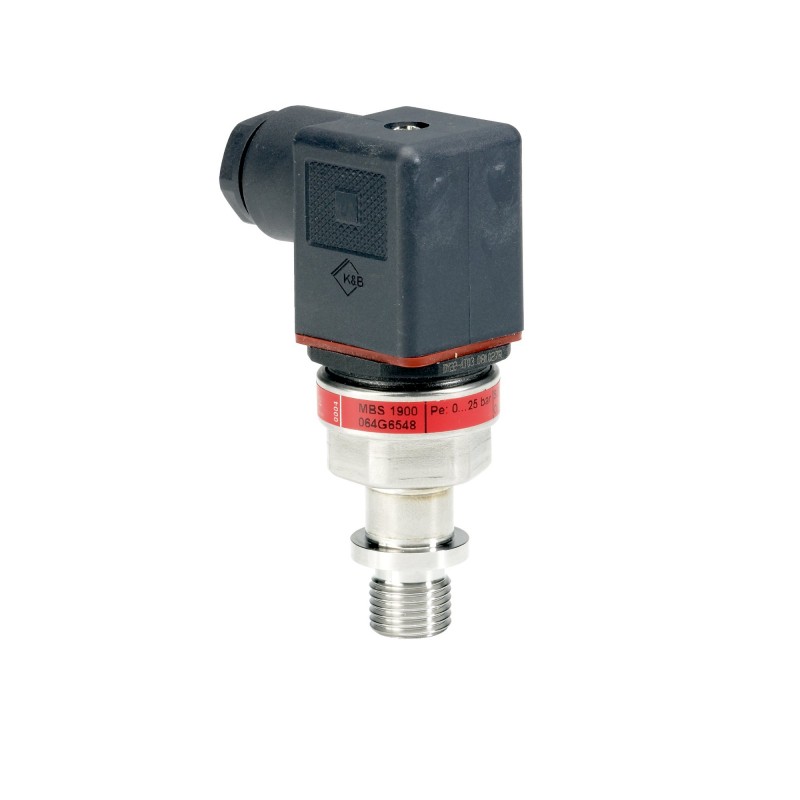

064G6531 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1900
064G6531
DANFOSS INDUSTRIAL AUTOMATION
Pressure transmitter, MBS 1900
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 1900, Pressure transmitter for air and water applications - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲| Gross weight | 0.09 Kg |
| Net weight | 0.08 Kg |
| EAN | 5702423273164 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy @ ref. temp. ±FS [%] | 1 % |
| Accuracy, typical +/- FS [%] | 1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 80 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 176 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | C UR US |
| Approval comments | UL-873 |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Fault Monitoring Demand | No |
| Flush diaphragm | No |
| Identical product | 064G4502 |
| Intrinsically safe | No |
| Medium temperature range [°C] [Max] | 80 °C |
| Medium temperature range [°C] [Min] | 0 °C |
| Medium temperature range [°F] [Max] | 176 °F |
| Medium temperature range [°F] [Min] | 32 °F |
| Non-linearity BFSL ±FS [%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 75 bar |
| Overload pressure max. [psi] | 1088 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 24 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 16 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 232.06 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product Group | Sensors |
| Product name | Pressure transmitter |
| Product type | MBS 1900 |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Reference temperature [°C] | 20 °C |
| Reference temperature [°F] | 68 °F |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 1900-2211-A1GB04-2 |
| Supply voltage [V] DC [Max] | 28 V |
| Supply voltage [V] DC [Min] | 9 V |
| TEB inside CTR ±FS [%] | 3 % |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes |
|
| PDF Types of pressure transmitters (EN).pdf | 1 Mbytes |
|
