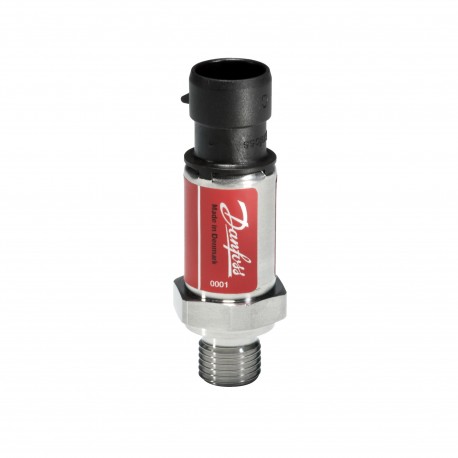

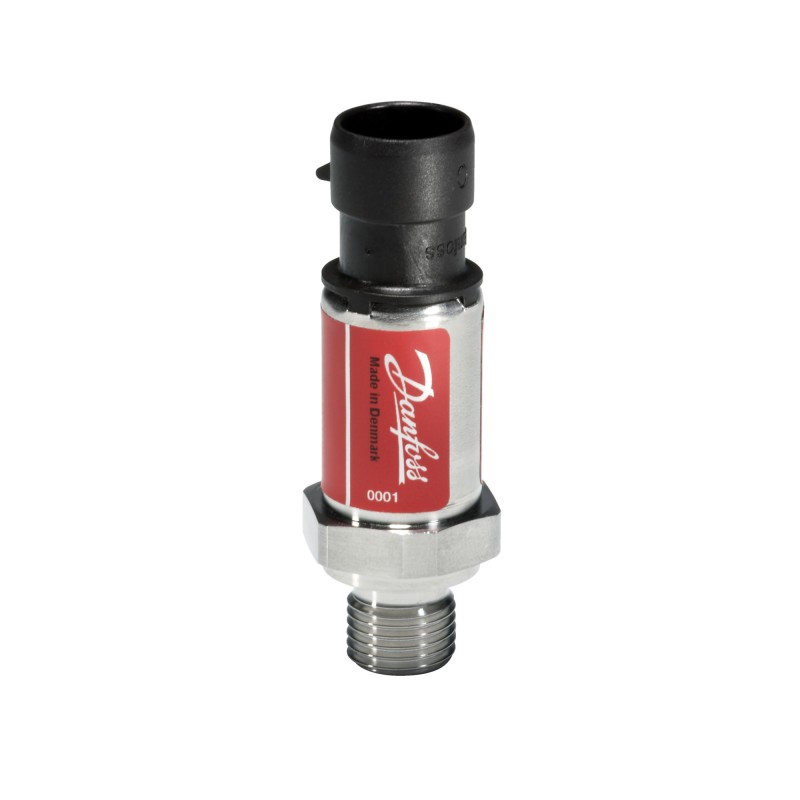

064G4032 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 8250
064G4032
DANFOSS INDUSTRIAL AUTOMATION
Pressure transmitter, MBS 8250
Pressure transmitter, MBS 8250, -1 bar - 159 bar, -14.5 psi - 2306.1 psi
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 5150, Block-type pressure transmitters with pulse snubber for marine applications - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Ratio metric, Electrical connection: Round Packard Metri-Pack, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: MBS 8250-9716-C2BC08-1
Product details
| Gross weight | 0.06 Kilogram |
| Net weight | 0.059 Kilogram |
| Volume | 0.13 Liter |
| EAN | 5702428935203 |
| Type | MBS 8250 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Gross weight | 0.06 Kilogram |
| Net weight | 0.059 Kilogram |
| Volume | 0.13 Liter |
| EAN | 5702428935203 |
| Type | MBS 8250 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy @ ref. temp. ±FS [%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 120 °C |
| Compensated temp. range [°C] [min] | -20 °C |
| Compensated temp. range [°F] [max] | 248 °F |
| Compensated temp. range [°F] [min] | -4 °F |
| Contains batteries | No |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Electrical connection size | 3 pin |
| Electrical connection standard | 150.2 SERIES |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault Monitoring Demand | No |
| Flush diaphragm | No |
| Identical product | 064G1136 |
| International Article Number | 5702428935203 |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 960 bar |
| Overload pressure max. [psi] | 13924 psi |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ISO 11926 |
| Pressure connection type | UNF |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 159 bar |
| Pressure range [bar] [min] | -1 bar |
| Pressure range [psi] [max] | 2306.1 psi |
| Pressure range [psi] [min] | -14.5 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | Yes |
| Quantity per packing format | 48 pc |
| Ratiometric of Vsupply [%] [max] | 90 % |
| Ratiometric of Vsupply [%] [min] | 10 % |
| Reference temperature [°C] | 25 °C |
| Reference temperature [°F] | 77 °F |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 8250-9716-C2BC08-1 |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| TEB inside CTR ±FS [%] | 1 % |
| TEB inside HTR ±FS [%] | 0.2 % |
| TEB inside LTR ±FS [%] | 1 % |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy @ ref. temp. ±FS [%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 120 °C |
| Compensated temp. range [°C] [min] | -20 °C |
| Compensated temp. range [°F] [max] | 248 °F |
| Compensated temp. range [°F] [min] | -4 °F |
| Contains batteries | No |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Electrical connection size | 3 pin |
| Electrical connection standard | 150.2 SERIES |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault Monitoring Demand | No |
| Flush diaphragm | No |
| Identical product | 064G1136 |
| International Article Number | 5702428935203 |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 960 bar |
| Overload pressure max. [psi] | 13924 psi |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ISO 11926 |
| Pressure connection type | UNF |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 159 bar |
| Pressure range [bar] [min] | -1 bar |
| Pressure range [psi] [max] | 2306.1 psi |
| Pressure range [psi] [min] | -14.5 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | Yes |
| Quantity per packing format | 48 pc |
| Ratiometric of Vsupply [%] [max] | 90 % |
| Ratiometric of Vsupply [%] [min] | 10 % |
| Reference temperature [°C] | 25 °C |
| Reference temperature [°F] | 77 °F |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 8250-9716-C2BC08-1 |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| TEB inside CTR ±FS [%] | 1 % |
| TEB inside HTR ±FS [%] | 0.2 % |
| TEB inside LTR ±FS [%] | 1 % |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes |
|
| PDF Types of pressure transmitters (EN).pdf | 1 Mbytes |
|
| 064G4032 064G4032 EN_064G1102.pdf | 589 Kbytes |
|
