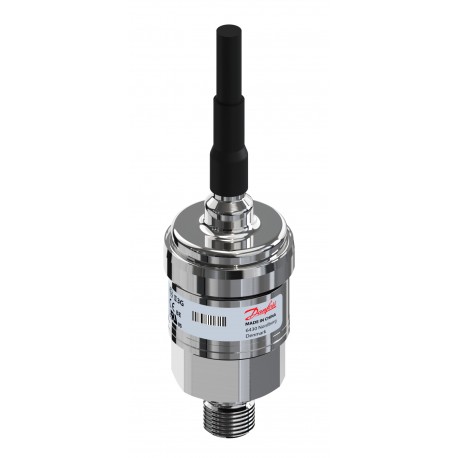

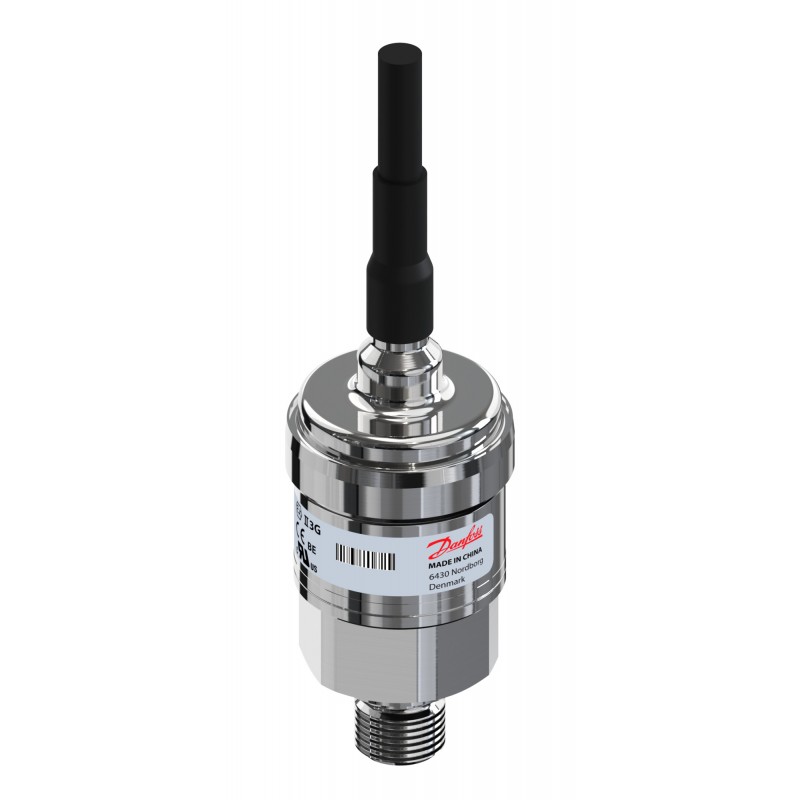

060G6152 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3250 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

060G6152 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3250

060G6152

DANFOSS INDUSTRIAL AUTOMATION

Pressure transmitter, MBS 3250

Pressure transmitter, MBS 3250, 0 bar - 400 bar, 0 psi - 5800 psi

More details


Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > Pressure transmitters for heavy duty applications Type MBS 3250 - DANFOSS INDUSTRIAL AUTOMATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Cable, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 3250-3631-DKGB04-1

Product details

Gross weight0.202 Kilogram
Net weight0.17 Kilogram
Volume1.33 Liter
EAN5702423302949
TypeMBS 3250
Product groupSensors
Product Name DescriptionPressure transmitter
Gross weight0.202 Kilogram
Net weight0.17 Kilogram
Volume1.33 Liter
EAN5702423302949
TypeMBS 3250
Product groupSensors
Product Name DescriptionPressure transmitter

+ supplyBrown
- commonBlack
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-30 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-22 °F
ApprovalATEX
CE
C UL US UL Recognized
Approval commentsATEX Ex ec IIA T4 Gc
Autofrettage Pressure1600 bar
Cable length [in]19.7 in
Cable length [m]0.5 m
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]100 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]212 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. commentsScreened
Electrical connectionCable
Enclosure rating IPIP67
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level22.4
In scope of WEEEYes
International Article Number5702423302949
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-20 °C
Medium temperature range [°F] [max]257 °F
Medium temperature range [°F] [min]-4 °F
Non-linearity BFSL [±FS%]0.2 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]1500 bar
Overload pressure max. [psi]21756 psi
Packing formatMulti pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardDIN 3852-E
ISO 1179-2 (Form E)
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]400 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]5800 psi
Pressure range [psi] [min]0 psi
Pressure referenceSealed gauge
Pulse-snubberYes
Quantity per packing format8 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyMBS 3250-3631-DKGB04-1
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
UL markYes
+ supplyBrown
- commonBlack
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-30 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-22 °F
ApprovalATEX
CE
C UL US UL Recognized
Approval commentsATEX Ex ec IIA T4 Gc
Autofrettage Pressure1600 bar
Cable length [in]19.7 in
Cable length [m]0.5 m
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]100 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]212 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. commentsScreened
Electrical connectionCable
Enclosure rating IPIP67
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level22.4
In scope of WEEEYes
International Article Number5702423302949
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-20 °C
Medium temperature range [°F] [max]257 °F
Medium temperature range [°F] [min]-4 °F
Non-linearity BFSL [±FS%]0.2 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]1500 bar
Overload pressure max. [psi]21756 psi
Packing formatMulti pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardDIN 3852-E
ISO 1179-2 (Form E)
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]400 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]5800 psi
Pressure range [psi] [min]0 psi
Pressure referenceSealed gauge
Pulse-snubberYes
Quantity per packing format8 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyMBS 3250-3631-DKGB04-1
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
UL markYes

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf 29 Mbytes
PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf 8 Mbytes
PDF Types of pressure transmitters (EN).pdf 1 Mbytes
060G6152 060G6152 EN_060G1877.pdf 833 Kbytes 060G6152 060G6152 EN_060G1877.pdf
