> DANFOSS INDUSTRIAL AUTOMATION>Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION> transmitter for general industrial purposes Type MBS 3000 >060G4079 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3000
Next Product

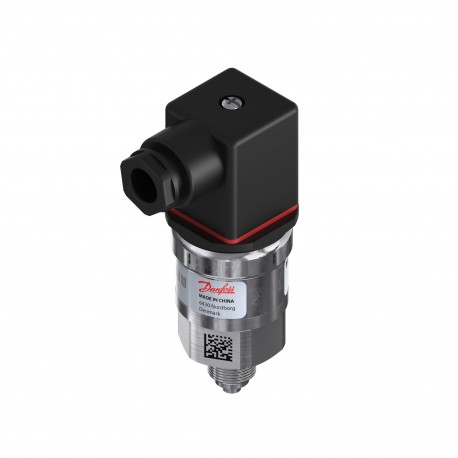

060G4079 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

060G4079 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3000

060G4079

DANFOSS INDUSTRIAL AUTOMATION

14

Pressure transmitter, MBS 3000

Pressure transmitter, MBS 3000, 0.00 bar - 10.00 bar, 0.00 psi - 145.04 psi

More details


Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > Pressure transmitter for general industrial purposes Type MBS 3000 - DANFOSS INDUSTRIAL AUTOMATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION

Total price: $1,995.19
Unit price: $142.51
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 3000-2011-A1AB04-0 I/14

Product details

Gross weight0.176 Kg
Net weight0.155 Kg
Volume0.491 Liter
EAN5702423083992
Gross weight0.176 Kg
Net weight0.155 Kg
Volume0.491 Liter
EAN5702423083992

+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX
Approval commentsATEX Ex ec IIA T4 Gc
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes
Flush diaphragmNo
High Clipping Level22.4
Identical product060G1125
In scope of WEEE and contain batteriesNo
International Article Number5702423083992
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.5 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]60 bar
Overload pressure max. [psi]870 psi
Packing formatIndustrial pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardEN 837
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]10 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]145.04 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
Specification keyMBS 3000-2011-A1AB04-0 I/14
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
Supply voltage [V] DC [min]9 V
TypeMBS 3000
+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX
Approval commentsATEX Ex ec IIA T4 Gc
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes
Flush diaphragmNo
High Clipping Level22.4
Identical product060G1125
In scope of WEEE and contain batteriesNo
International Article Number5702423083992
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.5 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]60 bar
Overload pressure max. [psi]870 psi
Packing formatIndustrial pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardEN 837
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]10 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]145.04 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
Specification keyMBS 3000-2011-A1AB04-0 I/14
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
Supply voltage [V] DC [min]9 V
TypeMBS 3000

Datasheet - PDF

▲
Title: Size: Type:
060G4079 060G4079 EN_060G1650.pdf 1 Mbytes 060G4079 060G4079 EN_060G1650.pdf
