060-122466
DANFOSS INDUSTRIAL AUTOMATION
48

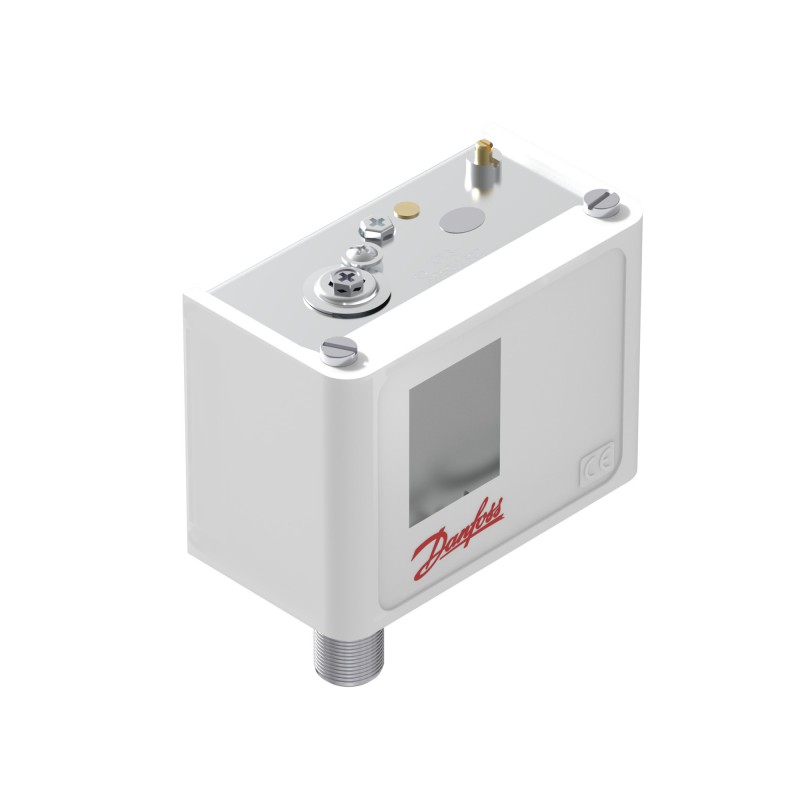

Pressure switch, KPI35
Pressure Switches - DANFOSS INDUSTRIAL AUTOMATION > Pressure switches and thermostats, type KPI - DANFOSS INDUSTRIAL AUTOMATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 0.33 Kg |
Net weight | 0.29 Kg |
EAN | 5702423146765 |
Amb. Temp. Note | 80 °C/176 °F for max 120 min |
Ambient temperature range [°C] [Max] | 65 °C |
Ambient temperature range [°C] [Min] | -40 °C |
Ambient temperature range [°F] [Max] | 149 °F |
Ambient temperature range [°F] [Min] | -40 °F |
Approval | CCC CE EAC LVD PZH RINA RoHS China c UL us UL873, CS C22.2 |
Contact function | SPDT |
Contact rating | AC15=4 A, 440 V DC13=12 W, 220 V AC1=10 A, 440 V AC3=6 A, 440 V LR=36A, 240V LR=48A, 120V |
Differential [bar] [Max] | 2 bar |
Differential [bar] [Min] | 0.5 bar |
Differential [psi] [Max] | 29 psi |
Differential [psi] [Min] | 7 psi |
Electrical connection | Rubber cable gland |
Electrical connection size | 6-14 mm |
EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
Enclosure rating IP | IP30 |
Enclosure rating Nema (~) | 1 |
Identical product | 060-121966 |
Max. test pressure [bar] Pe | 18 bar |
Max. test pressure [psig] | 261 psig |
Max. Working Pressure [bar] | 18 bar |
Max. Working Pressure [psig] | 261 psig |
Packing format | Industrial pack |
Pressure connection size | 1/4 |
Pressure connection standard | ISO 228-1 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range category | Low pressure |
Pressure sensing element | Bellows |
Product accessories | Switches accessories |
Product description | Pressure Switch |
Product Group | Switches and thermostats |
Product name | Pressure switch |
Product type | KPI35 |
Quantity per packing format | 48 pc |
Regulation range | 6 inHg - 116 psig |
Regulation range [bar] Pe [Max] | 8 bar |
Regulation range [bar] Pe [Min] | -0.2 bar |
Reset function | Auto |
Serviceable | No |
UL approval file name | E31024 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN.pdf | 28 Mbytes | |
PDF CATALOG DANFOSS PRESSURE SWITCH EN.pdf | 6 Mbytes |
