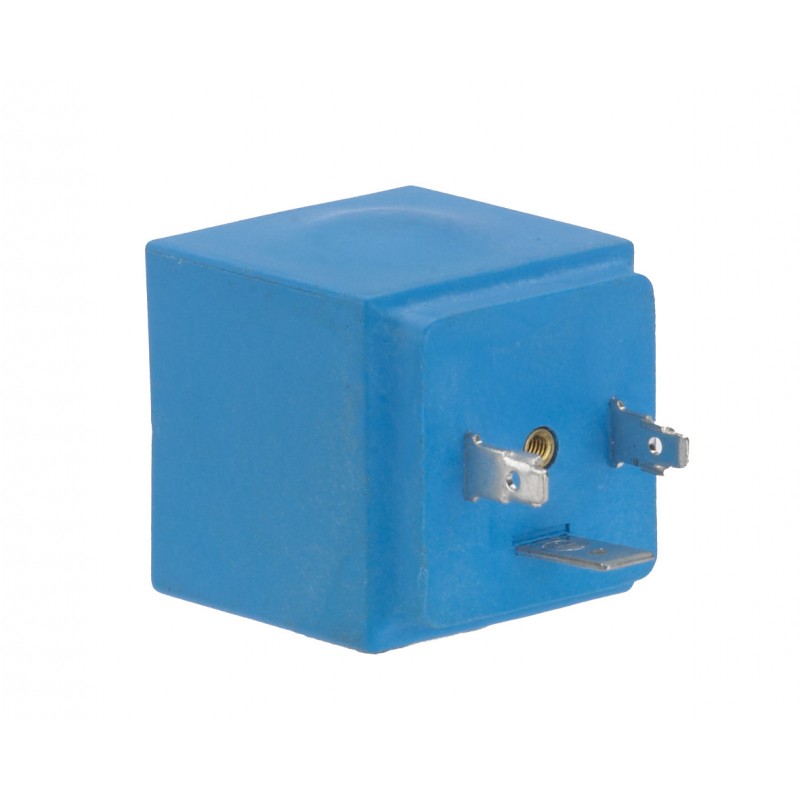

042N7616 DANFOSS CONTROLES INDUSTRIALES Solenoid coil, AZ012DS, DIN Spade, Multi pack
042N7616
DANFOSS INDUSTRIAL AUTOMATION
Solenoid coil, AZ012DS, DIN Spade, Multi pack
Solenoid coil, AZ012DS, DIN Spade, Supply voltage [V] DC: 12, Multi pack
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Coils for valves and Accessories - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Electrical connection: DIN Spade, Supply voltage [V] DC: 12, Enclosure rating IP: IP00
Product details
| Gross weight | 0.126 Kilogram |
| Net weight | 0.113 Kilogram |
| Volume | 0.092 Liter |
| EAN | 5702428971119 |
| Type | AZ012DS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 0.126 Kilogram |
| Net weight | 0.113 Kilogram |
| Volume | 0.092 Liter |
| EAN | 5702428971119 |
| Type | AZ012DS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 9 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil design standard | UL 429 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV220T EV220S |
| Power consumption [W] DC | 6 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Supply voltage [V] DC | 12 V |
| Type designation | AZ012DS |
| Actuator size | 9 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil design standard | UL 429 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV220T EV220S |
| Power consumption [W] DC | 6 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Supply voltage [V] DC | 12 V |
| Type designation | AZ012DS |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF Directional Control Valves Technical Information EN.pdf | 8 Mbytes |
|
| PDF Solenoid valves overview 2024 EN.pdf | 2 Mbytes |
|
| PDF solenoid valves EN.pdf | 2 Mbytes |
|
| 042N7616 042N7616 IT_018F6906.pdf | 868 Kbytes |
|
