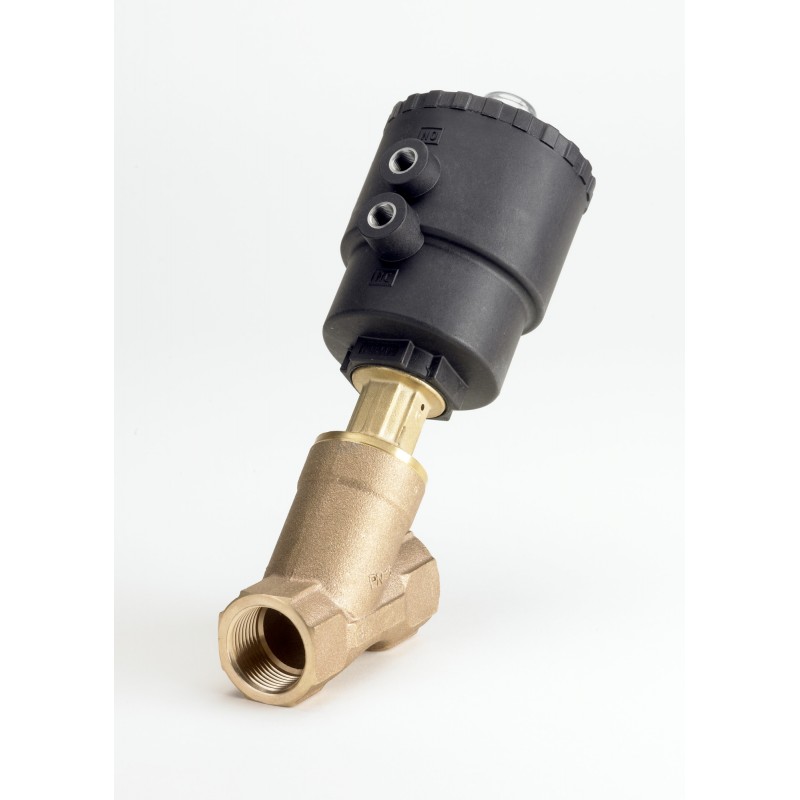

042N4506 DANFOSS CONTROLES INDUSTRIALES Angle-seat ext operated valve, AV210C
042N4506
DANFOSS INDUSTRIAL AUTOMATION
Angle-seat ext operated valve, AV210C
Angle-seat ext operated valve, AV210C, NPT, 1, PTFE, Function: NC
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Externally operated valves, Type AV210 - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Body material: Bronze
Product details
| Gross weight | 2.152 Kilogram |
| Net weight | 1.652 Kilogram |
| Volume | 4.2 Liter |
| EAN | 5702423194261 |
| Type | AV210C |
| Product group | Externally operated valves |
| Product Name Description | Angle-seat ext operated valve |
| Gross weight | 2.152 Kilogram |
| Net weight | 1.652 Kilogram |
| Volume | 4.2 Liter |
| EAN | 5702423194261 |
| Type | AV210C |
| Product group | Externally operated valves |
| Product Name Description | Angle-seat ext operated valve |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Body material | Bronze |
| China RoHS compliance | Out of scope |
| Closing | Against flow |
| Connection Internal/External | Internal |
| Connection size [in] | 1 |
| Connection type | NPT |
| Contains batteries | No |
| Control head diameter [mm] | 63 mm |
| Control pressure range [bar] [max] | 10 bar |
| Control pressure range [bar] [min] | 4 bar |
| Control pressure range [psig] [max] | 145 psig |
| Control pressure range [psig] [min] | 58 psig |
| Cv value [gal/min] | 23.1 gal/min |
| Differential pressure [bar] [max] | 11 bar |
| Differential pressure [bar] [min] | 0 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Out of scope |
| Function | NC |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 20 m³/h |
| Max. test pressure [bar] | 24 bar |
| Max. test pressure [psig] | 348 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Medium temperature range [°C] [max] | 180 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 356 °F |
| Medium temperature range [°F] [min] | -22 °F |
| Operation | Piston (angle) |
| Orifice size [mm] | 25 mm |
| Packing format | Multi pack |
| Product accessories | Ext. operat. valve accessories |
| Quantity per packing format | 4 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 0a1684e1-9b13-4d79-ae59-ca9cab611349 |
| SCIP dossier product name | AV210 |
| Seal Material | PTFE |
| Serviceable | Ext. operat. valve spare parts |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Body material | Bronze |
| China RoHS compliance | Out of scope |
| Closing | Against flow |
| Connection Internal/External | Internal |
| Connection size [in] | 1 |
| Connection type | NPT |
| Contains batteries | No |
| Control head diameter [mm] | 63 mm |
| Control pressure range [bar] [max] | 10 bar |
| Control pressure range [bar] [min] | 4 bar |
| Control pressure range [psig] [max] | 145 psig |
| Control pressure range [psig] [min] | 58 psig |
| Cv value [gal/min] | 23.1 gal/min |
| Differential pressure [bar] [max] | 11 bar |
| Differential pressure [bar] [min] | 0 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Out of scope |
| Function | NC |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 20 m³/h |
| Max. test pressure [bar] | 24 bar |
| Max. test pressure [psig] | 348 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Medium temperature range [°C] [max] | 180 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 356 °F |
| Medium temperature range [°F] [min] | -22 °F |
| Operation | Piston (angle) |
| Orifice size [mm] | 25 mm |
| Packing format | Multi pack |
| Product accessories | Ext. operat. valve accessories |
| Quantity per packing format | 4 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 0a1684e1-9b13-4d79-ae59-ca9cab611349 |
| SCIP dossier product name | AV210 |
| Seal Material | PTFE |
| Serviceable | Ext. operat. valve spare parts |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF Directional Control Valves Technical Information EN.pdf | 8 Mbytes |
|
| PDF Solenoid valves overview 2024 EN.pdf | 2 Mbytes |
|
| PDF solenoid valves EN.pdf | 2 Mbytes |
|
| 042N4506 042N4506 IT_042N4452.pdf | 2 Mbytes |
|
