032U7468
DANFOSS INDUSTRIAL AUTOMATION
1

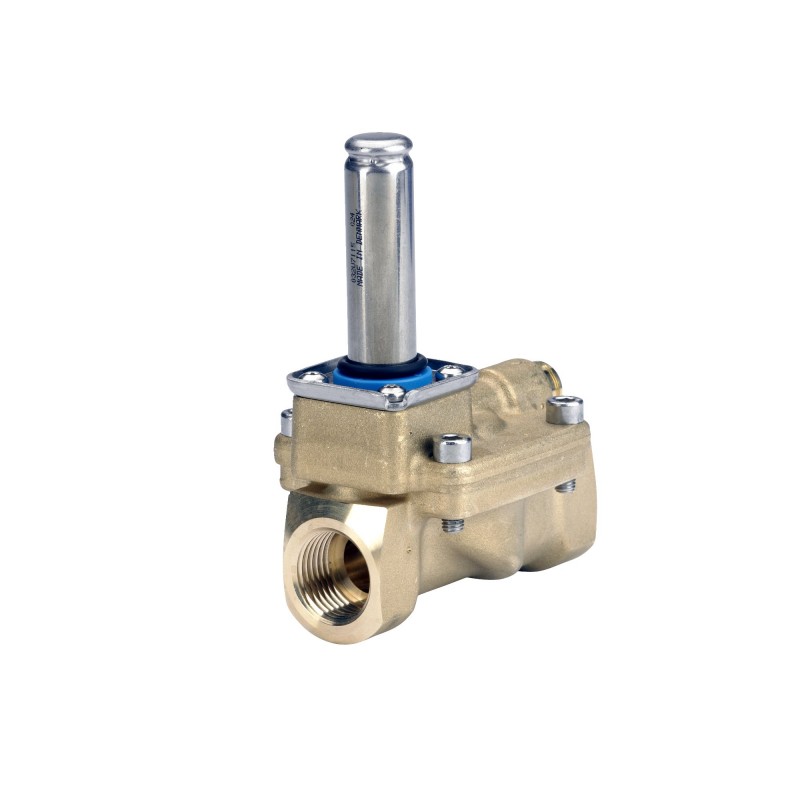

Solenoid valve, EV228B
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Solenoid valves, 2/2-way servo operated type EV225B - DANFOSS CONTROLES INDUSTRIALES
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 0.73 Kg |
Net weight | 0 Kg |
EAN | 5702428047708 |
Actuator | B |
Actuator size | 13.5 mm |
Actuator size [in] | 0.53 in |
Actuator system [mm] | 13.5 mm |
Ambient temperature max. [°C] | 50 °C |
Ambient temperature max. [°F] | 122 °F |
Body material | DZR brass |
Connection Internal/External | Internal |
Connection material | DZR brass |
Connection size [in] | 1/2 |
Connection standard | ISO 228-1 |
Connection type | G |
Cv value [gal/min] | 4.6 gal/min |
Differential pressure [bar] [Max] | 10 bar |
Differential pressure [bar] [Min] | 0.3 bar |
Differential pressure [psi] [Max] | 145 psi |
Differential pressure [psi] [Min] | 4.35 psi |
Est. time to close, water [ms] | 350 ms |
Est. time to open, water [ms] | 40 ms |
Flow direction indicator | Embossed 1-way arrow |
Function | UN |
Kv value [m³/h] | 4 m3/h |
Max media viscosity [cSt] | 50 cSt |
Max. test pressure [bar] | 15 bar |
Max. test pressure [psig] | 217.5 psig |
Max. Working Pressure [bar] | 10 bar |
Max. Working Pressure [psig] | 145 psig |
Media recommendations | Technical water |
Medium temperature range [°C] [Max] | 60 °C |
Medium temperature range [°C] [Min] | 0 °C |
Medium temperature range [°F] [Max] | 140 °F |
Medium temperature range [°F] [Min] | 32 °F |
Number of ways | 2/2 |
Operation | Latching |
Orifice size [mm] | 15 mm |
Orifice size fraction [in] | 5/8 in |
Packing format | Multi pack |
Product Group | Solenoid valves |
Product name | Solenoid valve |
Product type | EV228B |
Quantity per packing format | 24 pc |
Seal Material | EPDM |
Specification key | EV228B 15B G 12E UN000 |
Type designation | EV228B 15 |
Valve operation | SERVO-DIAPHRAGM |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN.pdf | 28 Mbytes |
