032U537431
DANFOSS INDUSTRIAL AUTOMATION
1

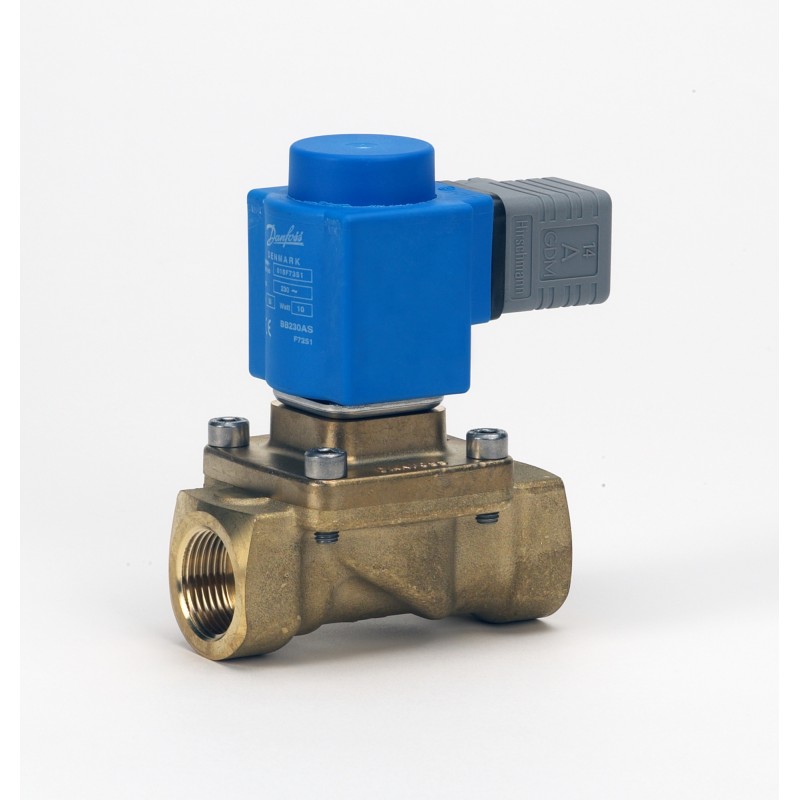

Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Solenoid valves, 2/2-way assisted lift operated solenoid valve type EV250B - DANFOSS INDUSTRIAL AUTOMATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Approval: SINTEF; PZH; CE; UKCA, Body material: DZR brass, Operation: Assisted lift operated, Number of ways: 2/2
Gross weight | 1.152 Kg |
Net weight | 1.068 Kg |
Volume | 1.302 Liter |
EAN | 5702423218080 |
Gross weight | 1.152 Kg |
Net weight | 1.068 Kg |
Volume | 1.302 Liter |
EAN | 5702423218080 |
Actuator | B |
Actuator size | 13.5 mm |
Actuator size [in] | 0.53 in |
Actuator system [mm] | 13.5 mm |
Ambient temperature max. [°C] | 80 °C |
Ambient temperature max. [°F] | 176 °F |
Application | Closed and Drain |
Approval | SINTEF PZH CE UKCA |
Body material | DZR brass |
Coil option | Clip-on |
Coil type | BB |
Connection Internal/External | Internal |
Connection material | DZR brass |
Connection size [in] | 3/4 |
Connection standard | ISO 228-1 |
Connection type | G |
Cv value [gal/min] | 5.7 gal/min |
Differential pressure [bar] [max] | 10 bar |
Differential pressure [bar] [min] | 0 bar |
Differential pressure [psi] [max] | 145 psi |
Differential pressure [psi] [min] | 0 psi |
Electrical connection | Spade DIN 43650-A |
Enclosure rating IP | IP65 |
Est. time to close, water [ms] | 100 ms |
Est. time to open, water [ms] | 150 ms |
EU RoHS compliance | Yes with exemptions |
Fluid Group | 1 |
Frequency [Hz] | 50 Hz |
Function | NO |
In scope of WEEE and contain batteries | No |
Kv value [m³/h] | 4.9 m³/h |
Max media viscosity [cSt] | 50 cSt |
Max. test pressure [bar] | 15 bar |
Max. test pressure [psig] | 217.5 psig |
Max. Working Pressure [bar] | 10 bar |
Max. Working Pressure [psig] | 145 psig |
Media recommendations | Technical & Soft Water |
Media tolerance comments | -30–120 °C: 0–10 bar 120–140 °C: 0–4 bar Slightly aggressive media |
Medium temperature range [°C] [max] | 120 °C |
Medium temperature range [°C] [min] | -30 °C |
Medium temperature range [°F] [max] | 248 °F |
Medium temperature range [°F] [min] | -22 °F |
Number of ways | 2/2 |
Operation | Assisted lift operated |
Orifice size [mm] | 18 mm |
Orifice size fraction [in] | 3/4 in |
Packing format | Multi pack |
Parts Program name | EV250B |
Power consumption [W] 50Hz | 11 W |
Product accessories | Solenoid coil accessories Solenoid valve accessories |
Product group | Solenoid valves |
Product Name Description | Solenoid valve |
Quantity per packing format | 12 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
SCIP dossier no. | d367528f-afd7-4ce7-98d3-93a4c38934b8 |
Seal Material | EPDM |
Serviceable | Solenoid valve spare parts |
Specification key | EV250B 18BD G 34E NO000 BB230A |
Supply voltage 50Hz Max [V] | 230 V |
Supply voltage [V] AC | 230 V |
Type | EV250B |
Type designation | EV250B 18 |
Actuator | B |
Actuator size | 13.5 mm |
Actuator size [in] | 0.53 in |
Actuator system [mm] | 13.5 mm |
Ambient temperature max. [°C] | 80 °C |
Ambient temperature max. [°F] | 176 °F |
Application | Closed and Drain |
Approval | SINTEF PZH CE UKCA |
Body material | DZR brass |
Coil option | Clip-on |
Coil type | BB |
Connection Internal/External | Internal |
Connection material | DZR brass |
Connection size [in] | 3/4 |
Connection standard | ISO 228-1 |
Connection type | G |
Cv value [gal/min] | 5.7 gal/min |
Differential pressure [bar] [max] | 10 bar |
Differential pressure [bar] [min] | 0 bar |
Differential pressure [psi] [max] | 145 psi |
Differential pressure [psi] [min] | 0 psi |
Electrical connection | Spade DIN 43650-A |
Enclosure rating IP | IP65 |
Est. time to close, water [ms] | 100 ms |
Est. time to open, water [ms] | 150 ms |
EU RoHS compliance | Yes with exemptions |
Fluid Group | 1 |
Frequency [Hz] | 50 Hz |
Function | NO |
In scope of WEEE and contain batteries | No |
Kv value [m³/h] | 4.9 m³/h |
Max media viscosity [cSt] | 50 cSt |
Max. test pressure [bar] | 15 bar |
Max. test pressure [psig] | 217.5 psig |
Max. Working Pressure [bar] | 10 bar |
Max. Working Pressure [psig] | 145 psig |
Media recommendations | Technical & Soft Water |
Media tolerance comments | -30–120 °C: 0–10 bar 120–140 °C: 0–4 bar Slightly aggressive media |
Medium temperature range [°C] [max] | 120 °C |
Medium temperature range [°C] [min] | -30 °C |
Medium temperature range [°F] [max] | 248 °F |
Medium temperature range [°F] [min] | -22 °F |
Number of ways | 2/2 |
Operation | Assisted lift operated |
Orifice size [mm] | 18 mm |
Orifice size fraction [in] | 3/4 in |
Packing format | Multi pack |
Parts Program name | EV250B |
Power consumption [W] 50Hz | 11 W |
Product accessories | Solenoid coil accessories Solenoid valve accessories |
Product group | Solenoid valves |
Product Name Description | Solenoid valve |
Quantity per packing format | 12 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
SCIP dossier no. | d367528f-afd7-4ce7-98d3-93a4c38934b8 |
Seal Material | EPDM |
Serviceable | Solenoid valve spare parts |
Specification key | EV250B 18BD G 34E NO000 BB230A |
Supply voltage 50Hz Max [V] | 230 V |
Supply voltage [V] AC | 230 V |
Type | EV250B |
Type designation | EV250B 18 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN.pdf | 28 Mbytes |
