032U458531
DANFOSS INDUSTRIAL AUTOMATION
1

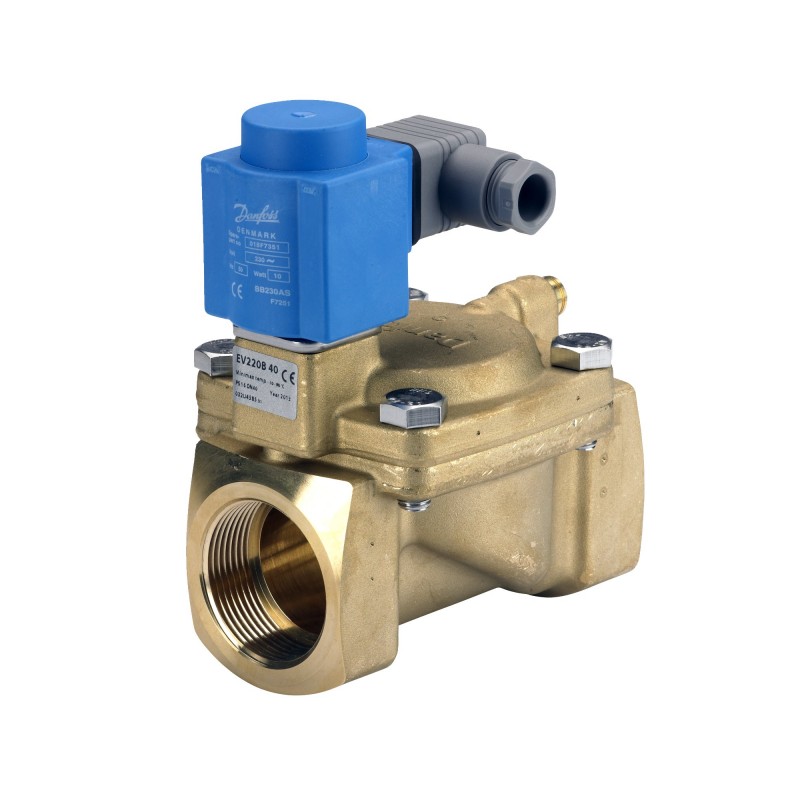

EV220B, Solenoid valve, G, NC, NBR
Solenoid Valve, EV220B, Function: NC, G, 1 1/2, 24,000 m³/h, NBR
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Solenoid valves, 2/2-way servo-operated type EV220B 6-22 - DANFOSS INDUSTRIAL AUTOMATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 3.64 Kg |
Net weight | 2.95 Kg |
EAN | 5702423187003 |
Actuator | B |
Actuator size | 13.5 mm |
Actuator size [in] | 0.53 in |
Actuator system [mm] | 13.5 mm |
Ambient temperature max. [°C] | 80 °C |
Ambient temperature max. [°F] | 176 °F |
Body material | Brass |
Coil option | Clip-on |
Coil type | BB |
Connection Internal/External | Internal |
Connection material | Brass |
Connection size [in] | 1 1/2 |
Connection standard | ISO 228-1 |
Connection type | G |
Cv value [gal/min] | 27.7 gal/min |
Differential pressure [bar] [Max] | 12 bar |
Differential pressure [bar] [Min] | 0.3 bar |
Differential pressure [psi] [Max] | 174 psi |
Differential pressure [psi] [Min] | 4.35 psi |
Electrical connection | Spade DIN 43650-A |
Enclosure rating IP | IP65 |
Est. time to close, water [ms] | 4000 ms |
Est. time to open, water [ms] | 1500 ms |
Flow direction | Single-flow |
Flow direction indicator | Embossed 1-way arrow |
Fluid Group | I |
Frequency [Hz] | 50 Hz |
Function | NC |
Kv value [m³/h] | 24 m3/h |
Max media viscosity [cSt] | 50 cSt |
Max. test pressure [bar] | 18 bar |
Max. test pressure [psig] | 261 psig |
Max. Working Pressure [bar] | 12 bar |
Max. Working Pressure [psig] | 174 psig |
Media recommendations | Compressed air Oil Water Steam Gases |
Media tolerance comments | Neutral media |
Medium temperature range [°C] [Max] | 90 °C |
Medium temperature range [°C] [Min] | -10 °C |
Medium temperature range [°F] [Max] | 194 °F |
Medium temperature range [°F] [Min] | 14 °F |
Number of ways | 2/2 |
Open/close equalizing orifice | Optional Equalization orifice |
Operation | Servo-operated (diaphragm) |
Orifice size [mm] | 40 mm |
Orifice size fraction [in] | 1 1/2 in |
Packing format | Single pack |
Parts Program name | EV220B 15 - 50 |
Power consumption [W] 50Hz | 11 W |
Product accessories | Solenoid coil accessories Solenoid valve accessories |
Product Group | Solenoid valves |
Product name | Solenoid valve |
Product type | EV220B |
Quantity per packing format | 1 pc |
Seal Material | NBR |
Serviceable | Solenoid valve spare parts |
Specification key | EV220B 40B G 112N NC000 BB230A |
Supply voltage 50Hz Max [V] | 230 V |
Supply voltage [V] a.c. | 230 V |
Supply voltage [V] AC | 230 V |
Type designation | EV220B 40 |
Valve operation | SERVO-DIAPHRAGM |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN.pdf | 28 Mbytes |
