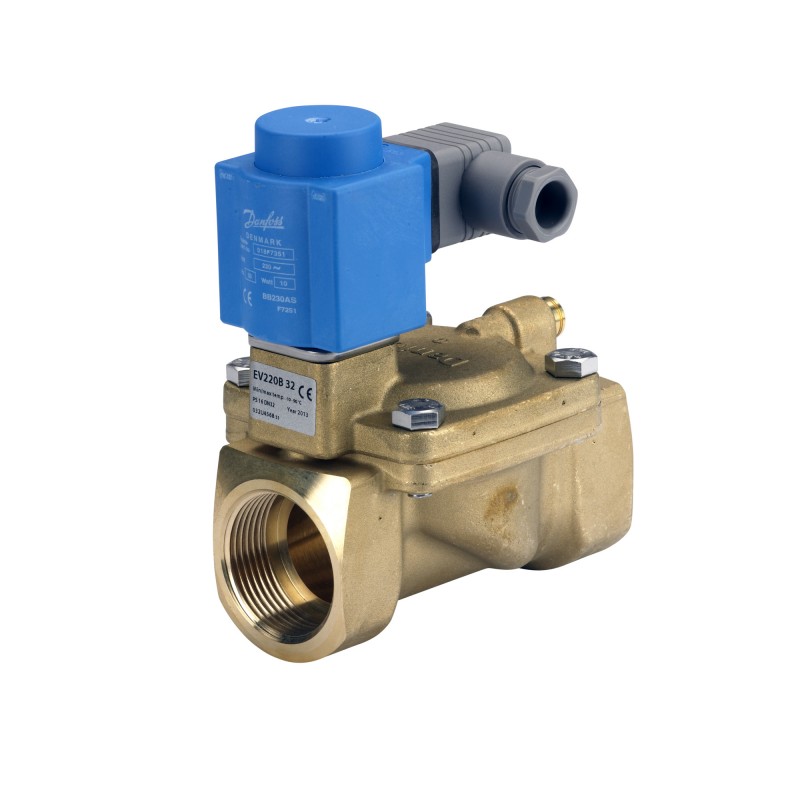

032U456802 DANFOSS CONTROLES INDUSTRIALES EV220B, Solenoid valve, G, NC, NBR
032U456802
DANFOSS INDUSTRIAL AUTOMATION
EV220B, Solenoid valve, G, NC, NBR
Solenoid valve, EV220B, Function: NC, G, 1 1/4, 18 m³/h, NBR
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Solenoid valves, 2/2-way servo-operated type EV220B 6-22 - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Media recommendations: Water,Brine,Oil,Air, Approval: DNVGL-CG-0339; CE, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Product details
| Gross weight | 2.623 Kilogram |
| Net weight | 2.223 Kilogram |
| Volume | 7.334 Liter |
| EAN | 5702423198511 |
| Type | EV220B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 2.623 Kilogram |
| Net weight | 2.223 Kilogram |
| Volume | 7.334 Liter |
| EAN | 5702423198511 |
| Type | EV220B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Open |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Coil option | Clip-on |
| Coil type | BB |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1 1/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 20.8 gal/min |
| Differential pressure [bar] [max] | 12 bar |
| Differential pressure [bar] [min] | 0.3 bar |
| Differential pressure [psi] [max] | 174 psi |
| Differential pressure [psi] [min] | 4.35 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 2500 ms |
| Est. time to open, water [ms] | 1000 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 18 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 12 bar |
| Max. Working Pressure [psig] | 174 psig |
| Media recommendations | Water,Brine,Oil,Air |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [max] | 90 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 194 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Open/close equalizing orifice | Optional Equalization orifice |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 32 mm |
| Orifice size fraction [in] | 1 1/4 in |
| Packing format | Single pack |
| Parts Program name | EV220B 15 - 50 |
| Power consumption [W] DC | 16 W |
| Product accessories | Solenoid coil accessories Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b8af40bc-3f7f-4177-bd55-c3503cccfc04 |
| SCIP dossier product name | EV220B 15-50 brass NC - solenoid valve |
| Seal Material | NBR |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV220B 32B G 114N NC000 BB024D |
| Supply voltage [V] DC | 24 V |
| Type designation | EV220B 32 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Open |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Coil option | Clip-on |
| Coil type | BB |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1 1/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 20.8 gal/min |
| Differential pressure [bar] [max] | 12 bar |
| Differential pressure [bar] [min] | 0.3 bar |
| Differential pressure [psi] [max] | 174 psi |
| Differential pressure [psi] [min] | 4.35 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 2500 ms |
| Est. time to open, water [ms] | 1000 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 18 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 12 bar |
| Max. Working Pressure [psig] | 174 psig |
| Media recommendations | Water,Brine,Oil,Air |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [max] | 90 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 194 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Open/close equalizing orifice | Optional Equalization orifice |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 32 mm |
| Orifice size fraction [in] | 1 1/4 in |
| Packing format | Single pack |
| Parts Program name | EV220B 15 - 50 |
| Power consumption [W] DC | 16 W |
| Product accessories | Solenoid coil accessories Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b8af40bc-3f7f-4177-bd55-c3503cccfc04 |
| SCIP dossier product name | EV220B 15-50 brass NC - solenoid valve |
| Seal Material | NBR |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV220B 32B G 114N NC000 BB024D |
| Supply voltage [V] DC | 24 V |
| Type designation | EV220B 32 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF Directional Control Valves Technical Information EN.pdf | 8 Mbytes |
|
| PDF Solenoid valves overview 2024 EN.pdf | 2 Mbytes |
|
| PDF solenoid valves EN.pdf | 2 Mbytes |
|
| 032U456802 032U456802 EN_032U1082.pdf | 3 Mbytes |
|
