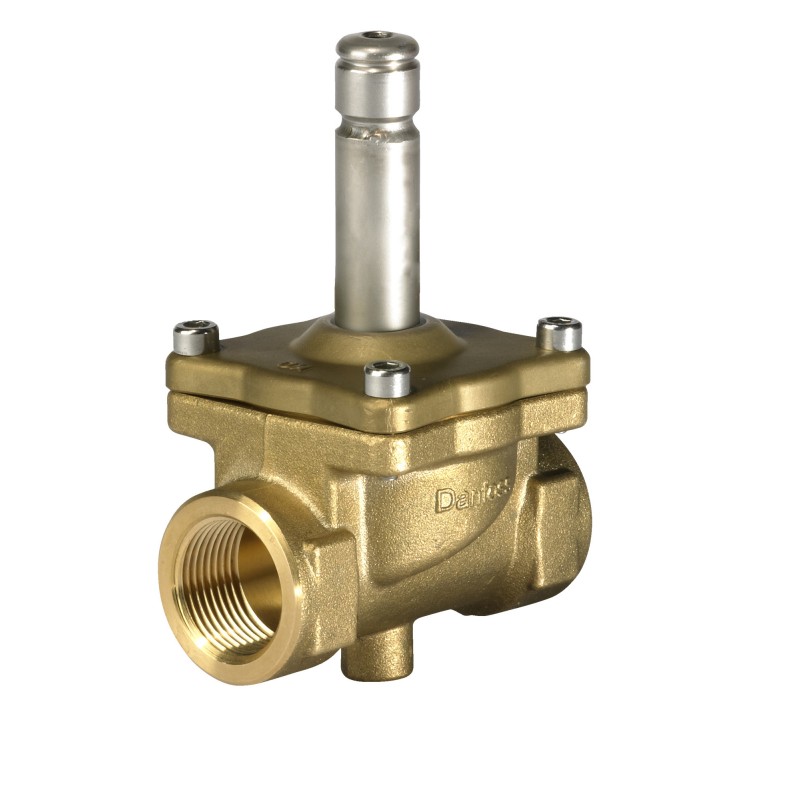

032U3853 DANFOSS CONTROLES INDUSTRIALES Solenoid valve, EV245B
032U3853
DANFOSS INDUSTRIAL AUTOMATION
Solenoid valve, EV245B
Solenoid valve, EV245B, Function: NC, G, 3/4, 5.500 m³/h, PTFE
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Solenoid valves, 2/2-way assisted lift operated solenoid valve type EV250B - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Body material: Brass, Operation: Servo-operated (piston), Number of ways: 2/2
Product details
| Gross weight | 0.825 Kg |
| Net weight | 0.778 Kg |
| Volume | 1.249 Liter |
| EAN | 5702428481649 |
| Gross weight | 0.825 Kg |
| Net weight | 0.778 Kg |
| Volume | 1.249 Liter |
| EAN | 5702428481649 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 40 °C |
| Ambient temperature max. [°F] | 104 °F |
| Application | Open |
| Body material | Brass |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 6.4 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [min] | 0.1 bar |
| Differential pressure [psi] [max] | 145 psi |
| Differential pressure [psi] [min] | 1.45 psi |
| Est. time to close, water [ms] | 2000 ms |
| Est. time to open, water [ms] | 200 ms |
| EU RoHS compliance | Yes with exemptions |
| Fluid Group | 1 |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 5.5 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media recommendations | Steam |
| Medium temperature range [°C] [max] | 185 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 365 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (piston) |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 3/4 in |
| Packing format | Multi pack |
| Parts Program name | EV245B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Seal Material | PTFE |
| Specification key | EV245B 20B G 34T NC000 |
| Type | EV245B |
| Type designation | EV245B 20 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 40 °C |
| Ambient temperature max. [°F] | 104 °F |
| Application | Open |
| Body material | Brass |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 6.4 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [min] | 0.1 bar |
| Differential pressure [psi] [max] | 145 psi |
| Differential pressure [psi] [min] | 1.45 psi |
| Est. time to close, water [ms] | 2000 ms |
| Est. time to open, water [ms] | 200 ms |
| EU RoHS compliance | Yes with exemptions |
| Fluid Group | 1 |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 5.5 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media recommendations | Steam |
| Medium temperature range [°C] [max] | 185 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 365 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (piston) |
| Orifice size [mm] | 20 mm |
| Orifice size fraction [in] | 3/4 in |
| Packing format | Multi pack |
| Parts Program name | EV245B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Seal Material | PTFE |
| Specification key | EV245B 20B G 34T NC000 |
| Type | EV245B |
| Type designation | EV245B 20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF Directional Control Valves Technical Information EN.pdf | 8 Mbytes |
|
| PDF Solenoid valves overview 2024 EN.pdf | 2 Mbytes |
|
| PDF solenoid valves EN.pdf | 2 Mbytes |
|
