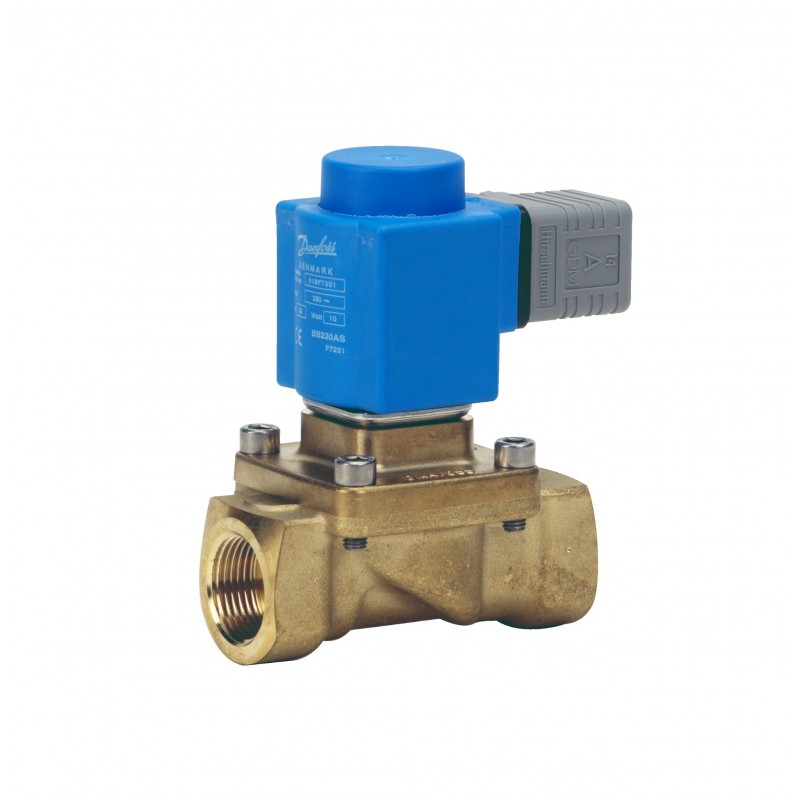

032U161431 DANFOSS CONTROLES INDUSTRIALES Solenoid valve, EV250B
032U161431
DANFOSS INDUSTRIAL AUTOMATION
Solenoid valve, EV250B
Solenoid Valve, EV250B, Function: NC, G, 3/4, 6,000 m³/h, EPDM
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Solenoid valves, 2/2-way assisted lift operated solenoid valve type EV250B - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲| Gross weight | 1.16 Kg |
| Net weight | 1.11 Kg |
| EAN | 5702423186921 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Approval | EAC PED PZH SINTEF UL WRAS |
| Body material | DZR brass |
| Coil option | Clip-on |
| Coil type | BB |
| Connection Internal/External | Internal |
| Connection material | DZR brass |
| Connection size [in] | 3/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 6.95 gal/min |
| Differential pressure [bar] [Max] | 10 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 0 psi |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 100 ms |
| Est. time to open, water [ms] | 150 ms |
| Fluid Group | I |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| Further information | Can be used for rough vacuum |
| Kv value [m³/h] | 6 m3/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media recommendations | Technical water |
| Media tolerance comments | -30–120 °C: 0–10 bar 120–140 °C: 0–4 bar Slightly aggressive media |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -30 °C |
| Medium temperature range [°F] [Max] | 248 °F |
| Medium temperature range [°F] [Min] | -22 °F |
| Number of ways | 2/2 |
| Operation | Assisted lift operated |
| Orifice size [mm] | 18 mm |
| Orifice size fraction [in] | 3/4 in |
| Packing format | Multi pack |
| Parts Program name | EV250B |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories Solenoid valve accessories |
| Product Group | Solenoid valves |
| Product name | Solenoid valve |
| Product type | EV250B |
| Quantity per packing format | 12 pc |
| Seal Material | EPDM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV250B 18BD G 34E NC000 BB230A |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage [V] a.c. | 230 V |
| Supply voltage [V] AC | 230 V |
| Type designation | EV250B 18 |
| Valve operation | SERVO-DIAPHRAGM |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF Directional Control Valves Technical Information EN.pdf | 8 Mbytes |
|
| PDF Solenoid valves overview 2024 EN.pdf | 2 Mbytes |
|
| PDF solenoid valves EN.pdf | 2 Mbytes |
|
