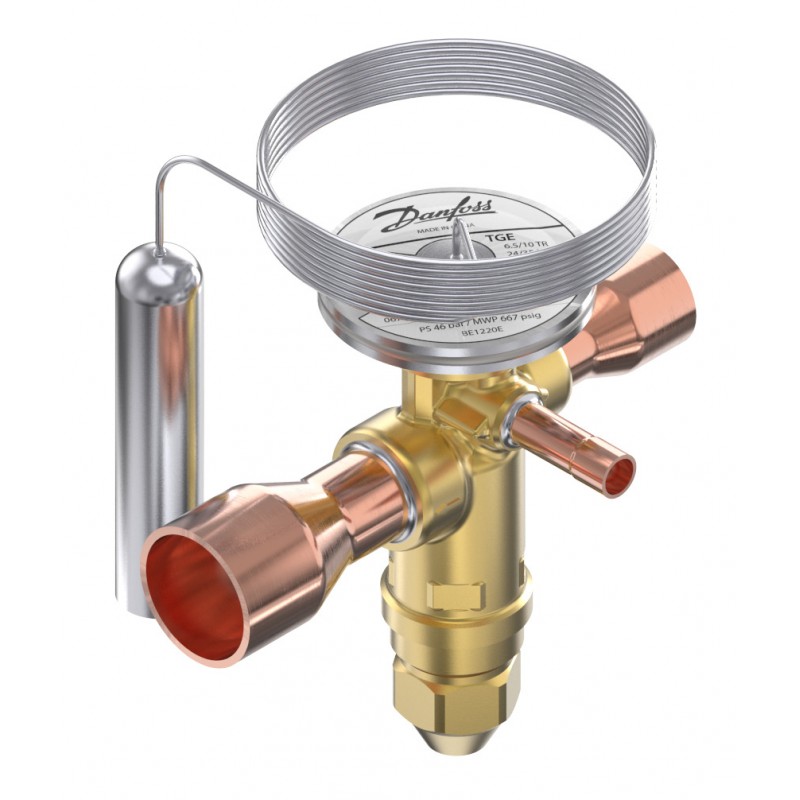

067N3180 DANFOSS HEATING Temperature range [°C]: -40 10, Orifice capacities [kW]: 54, Orifice capacities [TR..
067N3180
DANFOSS HEATING
Temperature range [°C]: -40 - 10, Orifice capacities [kW]: 54, Orifice capacities [TR]: 15, Pressure equalization: Externally equalized
Thermostatic expansion valve, TGE, R410A
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Temperature range [°C]: -40 - 10, Orifice capacities [kW]: 54, Orifice capacities [TR]: 15, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.725 Kilogram |
| Net weight | 0.633 Kilogram |
| Volume | 2.553 Liter |
| EAN | 5702428141154 |
| Type | TGE |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Gross weight | 0.725 Kilogram |
| Net weight | 0.633 Kilogram |
| Volume | 2.553 Liter |
| EAN | 5702428141154 |
| Type | TGE |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| China RoHS compliance | Out of scope |
| Connection material | Copper |
| Contains batteries | No |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Out of scope |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Identical product | 067N3160 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 5/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 54 kW |
| Orifice capacities [TR] | 15 TR |
| Orifice size | 12,5 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 1/8 in |
| Packing format | Industrial pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 8 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 °F tevap=40 °F tliq=98 °F |
| Rated cap. cond. Range N [SI] | tcond=38 °C tevap=4.4 °C tliq=37 °C |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R410A |
| SCIP dossier no. | d44ec740-dfe8-4c0a-9644-96406f010504 |
| SCIP dossier product name | TGE |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| UL approved refrigerants | R410A |
| UL evaluated | Yes |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| China RoHS compliance | Out of scope |
| Connection material | Copper |
| Contains batteries | No |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Out of scope |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Identical product | 067N3160 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 5/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 54 kW |
| Orifice capacities [TR] | 15 TR |
| Orifice size | 12,5 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 1/8 in |
| Packing format | Industrial pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 8 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 °F tevap=40 °F tliq=98 °F |
| Rated cap. cond. Range N [SI] | tcond=38 °C tevap=4.4 °C tliq=37 °C |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R410A |
| SCIP dossier no. | d44ec740-dfe8-4c0a-9644-96406f010504 |
| SCIP dossier product name | TGE |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| UL approved refrigerants | R410A |
| UL evaluated | Yes |
