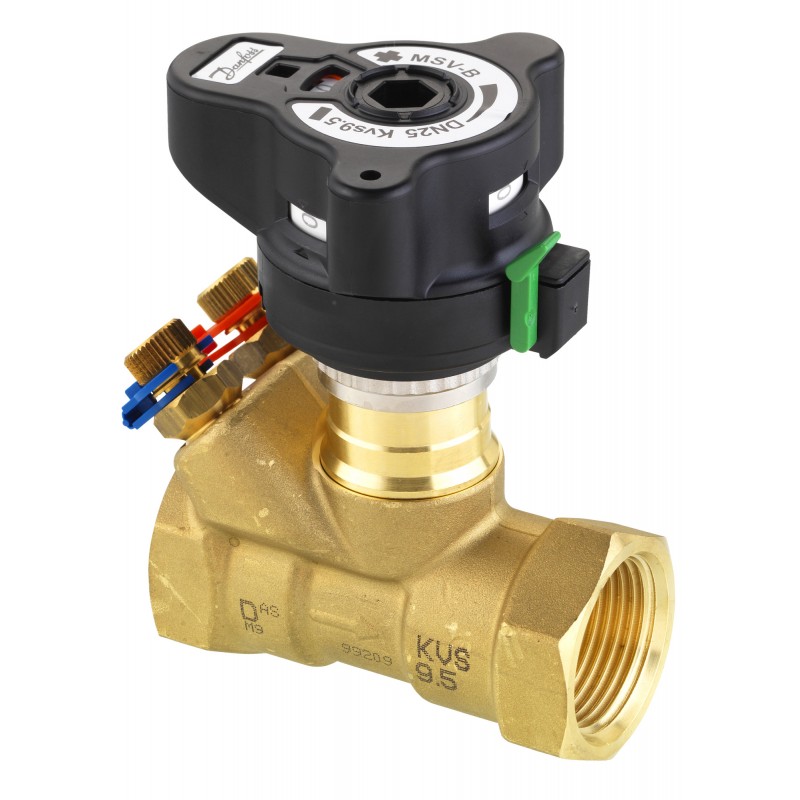

003Z4131 DANFOSS HEATING MSV-B DN15 LF G¾" ext. for fitting
003Z4131
DANFOSS HEATING
MSV-B DN15 LF G¾" ext. for fitting
LENO MSV-B, DN 15, Low flow, External Thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲MSV-B DN 15, External thread, manual balancing valve
Product details
| Gross weight | 0.729 Kilogram |
| Net weight | 0.67 Kilogram |
| Volume | 1.356 Liter |
| EAN | 5702420096384 |
| Type | LENO MSV-B |
| Product group | Manual balancing |
| Gross weight | 0.729 Kilogram |
| Net weight | 0.67 Kilogram |
| Volume | 1.356 Liter |
| EAN | 5702420096384 |
| Type | LENO MSV-B |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Connections | G ¾ A |
| Contains batteries | No |
| Description | MSV-B DN 15, External thread, manual balancing valve |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow type | Low flow |
| Kvs values [m³/h] | 3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | DZR brass |
| Valve size | DN 15 |
| China RoHS compliance | Out of scope |
| Connection types | External Thread |
| Connections | G ¾ A |
| Contains batteries | No |
| Description | MSV-B DN 15, External thread, manual balancing valve |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow type | Low flow |
| Kvs values [m³/h] | 3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | DZR brass |
| Valve size | DN 15 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z4131 003Z4131 ES_003Z4030.pdf | 3 Mbytes |
|
