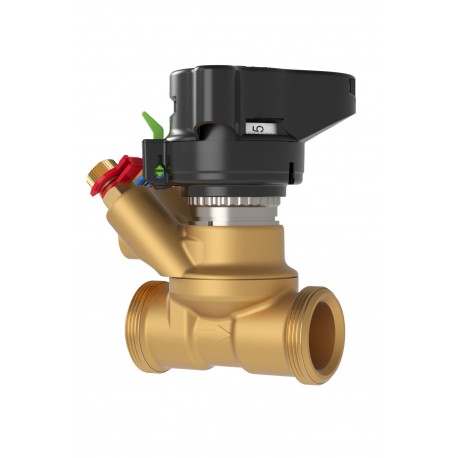

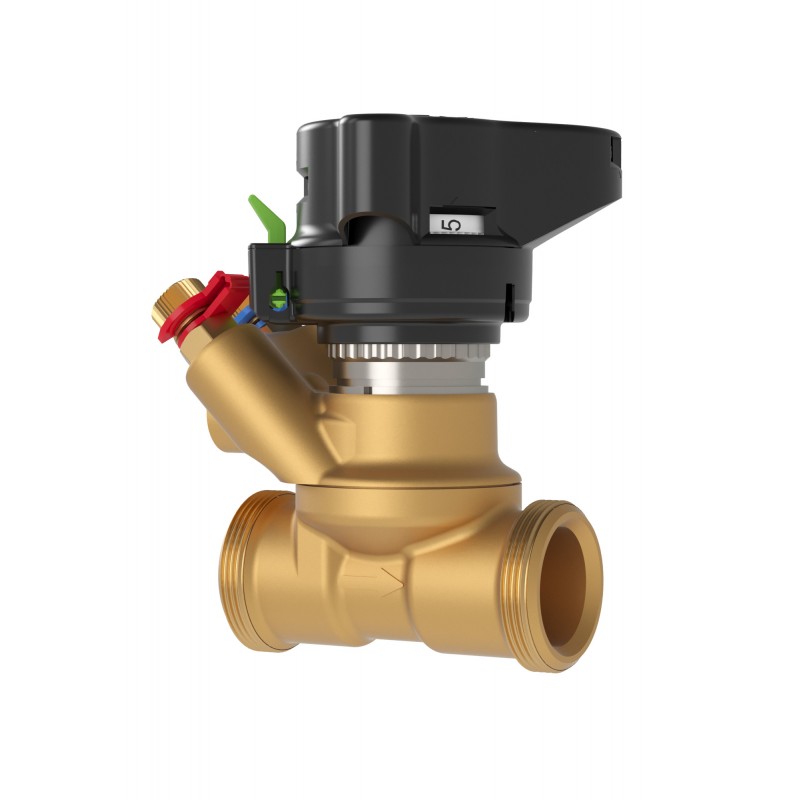

003Z4100 DANFOSS HEATING MSV-BD DN15 LF G¾" filet ext.
003Z4100
DANFOSS HEATING
MSV-BD DN15 LF G¾" filet ext.
LENO MSV-BD, DN 15 LF; Low flow, External thread ISO 228/1
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲MSV-BD DN 15, Low flow, External thread, manual balancing valve
Product details
| Gross weight | 0.835 Kilogram |
| Net weight | 0.812 Kilogram |
| Volume | 1.417 Liter |
| EAN | 5702420085517 |
| Type | LENO MSV-BD |
| Product group | Manual balancing |
| Gross weight | 0.835 Kilogram |
| Net weight | 0.812 Kilogram |
| Volume | 1.417 Liter |
| EAN | 5702420085517 |
| Type | LENO MSV-BD |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | External thread ISO 228/1 |
| Connections | G ¾ A |
| Contains batteries | No |
| Description | MSV-BD DN 15, Low flow, External thread, manual balancing valve |
| Differential pressure [kPa] [Max] | 3 KPa |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 2.5 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 35d16385-2142-475f-afb7-d3dbdff39012 |
| SCIP dossier product name | MSV-BD DN15-DN50 (1) |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Test plugs | With test plugs |
| Valve body material | DZR brass |
| Valve size | DN 15 LF Low flow |
| China RoHS compliance | Out of scope |
| Connection types | External thread ISO 228/1 |
| Connections | G ¾ A |
| Contains batteries | No |
| Description | MSV-BD DN 15, Low flow, External thread, manual balancing valve |
| Differential pressure [kPa] [Max] | 3 KPa |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | Yes |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 2.5 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 35d16385-2142-475f-afb7-d3dbdff39012 |
| SCIP dossier product name | MSV-BD DN15-DN50 (1) |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Test plugs | With test plugs |
| Valve body material | DZR brass |
| Valve size | DN 15 LF Low flow |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003Z4100 003Z4100 EN_003Z4000.pdf | 2 Mbytes |
|
