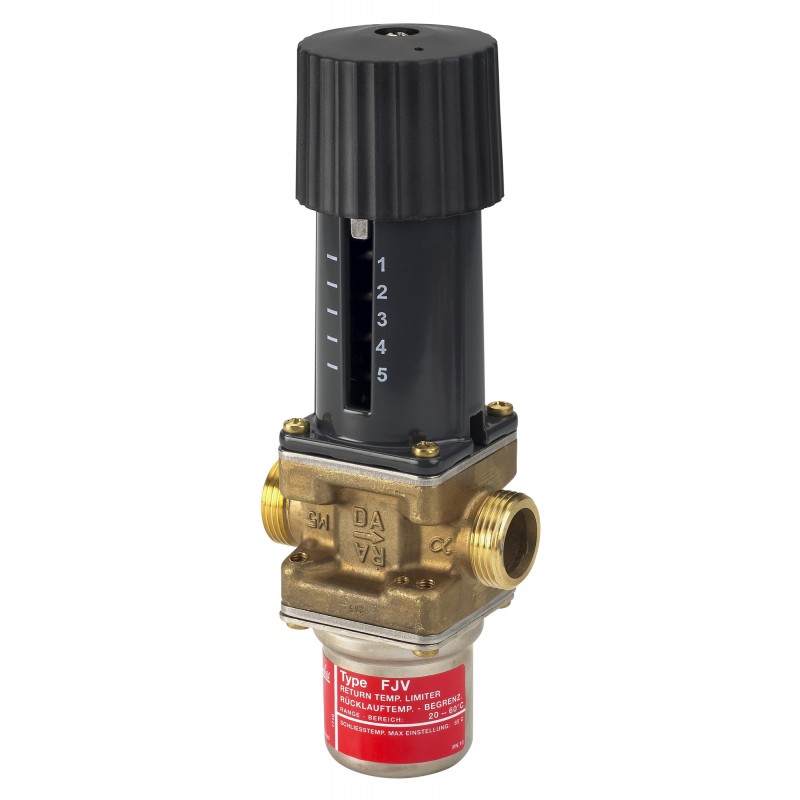

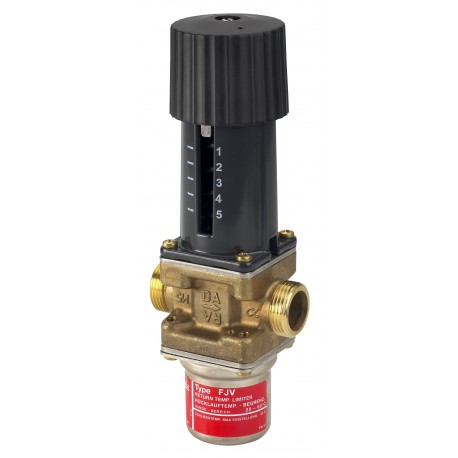

003N8218 DANFOSS HEATING FJV 20 Water Reg. Valve 50-90 °C M/10
003N8218
DANFOSS HEATING
FJV 20 Water Reg. Valve 50-90 °C M/10
FJV, PN 16, DN 20, 3.4 m³/h, 50 °C - 90 °C, Internal thread
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲FJV PN16 20/3,4 50-90 int Rp return
Product details
| Gross weight | 1.372 Kilogram |
| Net weight | 1.303 Kilogram |
| Volume | 4.082 Liter |
| EAN | 5702421100875 |
| Type | FJV |
| Product group | Temperature controllers |
| Gross weight | 1.372 Kilogram |
| Net weight | 1.303 Kilogram |
| Volume | 4.082 Liter |
| EAN | 5702421100875 |
| Type | FJV |
| Product group | Temperature controllers |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | ETA VA 1.54/18952 |
| Capillary tube length [m] | 0 m |
| Cavitation factor | 0.4 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | Rp 3/4 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | FJV PN16 20/3,4 50-90 int Rp return |
| Diameter [mm] | 20 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| EU RoHS compliance | Yes with exemptions |
| Flow characteristic | Linear |
| Function | Temp. limiter |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| Kvs values [m³/h] | 3.4 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Temperature setting range [°C] [Max] | 90 °C |
| Temperature setting range [°C] [Min] | 50 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Valve cone material | NBR rubber |
| Valve seat material | Cr Ni steel W.no 1.4301 |
| Valve size | DN 20 |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | ETA VA 1.54/18952 |
| Capillary tube length [m] | 0 m |
| Cavitation factor | 0.4 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | Rp 3/4 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | FJV PN16 20/3,4 50-90 int Rp return |
| Diameter [mm] | 20 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| EU RoHS compliance | Yes with exemptions |
| Flow characteristic | Linear |
| Function | Temp. limiter |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| Kvs values [m³/h] | 3.4 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Temperature setting range [°C] [Max] | 90 °C |
| Temperature setting range [°C] [Min] | 50 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Valve cone material | NBR rubber |
| Valve seat material | Cr Ni steel W.no 1.4301 |
| Valve size | DN 20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003N8218 003N8218 ES_003N2250.pdf | 424 Kbytes |
|
