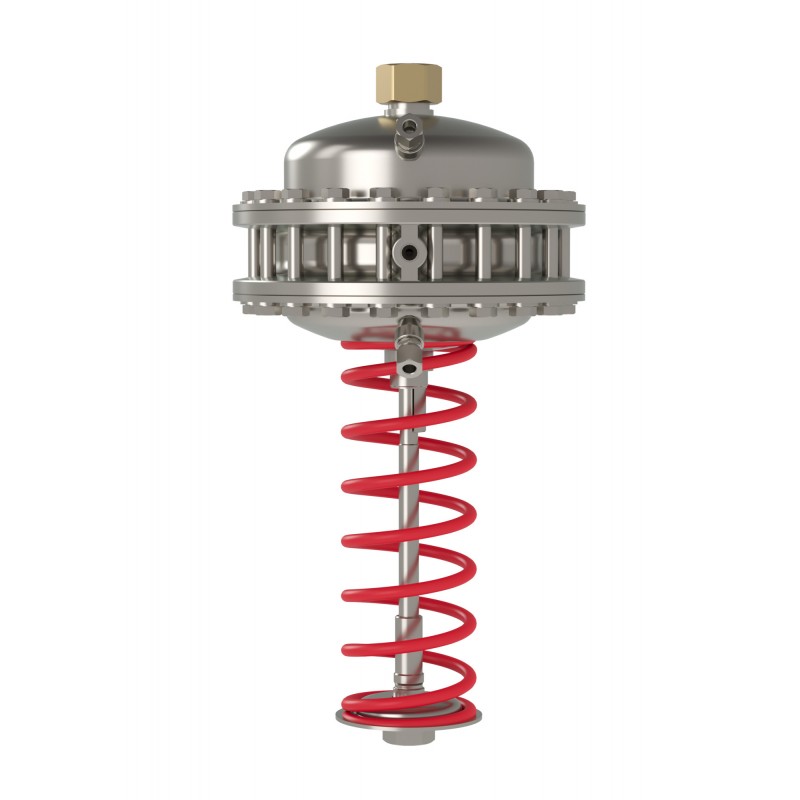

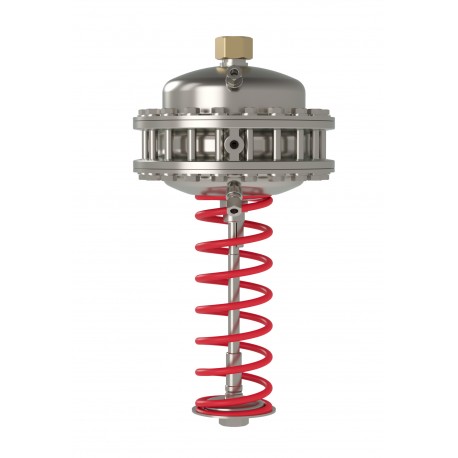

003G1035 DANFOSS HEATING AFPQ 4 PN40 0,15-1,5/0,2 250cm2 red
003G1035
DANFOSS HEATING
AFPQ 4 PN40 0,15-1,5/0,2 250cm2 red
AFPQ 4, PN 40, 0.15 bar - 1.5 bar, 0.2 bar, 250 cm², Red
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AFPQ 4 PN40 0,15-1,5/0,2 250cm2 red
Product details
| Gross weight | 32.74 Kilogram |
| Net weight | 32.74 Kilogram |
| Volume | 49.392 Liter |
| EAN | 5702421808498 |
| Type | AFPQ 4 |
| Product group | Actuators - Pressure Flow |
| Gross weight | 32.74 Kilogram |
| Net weight | 32.74 Kilogram |
| Volume | 49.392 Liter |
| EAN | 5702421808498 |
| Type | AFPQ 4 |
| Product group | Actuators - Pressure Flow |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 250 cm² |
| Body material | Steel, mat. No 1.0338, zinc plated and yellow chromate |
| China RoHS compliance | Out of scope |
| Colour | Red |
| Contains batteries | No |
| Description | AFPQ 4 PN40 0,15-1,5/0,2 250cm2 red |
| Diameter [mm] [Max] | 250 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 1.5 bar |
| Differential pressure setting [bar] [Min] | 0.15 bar |
| EU RoHS compliance | Out of scope |
| Flow control | Yes |
| Flow limitation | No |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Diff. press. and flow controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 40 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 40 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 40 bar |
| Pressure setting range [bar] [Max] | 1.5 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting Type | Adjustable |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 250 cm² |
| Body material | Steel, mat. No 1.0338, zinc plated and yellow chromate |
| China RoHS compliance | Out of scope |
| Colour | Red |
| Contains batteries | No |
| Description | AFPQ 4 PN40 0,15-1,5/0,2 250cm2 red |
| Diameter [mm] [Max] | 250 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 1.5 bar |
| Differential pressure setting [bar] [Min] | 0.15 bar |
| EU RoHS compliance | Out of scope |
| Flow control | Yes |
| Flow limitation | No |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Diff. press. and flow controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 40 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 40 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 40 bar |
| Pressure setting range [bar] [Max] | 1.5 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting Type | Adjustable |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003G1035 003G1035 ES_003G1365.pdf | 1 Mbytes |
|
