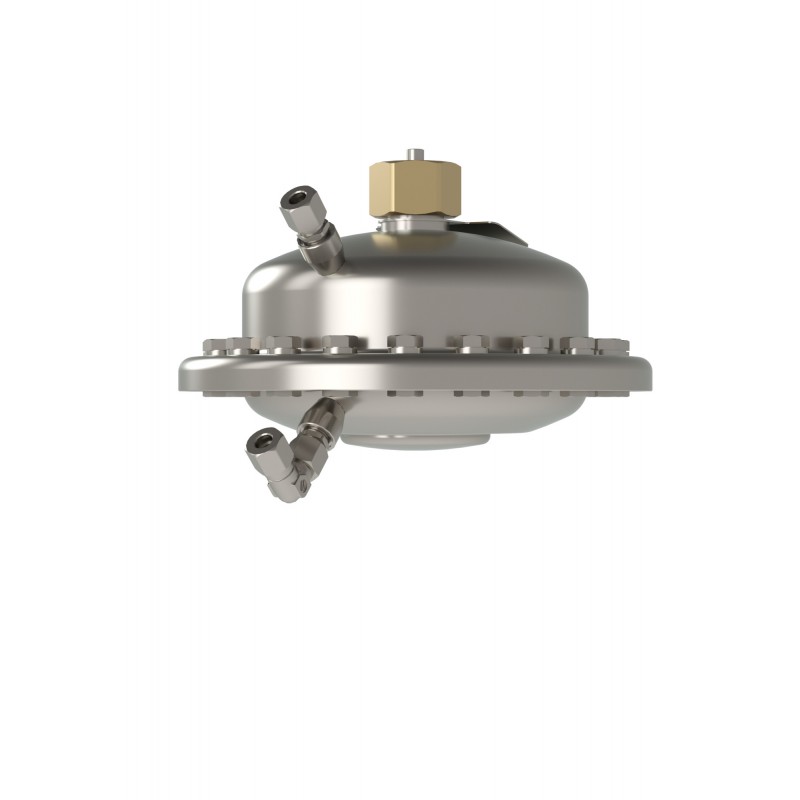

003G1027 DANFOSS HEATING AFPB-F PB25 0,5 250cm2 int. spring
003G1027
DANFOSS HEATING
AFPB-F PB25 0,5 250cm2 int. spring
AFPB-F, PN 25, 0.5 bar, 250 cm²
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AFPB-F PB25 0,5 250cm2 int. spring
Product details
| Gross weight | 9.812 Kilogram |
| Net weight | 9.812 Kilogram |
| Volume | 19.6 Liter |
| EAN | 5702421808412 |
| Type | AFPB-F |
| Product group | Actuators - Pressure Flow |
| Gross weight | 9.812 Kilogram |
| Net weight | 9.812 Kilogram |
| Volume | 19.6 Liter |
| EAN | 5702421808412 |
| Type | AFPB-F |
| Product group | Actuators - Pressure Flow |
| Actuator size [cm²] | 250 cm² |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | AFPB-F PB25 0,5 250cm2 int. spring |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 0.5 bar |
| Differential pressure setting [bar] [Min] | 0.5 bar |
| dPb virtual | 0.2 |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | Yes |
| Flow restrictor diff.pressure - dpb [bar] | 0.5 bar |
| Function | Diff. press. and flow limiter |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Mounting version | Return |
| Operating pressure [bar] [Max] | 25 bar |
| Pressure class | PN 25 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 0.5 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1fc27f33-7222-414d-8ff1-81abdd587564 |
| SCIP dossier product name | AFP/A/B |
| Setting Type | Fixed |
| Stroke [mm] | 7 mm |
| Actuator size [cm²] | 250 cm² |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | AFPB-F PB25 0,5 250cm2 int. spring |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 0.5 bar |
| Differential pressure setting [bar] [Min] | 0.5 bar |
| dPb virtual | 0.2 |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | Yes |
| Flow restrictor diff.pressure - dpb [bar] | 0.5 bar |
| Function | Diff. press. and flow limiter |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Mounting version | Return |
| Operating pressure [bar] [Max] | 25 bar |
| Pressure class | PN 25 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 0.5 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1fc27f33-7222-414d-8ff1-81abdd587564 |
| SCIP dossier product name | AFP/A/B |
| Setting Type | Fixed |
| Stroke [mm] | 7 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003G1027 003G1027 FR_003G1364.pdf | 990 Kbytes |
|
