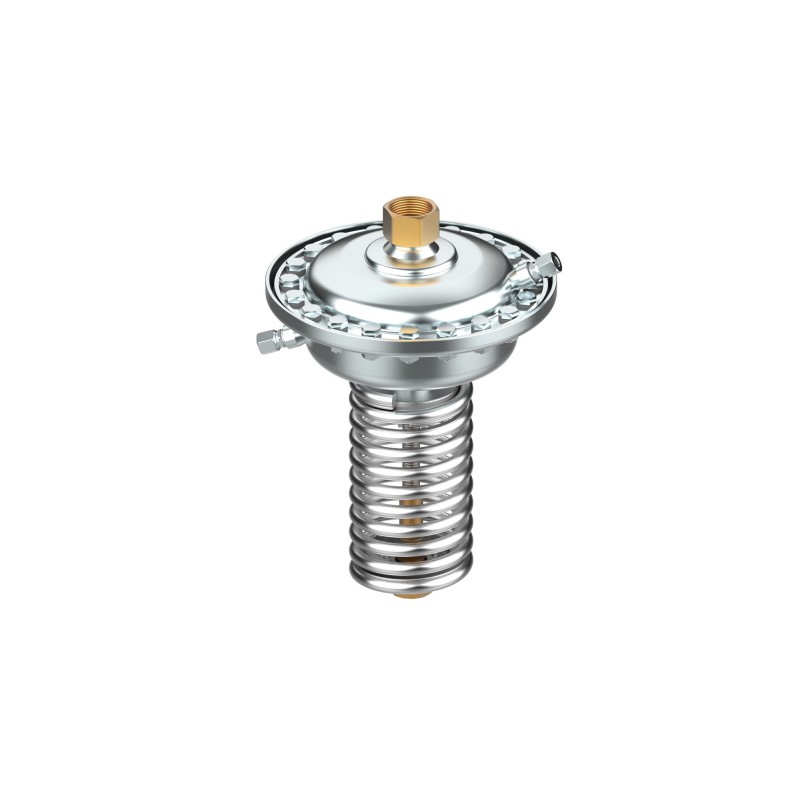

003G1011 DANFOSS HEATING AFA PB25 0,15-1,2 250cm2 silver
003G1011
DANFOSS HEATING
AFA PB25 0,15-1,2 250cm2 silver
AFA, PN 25, 0.15 bar - 1.2 bar, 250 cm², Silver
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲AFA PB25 0,15-1,2 250cm2 silver
Product details
| Gross weight | 16 Kilogram |
| Net weight | 16 Kilogram |
| Volume | 50.04 Liter |
| EAN | 5702421808252 |
| Type | AFA |
| Product group | Actuators - Pressure Flow |
| Gross weight | 16 Kilogram |
| Net weight | 16 Kilogram |
| Volume | 50.04 Liter |
| EAN | 5702421808252 |
| Type | AFA |
| Product group | Actuators - Pressure Flow |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 250 cm² |
| Body material | Steel, mat. No 1.0338, zinc plated and yellow chromate |
| China RoHS compliance | Out of scope |
| Colour | Silver |
| Contains batteries | No |
| Description | AFA PB25 0,15-1,2 250cm2 silver |
| Diameter [mm] [Max] | 250 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 1.2 bar |
| Differential pressure setting [bar] [Min] | 0.15 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Press. relief controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 25 |
| Pressure controller | Pressure relief controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 1.2 bar |
| Pressure setting range [bar] [Min] | 0.15 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d6136a2c-1f94-49c4-8ba7-76f280516979 |
| SCIP dossier product name | AFD/A |
| Setting Type | Adjustable |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 250 cm² |
| Body material | Steel, mat. No 1.0338, zinc plated and yellow chromate |
| China RoHS compliance | Out of scope |
| Colour | Silver |
| Contains batteries | No |
| Description | AFA PB25 0,15-1,2 250cm2 silver |
| Diameter [mm] [Max] | 250 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 1.2 bar |
| Differential pressure setting [bar] [Min] | 0.15 bar |
| EU RoHS compliance | Out of scope |
| Flow control | No |
| Flow limitation | No |
| Function | Press. relief controller |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 25 |
| Pressure controller | Pressure relief controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 1.2 bar |
| Pressure setting range [bar] [Min] | 0.15 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d6136a2c-1f94-49c4-8ba7-76f280516979 |
| SCIP dossier product name | AFD/A |
| Setting Type | Adjustable |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 003G1011 003G1011 ES_003G1007.pdf | 1 Mbytes |
|
