137L3880 7FC-AUFA3N05-736AE54F2-000122132 DANFOSS DRIVES iC7-Automation. Frequency converter,air-cooled. IC7..
137L3880
7FC-AUFA3N05-736AE54F2-000122132
DANFOSS DRIVES
iC7-Automation. Frequency converter,air-cooled. IC7-60FA3N05-736AE54F2+ACBC+AGCX+AJFD+BAMT+BDBA+BEF1+BF20+DAAU. IP54/UL Type 12, Frame: FB11. 3~, 380-500 V AC, 736 A. EMC category: C2 category. Control Panel 2.8 OPX20. Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO. Fieldbus protocols enabled: Modbus TCP OS7MT. Other protocols enabled: Ethernet port, no protocol. Functional Safety: STO, not upgradable. Other options according to model code

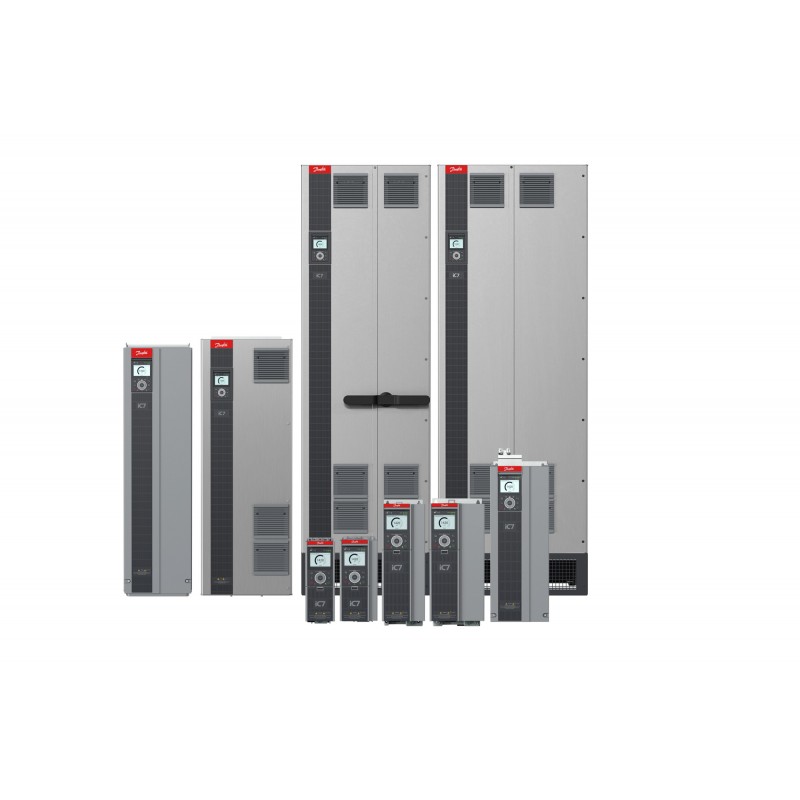

iC7-Automation Frequency Converter
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 276.97 kg | ||
| Net weight | 226.9 kg | ||
| Volume | 0 l | ||
| EAN | 5715253512624 |
General DD VC Class
| Help Counter | 1 | ||
| Typecode Part 1 | 7FC-AUFA3N05-736AE54F2 | ||
| Typecode Part 2 | -000122132 | ||
| Calculated Gross Weight [kg] | 277.01 | ||
| Calculated Net Weight [kg] | 226.9 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | ||
| ECCN US | 3A999.a |
iC7 Frequency Converters - IC7FC
| Product series | +DAAU | iC7-Automation | |
| Product group | IC7-60 | iC7-60 | |
| Product category | FA | Frequency converter,air-cooled | |
| Product type | 3N | 3~ | |
| Mains voltage | 05 | 380-500 V AC | |
| Current rating | -736A | 736 A | |
| Power rating | 400 | 400 kW/550 hp | |
| Protection rating | E54 | IP54/UL Type 12 | |
| EMC category | F2 | C2 category | |
| Cable entry and EMC plate | +AAST | Standard plate | |
| Integrated brake chopper | +ACBC | Yes | |
| Extra environmental protection | +AGCX | Coated boards | |
| Humidity protection device | +AHXX | None | |
| Mains input device | +AJFD | AC fuses and mains switch | |
| DC terminals | +ALXX | None | |
| Touch protection | +AMXX | None | |
| Heat sink access panel | +APXX | None | |
| Communication interface, X1/X2 | +BAMT | Modbus TCP OS7MT | |
| Standard I/O | +BDBA | 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO | |
| Functional safety | +BEF1 | STO, not upgradable | |
| Control panel | +BF20 | Control Panel 2.8 OPX20 | |
| Interface board | +BISR | MicroSD card reader and RTC | |
| Option slot A | +CAX0 | None | |
| Option slot B | +CBXX | None, not upgradable | |
| Option slot C | +CCX0 | None | |
| Option slot D | +CDX0 | None | |
| Option Slot E | +CEX0 | None | |
| Product software ID | +ECXXX | Latest released version | |
| Technical documentation | +EGIN | Installation guide | |
| Integrated common-mode filter | +AIXX | None | |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol | |
| Customer specific application | +DBXX | None | |
| Additional drive features 1 | +DD1X | None | |
| Additional drive features 2 | +DE2X | None | |
| Additional drive features 3 | +DF3X | None | |
| Additional drive features 4 | +DG4X | None | |
| Additional drive features 5 | +DH5X | None | |
| High speed enabled | +DI6X | No | |
| Customization file package ID | +EAXXXXXX | No customization | |
| Customer-specific label | +EJXX | None | |
| Language package | +EL01 | Global | |
| Product specific marine cert. | +VBXX | None | |
| Frame designation | FB11 | FB11 | |
| Modelcode01 | IC7-60FA3N05-736AE54F2 | ||
| Modelcode02 | +ACBC+AGCX+AJFD | ||
| Modelcode03 | +BAMT+BDBA | ||
| Modelcode04 | +BEF1+BF20 | ||
| Modelcode05 | +DAAU | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Efficiency class-Relative loss | IE2 - 1.79% | ||
| Maximum Power Loss LO [W] | 8553 | ||
| Enclosure rating | IP54 / TYPE 12 | ||
| Input frequency | 50/60Hz | ||
| Output frequency | 0-590Hz | ||
| Input current in High Overload | 633/568A | ||
| Input current in Normal Overlo | 709/633A | ||
| Short circuit current rating | 100kA | ||
| Ambient temp. high overload | 45°C/113°F | ||
| Ambient temp. normal overload | 40°C/104°F | ||
| Input Voltage | 3x380-500V | ||
| Typical motor power PL (110%) | 400KW(400V)/550HP(460V) | ||
| Typical motor power PH (150%) | 355KW(400V)/500HP(460V) | ||
| Typical motor power PH (150%) | 315KW(400V)/450HP(460V) | ||
| Continous current IL (1/10min) | 736/658A | ||
| Continous current IH (1/10min) | 658/590A | ||
| Continous current IH (1/5min) | 588/520A | ||
| Main unit Width | 602 MM / 23.7 IN | ||
| Main unit Height | 2043 MM / 80.4 IN | ||
| Main unit Depth | 510 MM / 20.1 IN |
iC7-Automation Freq Converter - IC7FC_AU
| Product View (Switch) | GLBL | Global (Standard) |
