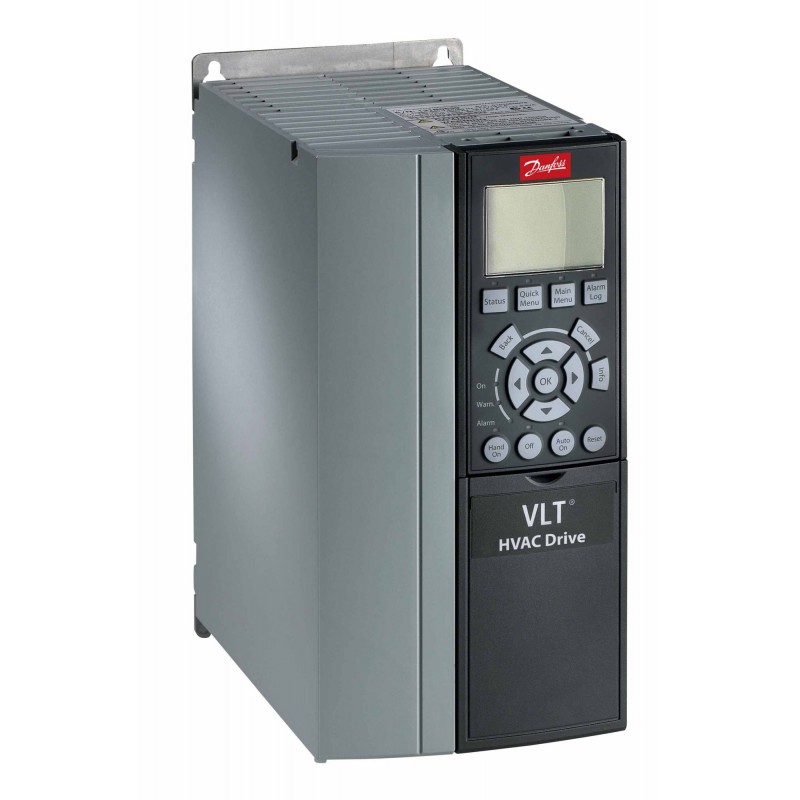

134F6500 DANFOSS DRIVES VLT HVAC Drive FC 102
134F6500
DANFOSS DRIVES
VLT HVAC Drive FC 102
Frequency Converter. FC-102P45KT4S21H2XGCNXXSXXXXAXBXCXXXXDX. VLT® HVAC Drive FC-102. (P45K) 45 KW / 60 HP, Three phase. 380 - 480 VAC, Std panel IP21/ Type 1. RFI Filter. No brake chopper. Graphical Loc. Cont. Panel. Coated PCB, EMB2 Circuit Breaker +Fuse. Latest release std. SW.. Frame: P4. No C1 option, No D option. No A Option, No B Option. Other options according to Model Code
VLT FC102 HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 93 kg | ||
| Net weight | 78 kg | ||
| Volume | 0 l | ||
| EAN | 5710107467273 |
VLT® HVAC DRIVE FC 100 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P45K | (P45K) 45 KW / 60 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | S21 | Std panel IP21/ Type 1 | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | N | EMB2 Circuit Breaker +Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | P4 | P4 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P45KT4S21H2XGC | ||
| Typecode Part 2 | NXXSXXXXAXBXCXXXXDX | ||
| Power Loss NO [W] | 843 | ||
| Power Loss NO [W] | 843 | ||
| Calculated Gross Weight [kg] | 0 | ||
| Calculated Net Weight [kg] | 0 | ||
| ECCN US | 3A999 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P45KT4S21H2XGC | ||
| Modelcode02 | NXXSXXXXAXBXCXXXXDX |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC102 EN.pdf | 11 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
