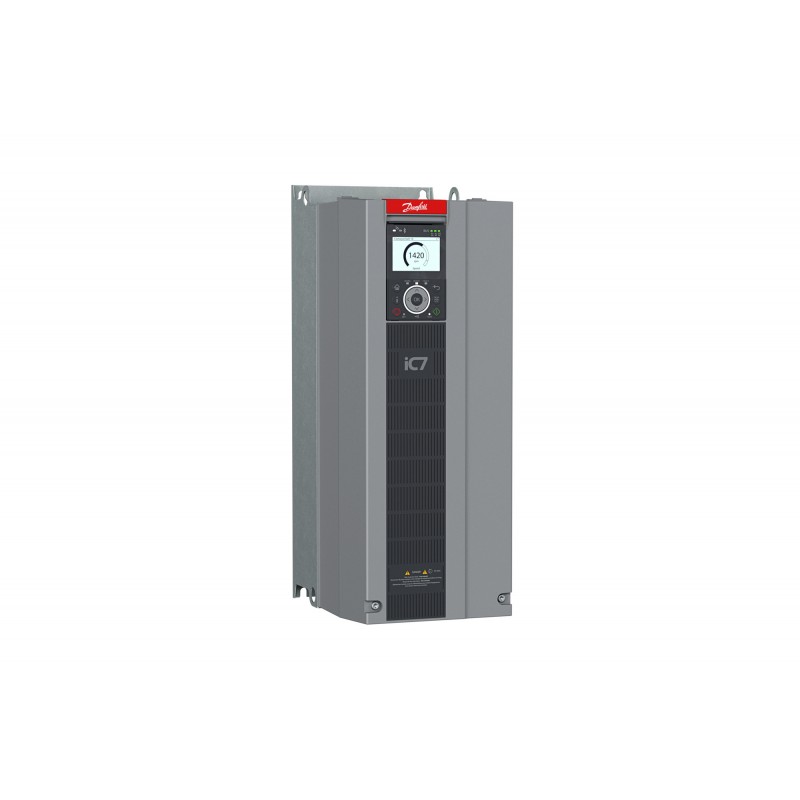

132X3859 7FC-AUFA3N05-61A0E20F1-000074059 DANFOSS DRIVES iC7-Automation. Frequency converter,air-cooled. IC7..
132X3859
7FC-AUFA3N05-61A0E20F1-000074059
DANFOSS DRIVES
iC7-Automation. Frequency converter,air-cooled. IC7-60FA3N05-61A0E20F1+BAPR+BDBA+BEF1+DAAU. IP20/Open Type, Frame: FA06. 3~, 380-500 V AC, 61 A. EMC category: C1 and C2 category. Blind Panel OPX00. Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO. Fieldbus protocols enabled: PROFINET RT OS7PR. Other protocols enabled: Ethernet port, no protocol. Functional Safety: STO, not upgradable. Other options according to model code
iC7-Automation Frequency Converter
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲iC7-Automation
Frequency converter,air-cooled
IC7-60FA3N05-61A0E20F1 +BAPR+BDBA+BEF1 +DAAU
IP20/Open Type, Frame: FA06
3~, 380-500 V AC, 61 A
EMC category: C1 and C2 category
Blind Panel OPX00
Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Fieldbus protocols enabled: PROFINET RT OS7PR
Other protocols enabled: Ethernet port, no protocol
Functional Safety: STO, not upgradable
Other options according to model code
Product details
| Gross weight | 31.21 Kilogram | ||
| Net weight | 25.9 Kilogram | ||
| Volume | 91.654 Liter | ||
| EAN | 5715253187754 |
| Product series | +DAAU | iC7-Automation | |
| Product group | IC7-60 | iC7-60 | |
| Product category | FA | Frequency converter,air-cooled | |
| Product type | 3N | 3~ | |
| Mains voltage | 05 | 380-500 V AC | |
| Current rating | -61A0 | 61 A | |
| Power rating | 30K | 30 kW/40 hp | |
| Protection rating | E20 | IP20/Open Type | |
| EMC category | F1 | C1 and C2 category | |
| Cable entry and EMC plate | +AAST | Standard plate | |
| Integrated brake chopper | +ACXX | None | |
| Extra environmental protection | +AGXX | None | |
| Humidity protection device | +AHXX | None | |
| Integrated common-mode filter | +AIXX | None | |
| Mains input device | +AJXX | None | |
| DC terminals | +ALXX | None | |
| Touch protection | +AMXX | None | |
| Heat sink access panel | +APXX | None | |
| Communication interface, X1/X2 | +BAPR | PROFINET RT OS7PR | |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol | |
| Standard I/O | +BDBA | 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO | |
| Functional safety | +BEF1 | STO, not upgradable | |
| Control panel | +BF00 | Blind Panel OPX00 | |
| Interface board | +BISR | MicroSD card reader and RTC | |
| Option slot A | +CAX0 | None | |
| Option slot B | +CBXX | None, not upgradable | |
| Option slot C | +CCX0 | None | |
| Option slot D | +CDX0 | None | |
| Option Slot E | +CEX0 | None | |
| Customer specific application | +DBXX | None | |
| Additional drive features 1 | +DD1X | None | |
| Additional drive features 2 | +DE2X | None | |
| Additional drive features 3 | +DF3X | None | |
| Additional drive features 4 | +DG4X | None | |
| Additional drive features 5 | +DH5X | None | |
| High speed enabled | +DI6X | No | |
| Customization file package ID | +EAXXXXXX | No customization | |
| Product software ID | +ECXXX | Latest released version | |
| Technical documentation | +EGIN | Installation guide | |
| Customer-specific label | +EJXX | None | |
| Language package | +EL01 | Global | |
| Product specific marine cert. | +VBXX | None | |
| Frame designation | FA06 | FA06 | |
| Modelcode01 | IC7-60FA3N05-61A0E20F1 | ||
| Modelcode03 | +BAPR+BDBA | ||
| Modelcode04 | +BEF1 | ||
| Modelcode05 | +DAAU | ||
| Input Voltage | 3x380-500V | 3x380-500V | |
| Input frequency | 50/60Hz | 50/60Hz | |
| Short circuit current rating | 100kA | 100kA | |
| Output frequency | 0-590Hz | 0-590Hz | |
| Typical motor power PL (110%) | 30KW(400V)/40HP(460V) | 30KW(400V)/40HP(460V) | |
| Continous current IL (1/10min) | 61/55A | 61/55A | |
| Overload current IL (1/10min) | 67/61A | 67/61A | |
| Input current LO (1/10 min) | 58/50A | 58/50A | |
| Ambient temp LO (1/10 min) | 45°C/113°F | 45°C/113°F | |
| Typical motor power PH (150%) | 30KW(400V)/40HP(460V) | 30KW(400V)/40HP(460V) | |
| Continous current IH (1/10min) | 61/55A | 61/55A | |
| Overload current IH (1/10min) | 92/83A | 92/83A | |
| Input current HO (1/10 min) | 58/50A | 58/50A | |
| Ambient temp HO (1/10 min) | 45°C/113°F | 45°C/113°F | |
| Typical motor power PH2 (150%) | 22KW(400V)/30HP(460V) | 22KW(400V)/30HP(460V) | |
| Continous current IH (1/5min) | 43/40A | 43/40A | |
| Overload current IH (1/5min) | 69/60A | 69/60A | |
| Input curent HO2 (1/5 min) | 43/37A | 43/37A | |
| Ambient temp HO2 (1/5 min) | 45°C/113°F | 45°C/113°F | |
| Efficiency class-Relative loss | IE2 - 1.45% | IE2 - 1.45% | |
| Maximum Power Loss LO [W] | 650 | 650 | |
| Main unit Width | 200 MM / 7.9 IN | 200 MM / 7.9 IN | |
| Main unit Height | 555 MM / 21.9 IN | 555 MM / 21.9 IN | |
| Main unit Depth | 294 MM / 11.6 IN | 294 MM / 11.6 IN | |
| Calculated Net Weight [kg] | 25.9 | ||
| Calculated Gross Weight [kg] | 31.21 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Ambient temp. normal overload | 45°C/113°F | 45°C/113°F | |
| Calculated Package Weight | 5.31 | ||
| Enclosure rating | IP20 / OPEN TYPE | IP20 / OPEN TYPE | |
| Help Counter | 1 | ||
| Input current in Normal Overlo | 58/50A | 58/50A | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Product View (Switch) | GLBL | Global (Standard) | |
| STAT NO | 10865 | ||
| Typecode Part 1 | 7FC-AUFA3N05-61A0E20F1 | ||
| Typecode Part 2 | -000074059 | ||
| Variant condition (Purch) | 10865 AC_IC7-60FA3N+AJXXFA06 AUTOFA06 BA_IC7-60FA3N05-61A0+DAAU BR_IC7-60FA3N05-61A0+ACXX CC_IC7-60FA3N+BAPR CM_IC7-60FA3N+AIXXFA06 CO_IC7-60FA3N+AGXX DC_IC7-60FA3N05-61A0+ALXX EM_IC7-60FA3N05-61A0F1 EN_IC7-60FA3N05-61A0E20 FS_IC7-60FA3N05-61A0+BEF1 HM_IC7-60FA3N+BF00FA06 HP_IC7-60FA3N+AHXXFA06 HS_IC7-60FA3N+APXXFA06 IB_IC7-60FA3N+BISR IC7-60 IC7-60+DAAU IC7-60FA3N05 IC7_POWER GROUP_3 IO_IC7-60FA3N+BDBA L1_IC7-60FA3N+DD1X L1_IC7-60FA3N+DD1XFA06 MS_FA3N05-61A0+AMXXFA06 OA_IC7-60FA3N+CAX0 OB_IC7-60FA3N+CBXX OC_IC7-60FA3N+CCX0 OD_IC7-60FA3N+CDX0 OE_IC7-60FA3N+CEX0 SB_IC7-60FA3N+BBEL TD_IC7-60FA3N+EGIN | ||
| Variant condition (ref. YV00) | 10865 AC_IC7-60FA3N+AJXXFA06 AUTOFA06 BA_IC7-60FA3N05-61A0+DAAU BR_IC7-60FA3N05-61A0+ACXX CC_IC7-60FA3N+BAPR CM_IC7-60FA3N+AIXXFA06 CO_IC7-60FA3N+AGXX DC_IC7-60FA3N05-61A0+ALXX EM_IC7-60FA3N05-61A0F1 EN_IC7-60FA3N05-61A0E20 FS_IC7-60FA3N05-61A0+BEF1 HM_IC7-60FA3N+BF00FA06 HP_IC7-60FA3N+AHXXFA06 HS_IC7-60FA3N+APXXFA06 IB_IC7-60FA3N+BISR IC7-60 IC7-60+DAAU IC7-60FA3N05 IC7_POWER GROUP_3 IO_IC7-60FA3N+BDBA L1_IC7-60FA3N+DD1X L1_IC7-60FA3N+DD1XFA06 MS_FA3N05-61A0+AMXXFA06 OA_IC7-60FA3N+CAX0 OB_IC7-60FA3N+CBXX OC_IC7-60FA3N+CCX0 OD_IC7-60FA3N+CDX0 OE_IC7-60FA3N+CEX0 SB_IC7-60FA3N+BBEL TD_IC7-60FA3N+EGIN | ||
| Vendor | ERR01 | Cannot Determine Vendor |
