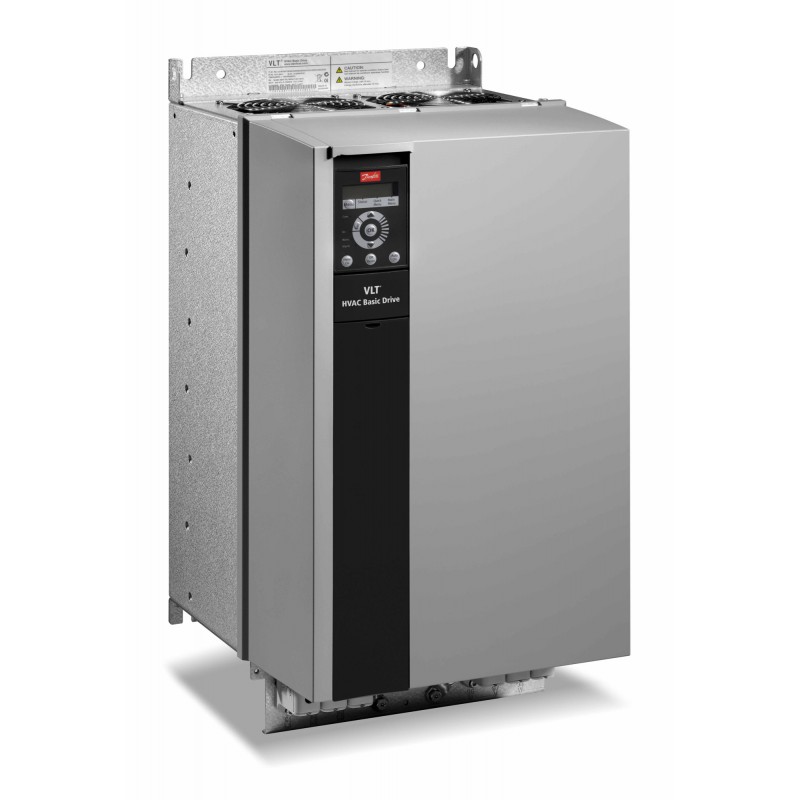

131L9904 FC-101P55KT4P20H3XXCXXXSXXXXAXBXCXXXXDX DANFOSS DRIVES VLT HVAC Basic Drive FC-101 55 KW / 75 HP, 3..
131L9904
FC-101P55KT4P20H3XXCXXXSXXXXAXBXCXXXXDX
DANFOSS DRIVES
VLT HVAC Basic Drive FC-101 55 KW / 75 HP, 380-480 VAC, IP20 / Chassis Backplate, RFI Class A1/B (cable len)(C1), No brake chopper, No Mains Option, No A Option, No B Option, Coated PCB, FC-101P55KT4P20H3XXCXXXSXXXXAXBXCXXXXDX
Frequency ConverterFC-101P55KT4P20H3XXCXXXSXXXXAXBXCXXXXDXVLT® HVAC Drive FC- 101(P55K) 55 KW / 75 HP, Three phase380 - 480 VAC, IP20 / Chassis Backplate(H3) RFI Class A1/B (C1)No brake chopperNo Loc. Cont. PanelCoated PCB, No Mains OptionNo A Option, No B OptionNo C1 option, No D optionFrame: H7Other options according to Model Code
VLT FC101 BASIC HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency Converter
FC-101P55KT4P20H3XXCXXXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC- 101
(P55K) 55 KW / 75 HP, Three phase
380 - 480 VAC, IP20 / Chassis Backplate
(H3) RFI Class A1/B (C1)
No brake chopper
No Loc. Cont. Panel
Coated PCB, No Mains Option
No A Option, No B Option
No C1 option, No D option
Frame: H7
Other options according to Model Code
Product details
| Gross weight | 52.5 Kilogram | ||
| Net weight | 52.2 Kilogram | ||
| Volume | 228.095 Liter | ||
| EAN | 5710107089499 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 101 | 101 | |
| Power Rating | P55K | (P55K) 55 KW / 75 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | P20 | IP20 / Chassis Backplate | |
| RFI Filter | H3 | (H3) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | X | No Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | H7 | H7 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-101P55KT4P20H3XXC | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Calculated Net Weight [kg] | 37 | ||
| Calculated Gross Weight [kg] | 37.3 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-101P55KT4P20H3XXC | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FC101.pdf | 712 Kbytes |
|
| PDF VLT HVAC Basic Drive Selection Guide EN 2025.pdf | 8 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
