131L9860 FC-101P45KT2P20H3XXCXXXSXXXXAXBXCXXXXDX DANFOSS DRIVES VLT HVAC Basic Drive FC-101 45 KW / 60 HP, 2..
131L9860
FC-101P45KT2P20H3XXCXXXSXXXXAXBXCXXXXDX
DANFOSS DRIVES

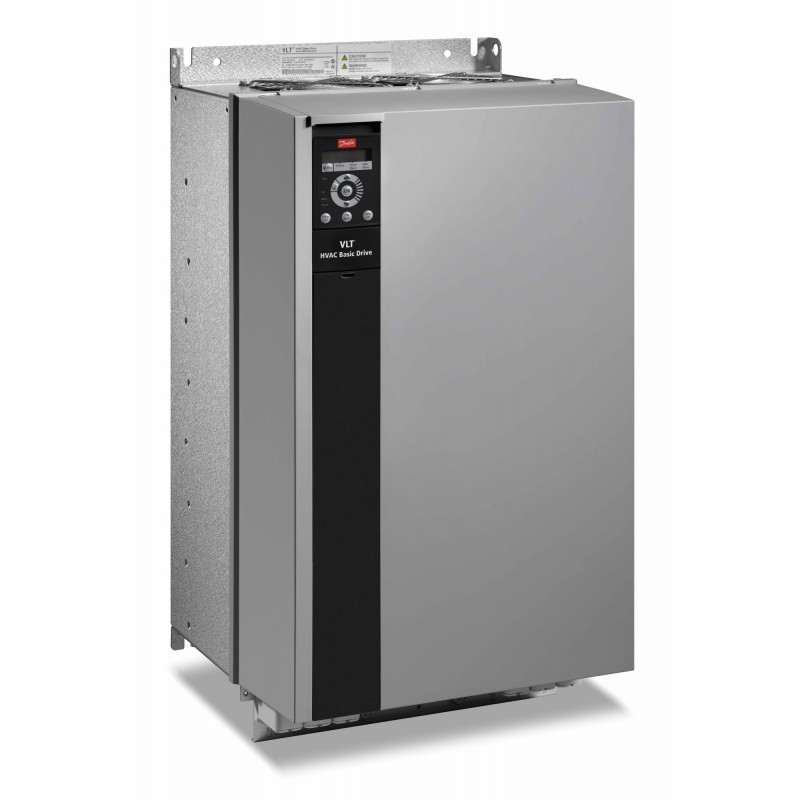

VLT HVAC Basic Drive FC-101 45 KW / 60 HP, 200-240 VAC, IP20 / Chassis Backplate, RFI Class A1/B (cable len)(C1), No brake chopper, No Mains Option No A Option, No B Option, Coated PCB FC-101P45KT2P20H3XXCXXXSXXXXAXBXCXXXXDX
FC-101P45KT2P20H3XXCXXXSXXXXAXBXCXXXXDX
Frequency Converter. FC-101P45KT2P20H3XXCXXXSXXXXAXBXCXXXXDX. VLT® HVAC Drive FC- 101. (P45K) 45 KW / 60 HP, Three phase. 200 - 240 VAC, IP20 / Chassis Backplate. (H3) RFI Class A1/B (C1). No brake chopper. No Loc. Cont. Panel. Coated PCB, No Mains Option. No A Option, No B Option. No C1 option, No D option. Frame: H8. Other options according to Model Code
VLT FC101 BASIC HVAC - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 52.5 kg | ||
| Net weight | 52.2 kg | ||
| Volume | 228.095 l | ||
| EAN | 5710107089284 |
VLT® HVAC DRIVE FC 101 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 101 | 101 | |
| Power Rating | P45K | (P45K) 45 KW / 60 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 2 | 200 - 240 VAC | |
| Enclosure | P20 | IP20 / Chassis Backplate | |
| RFI Filter | H3 | (H3) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | X | No Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | H8 | H8 | |
| Product Catalog | GLBL | Global (Standard) | |
| Typecode Part 1 | FC-101P45KT2P20H3XXC | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Calculated Net Weight [kg] | 52 | ||
| Calculated Gross Weight [kg] | 52.3 | ||
| ECCN EU | Y901 | ||
| ECCN US | 3A999.a | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-101P45KT2P20H3XXC | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Recommended Plant | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FC101.pdf | 712 Kbytes |
|
| PDF VLT HVAC Basic Drive Selection Guide EN 2025.pdf | 8 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
