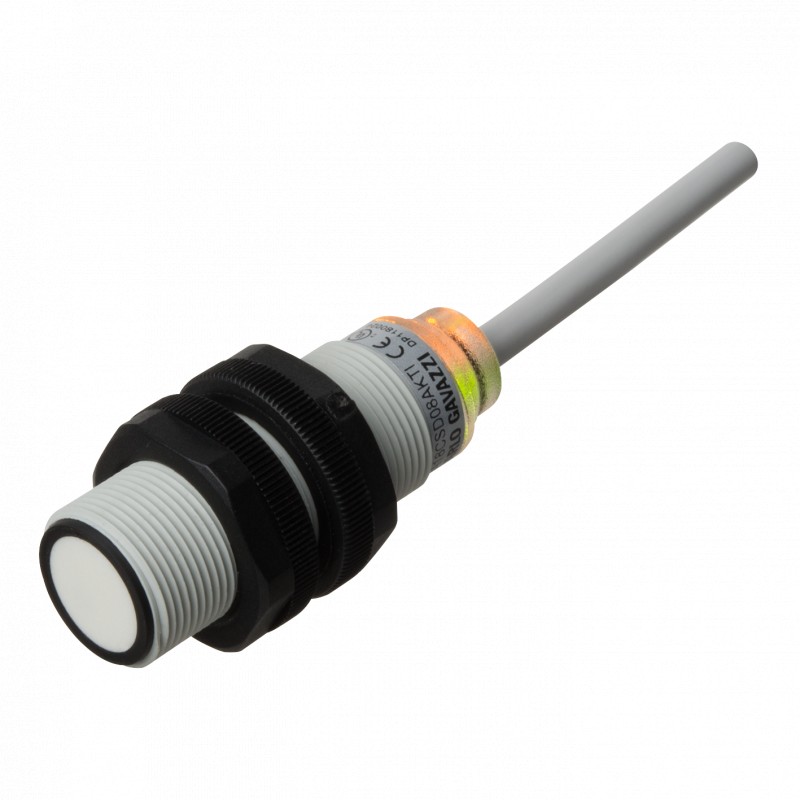

UA18CSD08AGTI CARLO GAVAZZI System: Sensor, Housing: M18, Sensing range: 0,2 to 1 m, Connection: Cable, Outp..
UA18CSD08AGTI
CARLO GAVAZZI
System: Sensor, Housing: M18, Sensing range: >0,2 to 1 m, Connection: Cable, Output: analogue 4...20 mADC, Material: Plastic, Housing: M18 x 54,9 mm, Sensing range: 0,8 m, Material: Thermoplastic polyester
Ultrasound with direct detection, analog output 4-20 mA, Sensing distance 80 to 800 mm.
Ultrasonic sensor, Diffuse reflective, M18 plastic, 2m PVC cable, Sn 80-800mm, Output 4-20mA, Supply voltage 10-30Vdc, Operating temperature -20C - +60C, Response time <400ms, IP67, Teach-in
Sensors for automation technology > Ultrasonic proximity switch
Sensors > Conductive Level Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Type of analogy output (EF003958) | 4 mA ... 20 mA |
| Type of electric connection (EF003961) | Cable |
| Type of switching output (EF003962) | Other |
| Type of switch function (EF003963) | Programmable/configurable |
| Blind zone (EF003986) | 80 mm |
| Length of sensor (EF007334) | 52.9 mm |
| Diameter sensor (EF007111) | 18 mm |
| Adjustable distance (EF008209) | 80 mm |
| Setting procedure (EF003994) | Teach-In |
| Measuring range length (EF008213) | 80 mm |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Standard for interfaces (EF004017) | Analogue |
| No-load current (EF004028) | 35 mA |
| Relative linearity deflection (EF004034) | 1 % |
| Max. output current (EF001315) | 0 mA |
| Ambient temperature (EF002386) | -20 °C |
| Supply voltage (EF004127) | 10 V |
| Relative repeat accuracy (EF004100) | 1 % |
| Switching frequency (EF003587) | 0 Hz |
| Voltage type (EF000187) | DC |
| Synchronisation possible (EF004117) | No |
| Material active area of sensor (EF004133) | Glass |
| Housing material (EF001596) | Plastic |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| AWG-number (EF007010) | 22 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| UA18CSD08AGTI UA18CSD08AGTI EN_UA18CSD08AGM1TI.pdf | 403 Kbytes |
|
