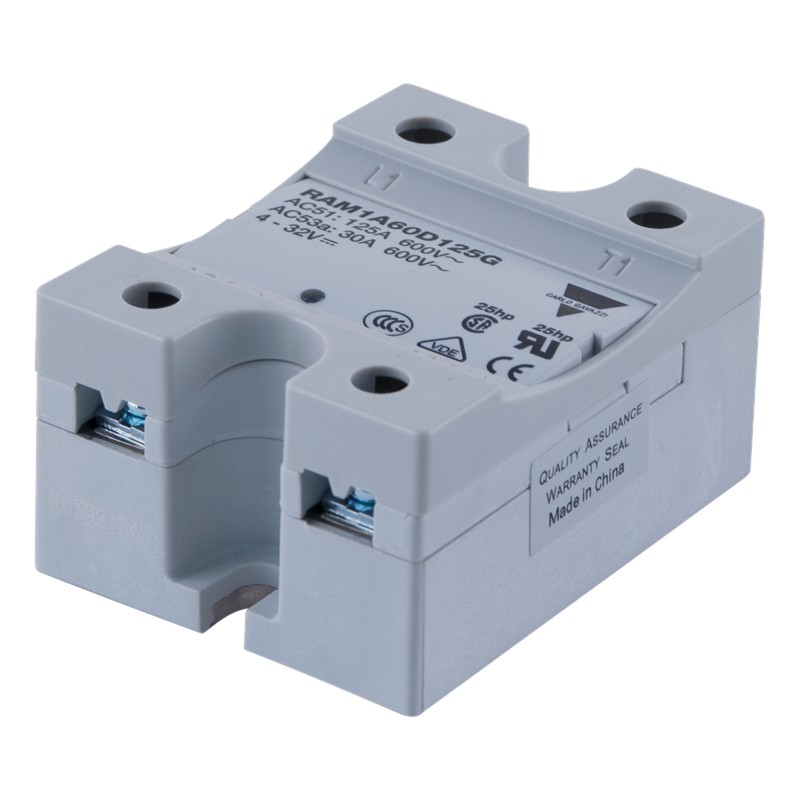

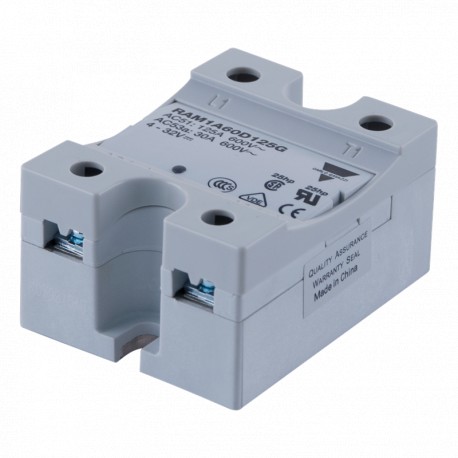

RAM1A60D100G CARLO GAVAZZI System: Panel Mounting, Category Current Rating: 76 100 ACA, Rated Voltage: 600 V..
RAM1A60D100G
CARLO GAVAZZI
System: Panel Mounting, Category Current Rating: 76 - 100 ACA, Rated Voltage: 600 VAC, Output Switching Mode: Zero Passing, Number of Phases: 1, Control: DC - DIGITAL, Power Connection: Screw, Model: Solid State Relay, Item code: RAM1A60D100G, Current data: 100 ACA, Control input: 4 - 32 VDC, Product Width: 45 mm
AC single-phase solid-state relay; Static; According to EN60335-1; Rated current 100
1-pole panel mount SSR, Zero-cross switching, Operating voltage (Ue): 42 - 660 Vac (1200 Vp), Rated current (Ie): 100 Aac, Control voltage (Uc): 4 - 32 Vdc, Built-in overvoltage protection, Glow wire certified (EN60335-1)
Relays > Solid state relay
Switches > Solid state relays
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 4 V |
| Voltage type for actuating (EF008242) | DC |
| Rated operation current Ie at AC-51 (EF009488) | 100 A |
| Rated operation current Ie at AC-53a (EF009489) | 25 A |
| Number of phases (EF000351) | 1 |
| Modular version (EF001126) | No |
| Switching at zero-crossing (EF011956) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| RAM1A60D100G RAM1A60D100G EN_RAM1A60A100G.pdf | 2 Mbytes |
|
