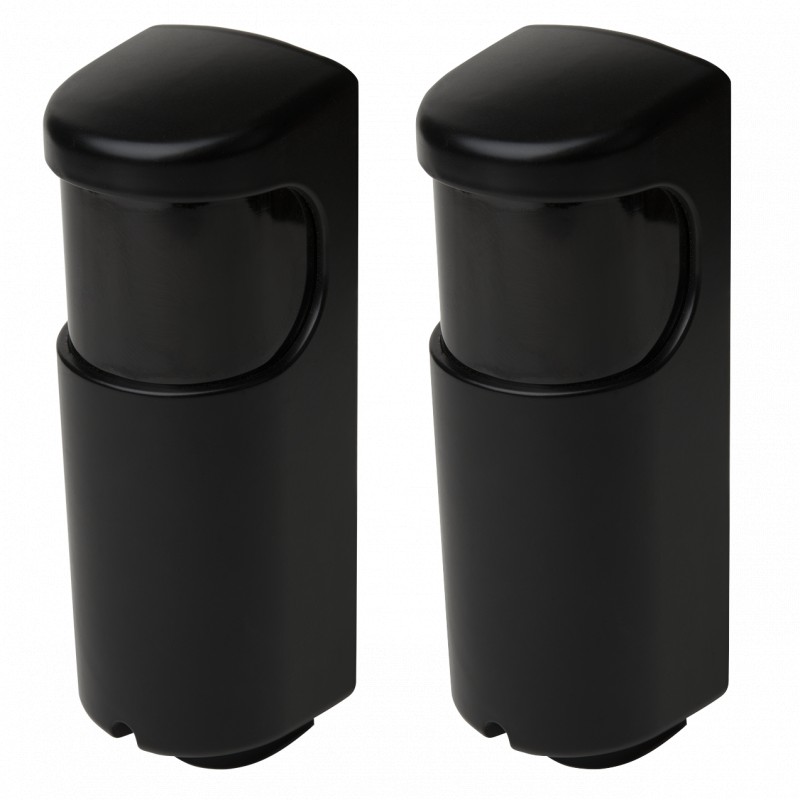

PD140FNT60QMU-02C CARLO GAVAZZI System: Through-beam, Housing: rectangular, Sensing range: 60 ... 120 m, Con..
PD140FNT60QMU-02C
CARLO GAVAZZI
System: Through-beam, Housing: rectangular, Sensing range: 60 ... 120 m, Connection: Terminals, Output: RELAY SPDT, Material: Metal, Sensing range: 60 m, Housing: 140 x 51 x 46 mm, Material: Aluminium + PC, Additional: Test input
Barrier photocell for industrial doors and gates, Transmitter/Receiver mute function
Photoelectric Through-beam Emitter and Receiver, Range: 60000mm, Infrared light 850nm, Power Supply 12-24Vac/DC, SPDT Relay Output, N.O. and N.C., light and dark switching, Screw Terminals, 51x46x140mm housing
Sensors > Through beam photoelectric sensor
Sensors > Photoelectric Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Scope of delivery of the one-way system (EF004032) | Transmitter and receiver |
| Max. opening angle (EF002642) | 5 ° |
| Pre failure notice (EF004129) | No |
| With time function (EF003582) | No |
| Rated switching distance (EF008289) | 60000 mm |
| Max. switching distance (EF007367) | 120000 mm |
| Max. output current (EF001315) | 1000 mA |
| With reflector (EF007448) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With other analogue output (EF007485) | No |
| Setting procedure (EF003994) | Manual adjustment |
| With communication interface analogue (EF007305) | No |
| With communication interface AS-Interface (EF007306) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface DeviceNet (EF007308) | No |
| With communication interface Ethernet (EF007309) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface PROFIBUS (EF007311) | No |
| With communication interface RS-232 (EF007312) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface RS-485 (EF007314) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Number of contact energized outputs with signalling function (EF003946) | 2 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Screw connection |
| Type of switching output (EF003962) | Relay contact |
| Type of switch function (EF003963) | Change-over contact (NO/NC) |
| Operation agent-safety class (EF003982) | Safety class 2 |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Width sensor (EF007094) | 51 mm |
| Diameter sensor (EF007111) | 0 mm |
| Height of sensor (EF007283) | 46 mm |
| Length of sensor (EF007334) | 140 mm |
| Sensing mode (EF007503) | Light-/dark switching |
| Material of optical surface (EF004134) | Plastic |
| Housing material (EF001596) | Metal |
| Max. output current at protected output (EF004035) | 1000 mA |
| Min. reflector distance (EF004046) | 600 mm |
| Ambient temperature (EF002386) | -25 °C |
| Response time (EF004094) | 8 ms |
| Transmission range of the safety field (EF004098) | 0 m |
| Switching frequency (EF003587) | 10 Hz |
| Type of safety according to IEC 61496-1 (EF004105) | 2 |
| Switching voltage of OSSD at state "high" (EF004102) | 50 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 12 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 12 V |
| Rated control supply voltage DC (EF003980) | 12 V |
| Voltage type (EF000187) | AC/DC |
| With monitoring function downstream switching devices (EF004052) | No |
| Laser protection class (EF004027) | None |
| Wavelength of the sensor (EF004132) | 850 nm |
| Type of light (EF004029) | Infrared light |
| Light dot (EF004030) | 1.075e+7 mm² |
| AWG-number (EF007010) | 16 |
| Material of cable sheath (EF004136) | Other |
| With restart blockage (EF004054) | No |
| Suitable for safety functions (EF001597) | Yes |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
