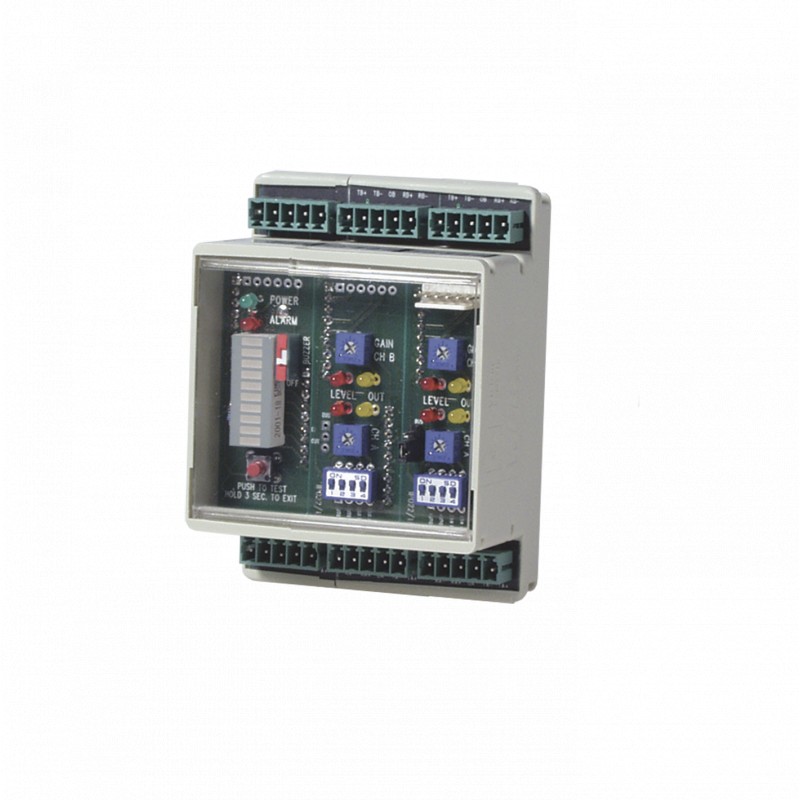

PAM04AN3APO CARLO GAVAZZI System: Photo-Amplifier, Housing: rectangular, Sensing range: 30 ... 50 m, Connect..
PAM04AN3APO
CARLO GAVAZZI
System: Photo-Amplifier, Housing: rectangular, Sensing range: 30 ... 50 m, Connection: Terminals, Output: DC PNP, Material: Plastic, Sensing range: Up to 50 m , Housing: 95 x 69 x 53 mm, Material: PA6 , Additional: 4-Channel
Amplifier relay for photocell series MOFTR, No. channels 4, PNP output, NA
Amplifier for 4 Through Beam sensors, Range up to: 50000mm, Adjustable Sensitivity, Disgnostic Functions, Alignment help, Power Supply : 24VDC, PNP output, NO, DIN-rail with terminals, Test input
Sensors > Through beam photoelectric sensor
Sensors > Photoelectric Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Scope of delivery of the one-way system (EF004032) | Transmitter and receiver |
| Max. opening angle (EF002642) | 0 ° |
| Pre failure notice (EF004129) | Yes |
| With time function (EF003582) | No |
| Rated switching distance (EF008289) | 50000 mm |
| Max. switching distance (EF007367) | 50000 mm |
| Max. output current (EF001315) | 8000 mA |
| Setting procedure (EF003994) | Manual adjustment |
| Number of semiconductor outputs with signalling function (EF003945) | 4 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected semiconductor outputs (EF003951) | 4 |
| Number of protected contact energized outputs (EF003952) | 4 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Screw connection |
| Type of switching output (EF003962) | PNP |
| Type of switch function (EF003963) | Normally open contact (NO) |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Construction type housing (EF004008) | Cuboid |
| Width sensor (EF007094) | 70 mm |
| Diameter sensor (EF007111) | 0 mm |
| Height of sensor (EF007283) | 96 mm |
| Length of sensor (EF007334) | 60 mm |
| Sensing mode (EF007503) | Light-/dark switching |
| Material of optical surface (EF004134) | Plastic |
| Housing material (EF001596) | Plastic |
| Max. output current at protected output (EF004035) | 100 mA |
| Ambient temperature (EF002386) | -20 °C |
| Response time (EF004094) | 15 ms |
| Transmission range of the safety field (EF004098) | 0 m |
| Switching frequency (EF003587) | 33 Hz |
| Type of safety according to IEC 61496-1 (EF004105) | 2 |
| Switching voltage of OSSD at state "high" (EF004102) | 40 V |
| Rated control supply voltage DC (EF003980) | 18 V |
| Voltage type (EF000187) | DC |
| With monitoring function downstream switching devices (EF004052) | No |
| Type of light (EF004029) | Other |
| Light dot (EF004030) | 0 mm² |
| AWG-number (EF007010) | 0 |
| Material of cable sheath (EF004136) | Other |
| With restart blockage (EF004054) | No |
| Suitable for safety functions (EF001597) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| PAM04AN3APO PAM04AN3APO EN_PAM06AN3APO.pdf | 455 Kbytes |
|
