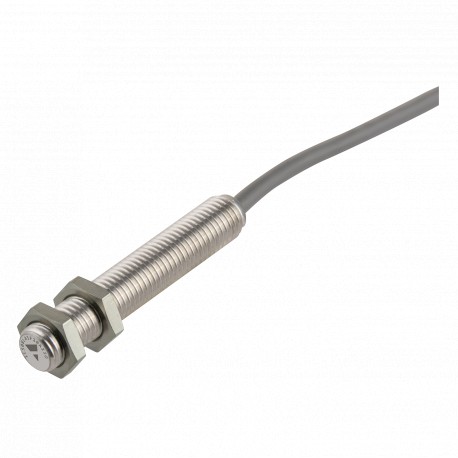

ICS08L45F20A2IO CARLO GAVAZZI Inductive Sensor, 3 wire DC, Metric 8, IO-Link Communication
ICS08L45F20A2IO
CARLO GAVAZZI
Inductive Sensor, 3 wire DC, Metric 8, IO-Link Communication
Inductive proximity sensor, M8 Stainless steel, 2m cable, Sn 2mm, Flush mount, Long body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-30Vdc, Max output current 100 mA, Max switching frequency 2 kHz, Operating temperature -25C - +80C, IP67, IO-Link
Sensors > Inductive proximity switch
Sensors > Inductive Sensors and Loop Detector
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Length of sensor (EF007334) | 46 mm |
| Diameter sensor (EF007111) | 8 mm |
| Mechanical mounting condition for sensor (EF004041) | Concise |
| Switching distance (EF003647) | 2 mm |
| Suitable for safety functions (EF001597) | No |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of switching output (EF003962) | PNP/NPN |
| Type of electric connection (EF003961) | Cable |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of protected semiconductor outputs (EF003951) | 1 |
| Type of actuation (EF006949) | Metallic Target |
| Type of interface (EF006977) | Other |
| Type of interface for safety communication (EF003956) | None |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Coating housing (EF001601) | Other |
| Cascadable (EF000507) | No |
| Max. output current at protected output (EF004035) | 100 mA |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 10 V |
| Voltage type (EF000187) | DC |
| Switching frequency (EF003587) | 2000 Hz |
| Housing material (EF001596) | Metal |
| Compression-resistant (EF007106) | No |
| Interference resistance to magnetic fields (EF008275) | Immune against magnetic DC- and AC-field |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| ICS08L45F20A2IO ICS08L45F20A2IO EN_ICS08S30F20M5IO.pdf | 1 Mbytes |
|
| Download general catalog |
|
