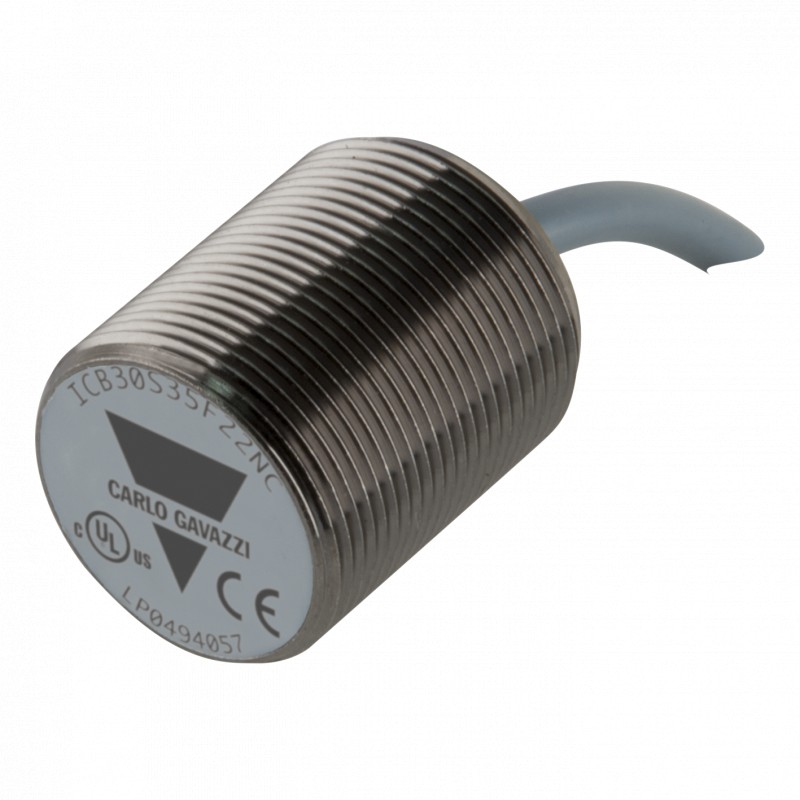

ICB30S35F22PC CARLO GAVAZZI Output function: NC, Mounting: Flush, Housing: M30, Sensing range: 14 to 29 mm ,..
ICB30S35F22PC
CARLO GAVAZZI
Output function: NC, Mounting: Flush, Housing: M30, Sensing range: >14 to 29 mm , Output: DC NPN, Connection: Cable, Wire: 3-wire, Material: Metal, System: Proximity Sensor, Housing: M30 x 35 mm, Material: Nichel Plated Brass, Sensing range: 22 mm, Output function: Normally Closed
Inductive M30 triple reach short box, cable 2 m, semi-recessed mount, detection 22 mm, PNP NC
Inductive proximity sensor, M30 Nickel-Plated Brass, 2m cable, Sn 22mm, Quasi-flush mount, Short body, PNP NC output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 100 Hz, Operating temperature -25C - +70C, IP67
Sensors > Inductive proximity switch
Sensors > Inductive Sensors and Loop Detector
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Width sensor (EF007094) | 0 mm |
| Height of sensor (EF007283) | 0 mm |
| Length of sensor (EF007334) | 35 mm |
| Diameter sensor (EF007111) | 30 mm |
| Mechanical mounting condition for sensor (EF004041) | Quasi-flat |
| Switching distance (EF003647) | 22 mm |
| Suitable for safety functions (EF001597) | No |
| Type of switch function (EF003963) | Breaker contact |
| Type of switching output (EF003962) | PNP |
| Type of electric connection (EF003961) | Cable |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Type of actuation (EF006949) | Metallic Target |
| Type of interface (EF006977) | None |
| Type of interface for safety communication (EF003956) | None |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Coating housing (EF001601) | Nickel-plated |
| Cascadable (EF000507) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Max. output current at protected output (EF004035) | 200 mA |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 10 V |
| Voltage type (EF000187) | DC |
| Switching frequency (EF003587) | 100 Hz |
| With monitoring function downstream switching devices (EF004052) | No |
| Housing material (EF001596) | Metal |
| Compression-resistant (EF007106) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Interference resistance to magnetic fields (EF008275) | Immune against magnetic DC- and AC-field |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| ICB30S35F22PC ICB30S35F22PC EN_ICB30L50N40NC.pdf | 748 Kbytes |
|
