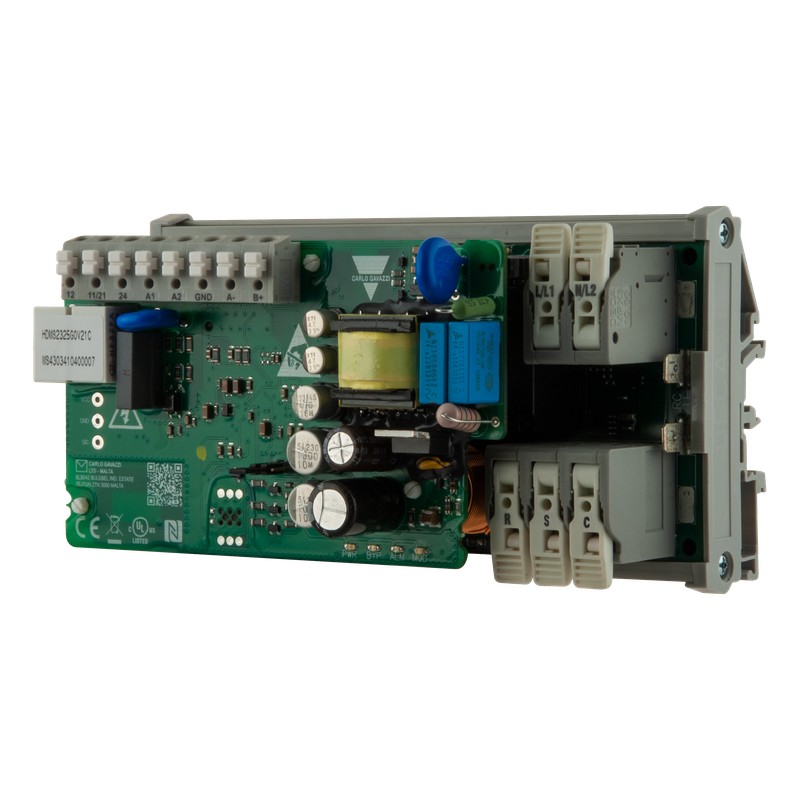

HDMS2337G0V21C CARLO GAVAZZI 1-Phase Dynamic Starter 37A Eu:110-230Vac+Mb-Din View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

HDMS2337G0V21C CARLO GAVAZZI 1-Phase Dynamic Starter 37A Eu:110-230Vac+Mb-Din

HDMS2337G0V21C

CARLO GAVAZZI

1-Phase Dynamic Starter 37A Eu:110-230Vac+Mb-Din

1 phase soft starter for compressors and submersible pumps, Operating voltage (Ue): 110 - 230 Vac , Rated current (Ie): 37Aac, Control voltage (Uc): 110 - 230 Vac , DIN rail mount , NFC communication, Modbus

More details


Low-voltage industrial components > Soft starter

Switches > Frequency Drives and Limit Switches

Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI

Total: $691.85
Unit price: $691.85
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Specifications

Rated operation current Ie at 40 &[176;C Tu
37 A
Rated operating voltage Ue
93.5 V ... 253 V
Rated power three-phase motor, inline, at 230 V
5.5 kW
Rated control supply voltage Us at AC 50HZ
93.5 V ... 253 V
Rated control supply voltage Us at DC
0 V ... 0 V
Internal bypass
Yes
Product Width
85.6 mm
Product Height
153 mm
Product Depth
86.7 mm

ETIM for HDMS2337G0V21C Low-voltage industrial controls and switchgear (EC000640)
Feature Name Feature Value
Rated operation current Ie at 40 °C Tu (EF007039) 37 A
Rated operating voltage Ue (EF002418) 93.5 V
Rated power three-phase motor, inline, at 230 V (EF007053) 5.5 kW
Function (EF000030) Single direction
Internal bypass (EF009214) Yes
With display (EF000458) No
Torque control (EF009215) No
Rated surrounding temperature without derating (EF007074) 65 °C
Rated control supply voltage AC 50 Hz (EF003978) 93.5 V
Rated control supply voltage AC 60 Hz (EF003979) 93.5 V
Rated control supply voltage DC (EF003980) 0 V
Voltage type for actuating (EF008242) AC
Integrated motor overload protection (EF007297) Yes
Release class (EF006668) CLASS 10
Degree of protection (IP) (EF005474) IP00
Degree of protection (NEMA) (EF011959) 1

Datasheet - PDF
