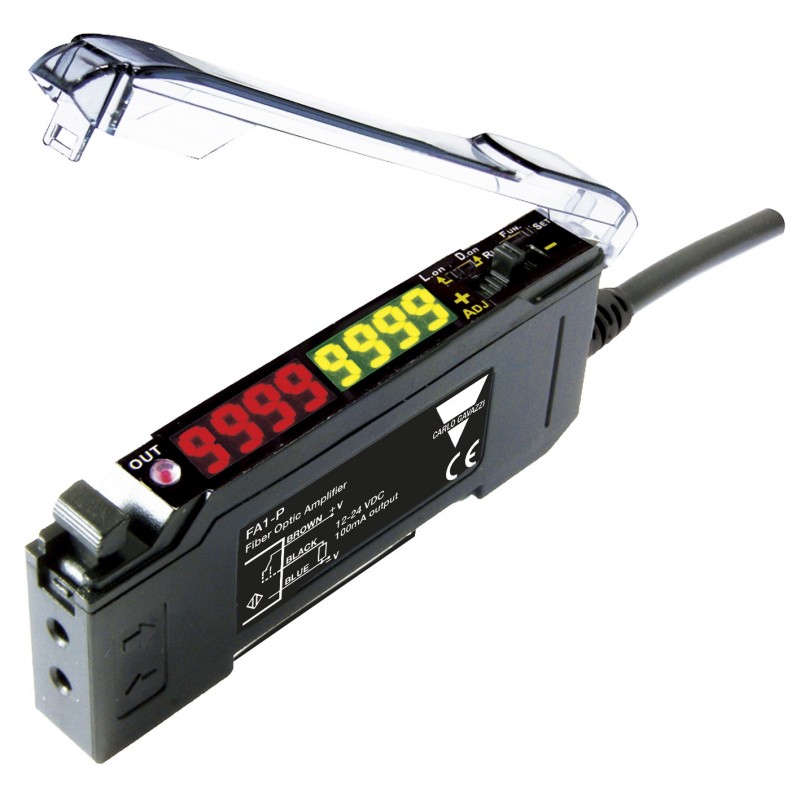

FA1-P CARLO GAVAZZI System: Fiber Optic Amplifier, Connection: Cable, Wire: 3-wire, Function: To be used wit..
FA1-P
CARLO GAVAZZI
System: Fiber Optic Amplifier, Connection: Cable, Wire: 3-wire, Function: To be used with fiber cable FUR FUT, Output: PNP NO&NC, Housing: 10 x 79 x 33 mm, Cable length: 2 m, Material: ABS
Fiber Optic Sensor Amplifier, PNP Output, Box 10 x 33 x 80mm.
Fiber optic amplifier; double LED 4 digits display; PNP NO+NC output; adjustable sensitivity; selectable response time 200-5000us; 2m PVC cable; DIN rail mount; power supply 12-24Vdc; IP40
Sensors > Optical fibre sensor / optical fibre amplifier
Home > CARLO GAVAZZI
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Type of electric connection (EF003961) | Cable |
| Type of switching output (EF003962) | PNP |
| Type of switch function (EF003963) | Programmable/configurable |
| With blanking function (EF003968) | No |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 12 V |
| Voltage type (EF000187) | DC |
| Width amplifier (EF007095) | 10 mm |
| Height amplifier (EF007284) | 33 mm |
| Length amplifier (EF007335) | 79.35 mm |
| Diameter sensor (EF007111) | 0 mm |
| Indication (EF000350) | Digital |
| Setting procedure (EF003994) | Manual adjustment |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Other |
| No-load current (EF004028) | 0 mA |
| Type of light (EF004029) | Polarized red light |
| Max. output current (EF001315) | 100 mA |
| Nominal operating distance (EF004059) | 0 mm |
| Switching frequency (EF003587) | 2500 Hz |
| Degree of protection (IP) (EF005474) | IP40 |
| Ambient temperature (EF002386) | 0 °C |
| Housing material (EF001596) | Plastic |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Material fibre optics core (EF004137) | Other |
| With time function (EF003582) | Yes |
| AWG-number (EF007010) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| FA1-P FA1-P EN_FA1-N.pdf | 908 Kbytes |
|
