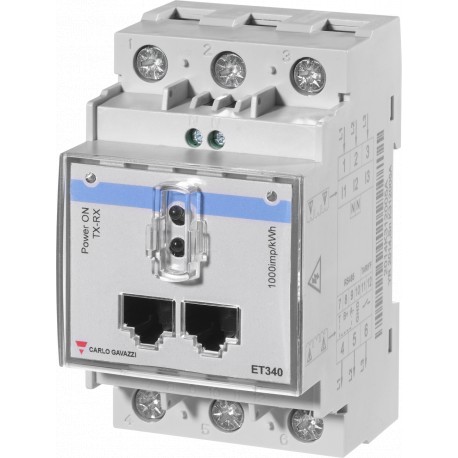

ET340DINAV23XS1X CARLO GAVAZZI Function: Transducers, Mounting: DIN Rail, Power supply: Self power supply, I..
ET340DINAV23XS1X
CARLO GAVAZZI
Function: Transducers, Mounting: DIN Rail, Power supply: Self power supply, Input type: 3-phase AC , Connection: Direct, Communication: Dual RS485 serial communication port, Range: 208VLL to 400VLL 5(65)A, Display: None , Variables: kWh, kvarh, V, A, W, Wdmd, Wdmd max, var, PF, Hz, Digital inputs: 1, Pulse: none, Alarms: none, Analogue: none

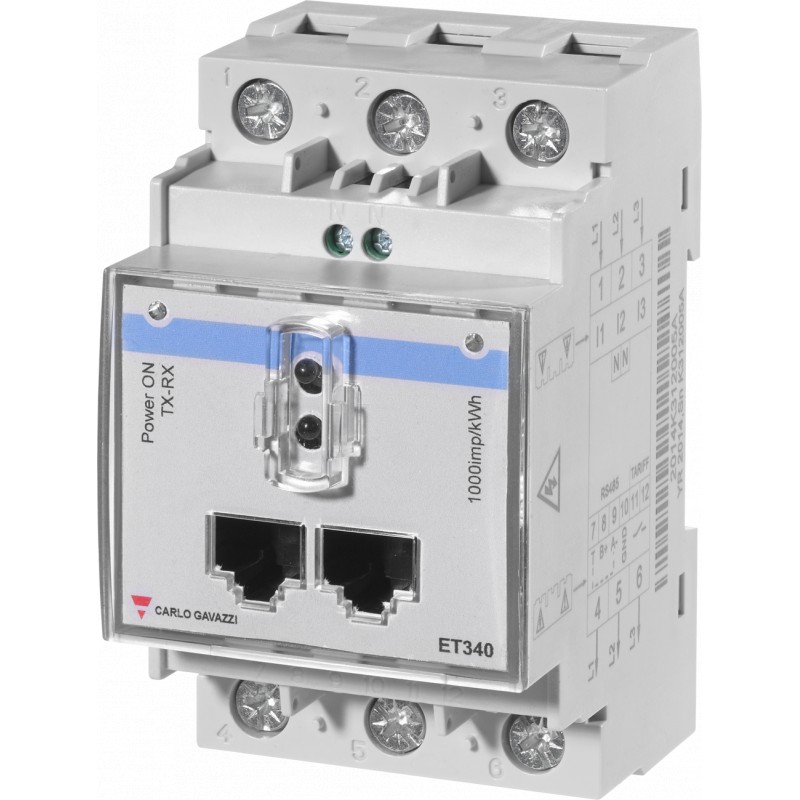

Compact three-phase power transducer, DIN rail, Direct connection up to 65 A
Three-phase Energy Transducer, 120 to 230 V L-N, 208 to 400 V L-L, 5 (65) A, RS485 Modbus RTU
Meters > Kilowatt-hour meter
Controls > Counters
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 5 A |
| Max. current (Imax) (EF000877) | 65 A |
| Nominal voltage (Un) N-L (EF008871) | 120 V |
| Nominal voltage (Un) L-L (EF008872) | 208 V |
| Frequency (EF000416) | 50 Hz |
| Pole type (EF008843) | Three conductor/four conductor |
| Model (EF000010) | Direct measurement |
| Energy type (EF007135) | Effective power and reactive power |
| Suitable for (EF000073) | Purchase/supply |
| Tariff type (EF007550) | Two-tariff |
| Tariff control (EF008834) | External |
| Calibrated (EF008836) | Yes |
| Pulse output (EF008838) | Optic |
| Pulse rate (EF008840) | 1000 Imp/kWh (kvarh) |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Width in number of modular spacings (EF002950) | 3 |
| Type of interface (EF006977) | Modbus |
| With lock code (EF008846) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| ET340DINAV23XS1X ET340DINAV23XS1X EN_ET340DINAV23XS1X.pdf | 380 Kbytes |
|
