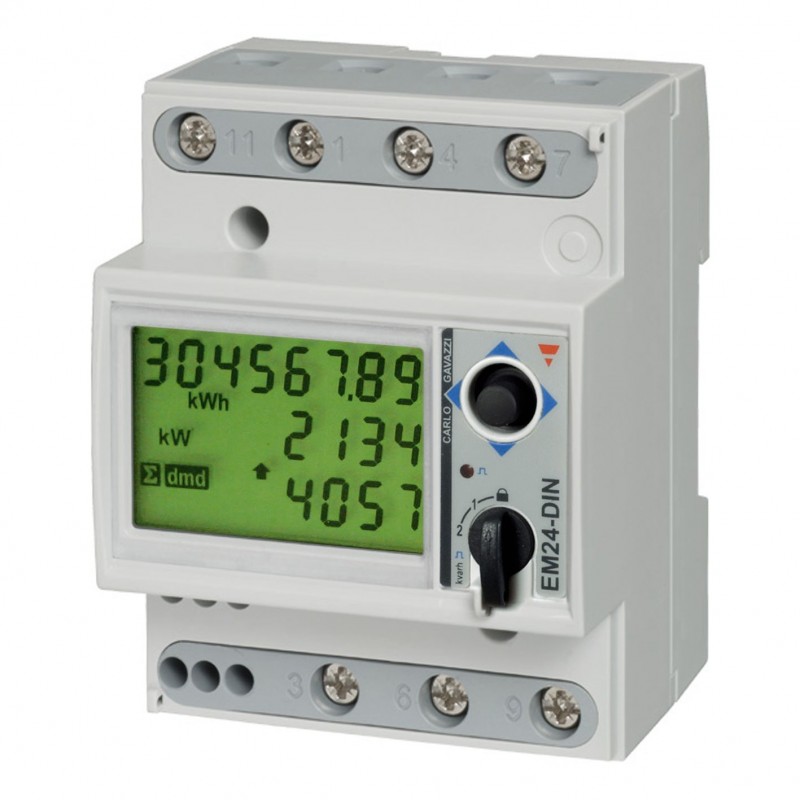

EM24DINAV63DM2X CARLO GAVAZZI Function: Energy analyzer , Mounting: DIN Rail, Power supply: 230VAC, Output d..
EM24DINAV63DM2X
CARLO GAVAZZI
Function: Energy analyzer , Mounting: DIN Rail, Power supply: 230VAC, Output digital input: Digital Input , Input type: 3-phase AC , Connection: CT/VT, Communication: M-bus, Range: 70V to 250 VLL 1/5(10)A , Display: 7+1 DGT , Variables: kWh, kvarh, VLL, VLN, Admd max, VA, VAdmd, VAdmd max, W, Wdmd, Wdmd max, var, PF, Hz, Phase-sequence, Digital inputs: 3, Pulse: none, Alarms: none, Analogue: none
Network analyzer three-phase, compact, Connection by CT /5A, Reading energies/gas/water
Three-phase Energy analyzer, 57.7 to 120 V L-N, 100 to 208 V L-L, 5 (10) A, M-Bus
Meters > Kilowatt-hour meter
Controls > Monitoring Relays and Measurement Current Transformers
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 5 A |
| Max. current (Imax) (EF000877) | 10 A |
| Nominal voltage (Un) N-L (EF008871) | 57.7 V |
| Nominal voltage (Un) L-L (EF008872) | 100 V |
| Frequency (EF000416) | 50 Hz |
| Pole type (EF008843) | Three conductor/four conductor |
| Model (EF000010) | Measurement transformer |
| Energy type (EF007135) | Effective power and reactive power |
| Suitable for (EF000073) | Purchase/supply |
| Tariff type (EF007550) | Multi-tariff |
| Tariff control (EF008834) | External |
| Calibrated (EF008836) | Yes |
| Pulse output (EF008838) | Optic |
| Pulse rate (EF008840) | 1000 Imp/kWh (kvarh) |
| Type of indication (EF000306) | Digital |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Width in number of modular spacings (EF002950) | 4 |
| Type of interface (EF006977) | M-bus |
| With lock code (EF008846) | Yes |
| Number of positions total (counter) (EF004442) | 8 |
| Degree of protection (IP) (EF005474) | IP50 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| EM24DINAV63DM2X EM24DINAV63DM2X EN_EM24DINAV93XISPFA.pdf | 1 Mbytes |
|
| Download general catalog |
|
