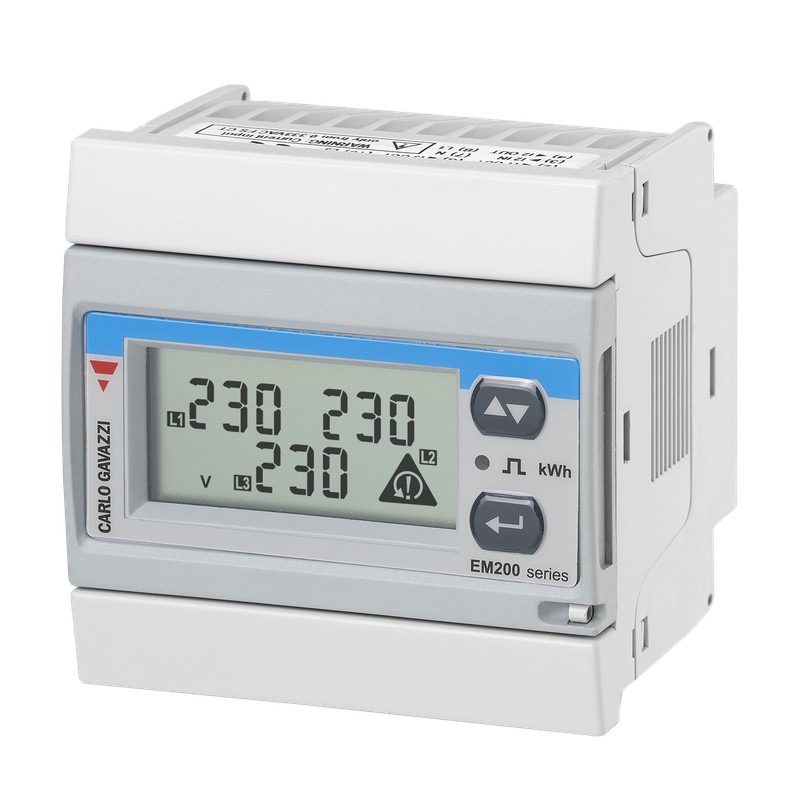

EM21072DAV53HOSPFBP CARLO GAVAZZI Function: MID Energy analyzer , Mounting: Panel, Power supply: 65 to 400 V..
EM21072DAV53HOSPFBP
CARLO GAVAZZI
Function: MID Energy analyzer , Mounting: Panel, Power supply: 65 to 400 V AC, Output digital input: DC/AC output (Opto Mosfet) , Input type: 3-phase AC , Connection: CT/VT, Communication: RS485 , Range: 400VLL AC 5(6)A or 1(6)A , Display: 6+1 DGT , Variables: W, var, PF, Hz, Phase-sequence, Digital inputs: none, Pulse: 1, Alarms: none, Analogue: none
Energy meter electrical three phase, Display removable, intensity Input /5A, Certificate MID
Three-phase MID Energy analyzer, 160 to 240 V L-N, 277 to 415 V L-L, 5 (6) A, RS485 Modbus RTU Pulse output
Meters > Kilowatt-hour meter
Controls > Digital Panel Meters and temperature
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 5 A |
| Max. current (Imax) (EF000877) | 6 A |
| Nominal voltage (Un) N-L (EF008871) | 160 V |
| Nominal voltage (Un) L-L (EF008872) | 277 V |
| Frequency (EF000416) | 50 Hz |
| Accuracy class (EF008842) | B |
| Pole type (EF008843) | Three conductor/four conductor |
| Model (EF000010) | Measurement transformer |
| Energy type (EF007135) | Effective power and reactive power |
| Suitable for (EF000073) | Purchase/supply |
| Calibrated (EF008836) | Yes |
| Approval (EF008837) | Measuring Instruments Directive |
| Pulse output (EF008838) | Optic |
| Pulse rate (EF008840) | 10 Imp/kWh (kvarh) |
| Type of indication (EF000306) | Digital |
| Mounting method (EF000003) | EV000071 |
| Width in number of modular spacings (EF002950) | 4 |
| Type of interface (EF006977) | RS-485 |
| With lock code (EF008846) | Yes |
| Number of positions total (counter) (EF004442) | 7 |
| Degree of protection (IP) (EF005474) | IP40 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| EM21072DAV53HOSPFBP EM21072DAV53HOSPFBP EN_EM21072DAV53HOSPFAD.pdf | 680 Kbytes |
|
| Download general catalog |
|
