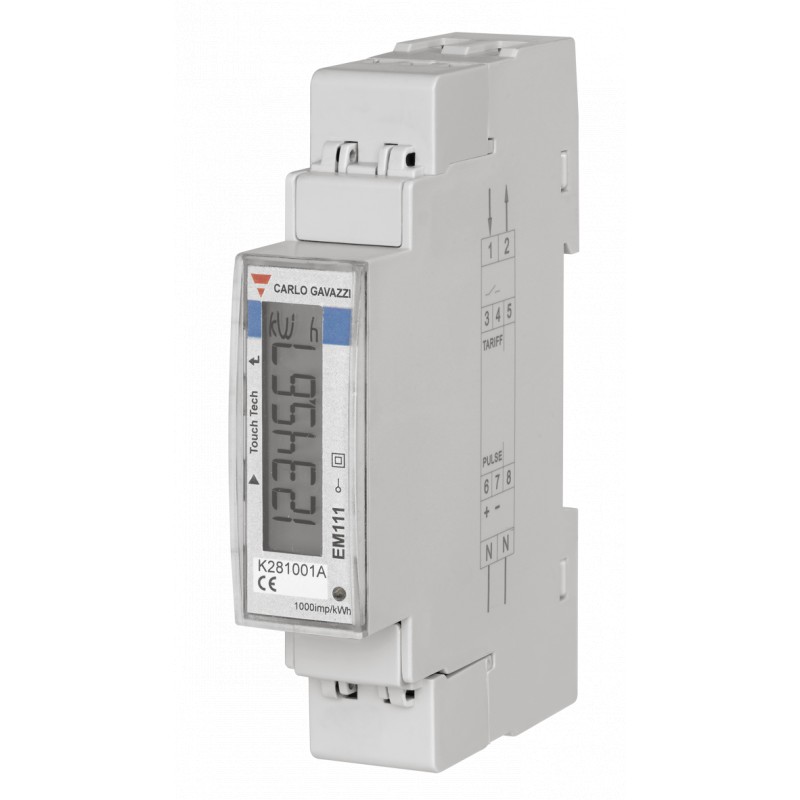

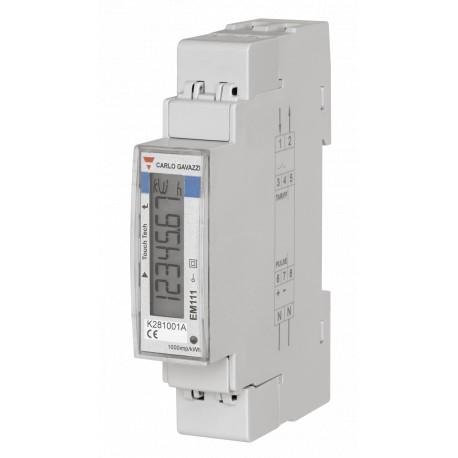

EM111DINAV81XM1PFA CARLO GAVAZZI Function: MID Energy analyzer , Mounting: DIN Rail, Power supply: Self powe..
EM111DINAV81XM1PFA
CARLO GAVAZZI
Function: MID Energy analyzer , Mounting: DIN Rail, Power supply: Self power supply, Output digital input: None, Input type: 1-phase AC , Connection: Direct, Communication: M-bus, Range: 230 VLN AC 45A, Display: 7 DGT, Variables: kWh, kvarh, V, A, W, Wdmd, Wdmd max, var, PF, Hz, Digital inputs: none, Pulse: none, Alarms: none, Analogue: none
Energy meter for measurement systems, single-phase, certificate MID, Mounting DIN rail
Single-Phase MID Energy analyzer, 230 V L-N, 5 (45) A, M-Bus
Meters > Kilowatt-hour meter
Controls > Counters
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 5 A |
| Max. current (Imax) (EF000877) | 45 A |
| Nominal voltage (Un) N-L (EF008871) | 230 V |
| Frequency (EF000416) | 50 Hz |
| Accuracy class (EF008842) | B |
| Pole type (EF008843) | Single phase |
| Model (EF000010) | Direct measurement |
| Energy type (EF007135) | Effective power and reactive power |
| Suitable for (EF000073) | Purchase |
| Tariff type (EF007550) | Two-tariff |
| Tariff control (EF008834) | External |
| Calibrated (EF008836) | Yes |
| Approval (EF008837) | Measuring Instruments Directive |
| Pulse output (EF008838) | Optic |
| Pulse rate (EF008840) | 1000 Imp/kWh (kvarh) |
| Type of indication (EF000306) | Digital |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Width in number of modular spacings (EF002950) | 1 |
| Type of interface (EF006977) | M-bus |
| With lock code (EF008846) | Yes |
| Number of positions total (counter) (EF004442) | 7 |
| Degree of protection (IP) (EF005474) | IP51 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| EM111DINAV81XM1PFA EM111DINAV81XM1PFA EN_EM111DINAV81XM1X.pdf | 500 Kbytes |
|
