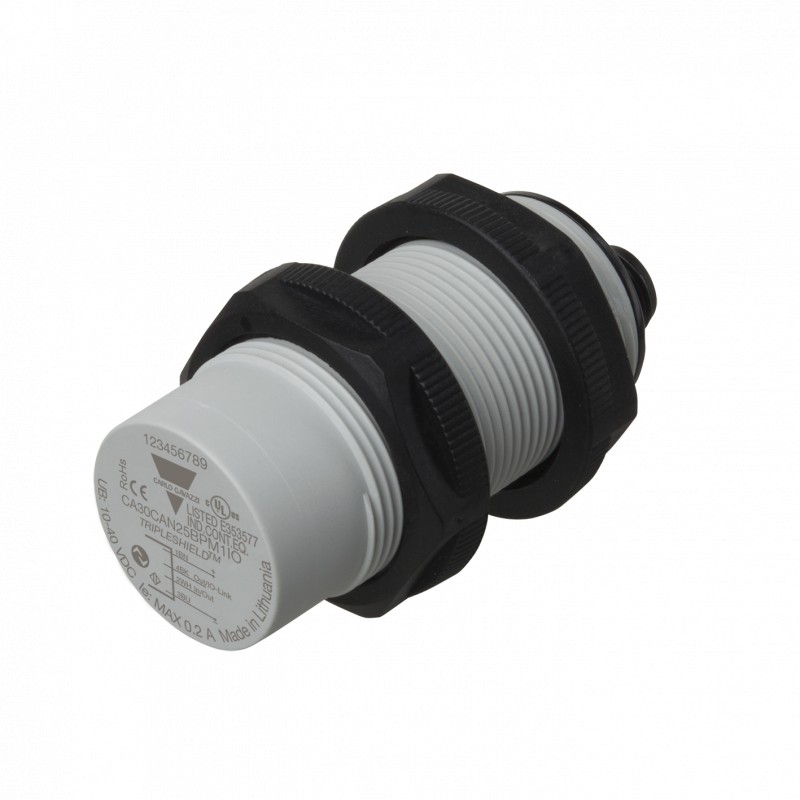

CA30CAN25BPM1IO CARLO GAVAZZI Connection: M12 Plug DC, Material: Plastic, Housing: M30, Sensing range: 20 to..
CA30CAN25BPM1IO
CARLO GAVAZZI
Connection: M12 Plug DC, Material: Plastic, Housing: M30, Sensing range: >20 to 30 mm, Output: DCÂ PNP/NPN, System: Sensor, Housing: M30 x 62,5 mm, Sensing range: 25 mm, Material: Thermoplastic Polyester, Additional: IO-Link
Capacitive protocol IO-Link-M30, Connector M12, Output NC or NA, Mounting non-flush, Sensing 25mm
Capacitive Proximity Sensor, Non-flush mountable, Sensing Range 25mm, Adjustable 4-30mm, Power Supply 10-40VDC, NPN/PNP Output, N.O./N.C., IO-Link Connector M12, Housing M30 x 61mm, 4th Generation Tripleshield, Improved EMC performances, ECOLAB, IP67 IP69K
Sensors > Capacitive proximity switch
Sensors > Capacitive Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by CARLO GAVAZZI
Best sellers
▲More info
▲Specifications
| Feature Name | Feature Value |
|---|---|
| Length of sensor (EF007334) | 61 mm |
| Diameter sensor (EF007111) | 30 mm |
| Mechanical mounting condition for sensor (EF004041) | Not flat |
| Switching distance (EF003647) | 25 mm |
| Suitable for safety functions (EF001597) | No |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of switching output (EF003962) | PNP/NPN |
| Type of electric connection (EF003961) | Connector M12 |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Number of protected semiconductor outputs (EF003951) | 2 |
| Type of actuation (EF006949) | Metallic Target |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Coating housing (EF001601) | Other |
| Cascadable (EF000507) | No |
| Max. output current at protected output (EF004035) | 200 mA |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 12 V |
| Voltage type (EF000187) | DC |
| Switching frequency (EF003587) | 50 Hz |
| With monitoring function downstream switching devices (EF004052) | No |
| With status indication (EF001602) | Yes |
| Housing material (EF001596) | Plastic |
| Compression-resistant (EF007106) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CARLO GAVAZZI EN.pdf | 3 Mbytes |
|
| CA30CAN25BPM1IO CA30CAN25BPM1IO EN_CA30CAF16BPA2IO.pdf | 2 Mbytes |
|
