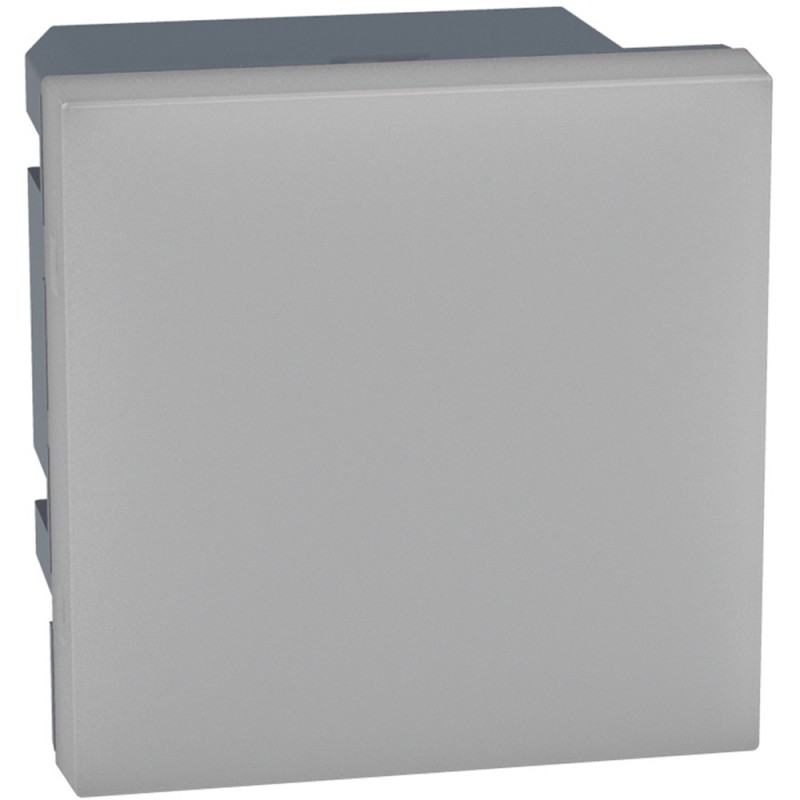

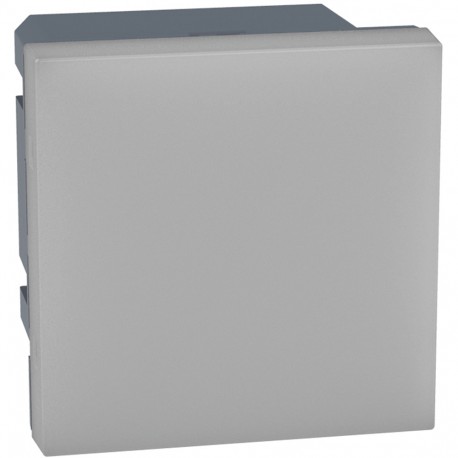

Y4370V12 BTCINO LW-LAMP. SIGNAL. 12/24V 2M
Y4370V12
BTICINO
10
LW-LAMP. SIGNAL. 12/24V 2M
Light indicator light 12/24V Light Now - 2 modules
Domestic switching devices > Information light signal for domestic switching devices
MATIX MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO
Best sellers
▲More info
▲| Type of mounting | Complete device, Recessed mounted (plaster) |
|---|---|
| Number of modules (in case of modular design) | 2 |
| Lamp holder | none |
| With light source | Yes |
| Lamp | Non-interchangeable LED |
| With flashing light | No |
| With fixed symbol/printing | No |
| With interchangeable symbol | No |
| Can be used as a pushbutton | No |
| Attachment Type | Lock in position |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7030 |
| Transparent | No |
| Lamp color | Other |
| Suitable for protection grade (IP) | IP20 |
| Nominal Voltage | 24 V |
| Lamp power max. | 0.5 W |
|---|---|
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 38.5 mm |
| Min. depth of the recessed box | 40.5 mm |
| Installation Depth | 30.5 mm |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | No |
| Compliant with commissioning tests (1000 V) | No |
| Antibacterial treatment | No |
| Connection Method | Screw-on terminal |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Label Space/Print Area | No |
| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 0.5 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Lamp type (EF002423) | LED non-replaceable |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Engage (snap) |
| Mounting method (EF000003) | Flush mounted |
| Nominal voltage (EF000002) | 24 V |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| Min. depth of built-in installation box (EF012278) | 40.5 mm |
| Colour light source (EF001402) | Other |
| Surface protection (EF000139) | Untreated |
| With light source (EF005905) | Yes |
| With fixed symbol/imprint (EF007949) | No |
| RAL-number (similar) (EF003882) | 7030 |
| With flashlight (EF006575) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 38.5 mm |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Complete device |
| Application as button (EF003912) | No |
| Device height (EF008809) | 45 mm |
| Lamp holder (EF000048) | None |
| Colour (EF000007) | Grey |
| With exchangeable symbol (EF006748) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BTICINO EN .pdf | 19 Mbytes |
|
| Y4370V12 EN_Y4370V12.pdf | 356 Kbytes |
|
