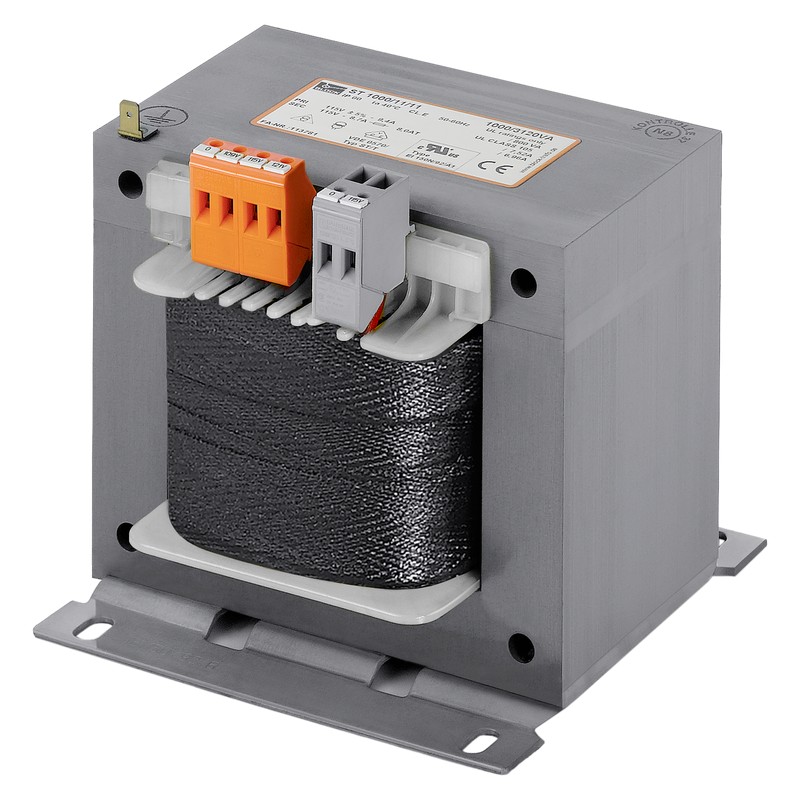

ST 250/4/23
BLOCK
1
transformers
* Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General Data Rated input voltage 230 ‑ 690 Vac Rated output voltage 12 ‑ 230 Vac Rated power 20 ‑ 2500 VA Insulation class B Maximum ambient temperature 40 °C Efficiency up to 96 % Degree of protection IP 00 Advantages Very good switch‑on behaviour thanks to reduced starting currents High performance for the volume thanks to compact design Primary side ±5 % tappings for voltage adjustment Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation Contact protected screw connection terminals complying with UVV BGV A3 Simple mounting thanks to robust metal footplate with oval slots Standards Control transformerto: VDE 0570 Teil 2‑2, DIN EN 61558‑2‑2, EN 61558‑2‑2, IEC 61558‑2‑2, UL 5085‑1/‑2, CSA 22.2 No.66 Safety isolating transformerto: VDE 0570 Teil 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 5085‑1/‑2, CSA 22.2 No.66 Isolating transformerto: VDE 0570 Part2‑4, DIN EN 61558‑2‑4, EN 61558‑2‑4, IEC 61558‑2‑4, UL 5085‑1/‑2, CSA 22.2 No.66 Approvals ENEC 10 (VDE), UL 5085‑1/‑2, CSA 22.2 No.66 As a control transformer for the electrical isolation of the input and output sides.The construction of the transformer to supply control systems according to VDE 0113 is designed. As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100. As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
Title: | Size: | Type: |
---|---|---|
PDF CATÁLOGO BLOCK EN.pdf | 61 Mbytes | |
BLOCK-ST250423-ST 250/4/23 | 984 Kbytes | |
Download general catalog |
