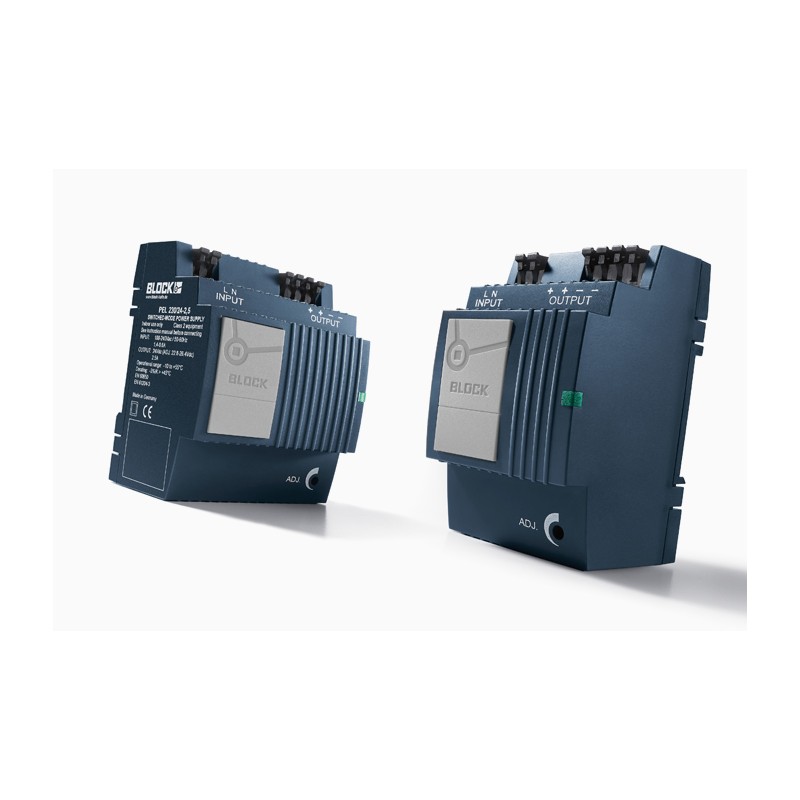

PEL 230/12-2 BLOCK Switch Mode Power Supplies
PEL 230/12-2
BLOCK
Switch Mode Power Supplies
Switch Mode Power Supplies PEL 230/12-2
Sources and Fuses
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲General Data Input voltage range 85 ‑ 264 Vac Output rated voltage 5 ‑ 24 Vdc Output rated current 1.3 ‑ 6.5 A Ambient temperature ‑25 °C to +55 °C Efficiency up to 88 % Protection index IP 20 Advantages Stabilised and adjustable output voltage DC OK signalling via LEDs Parallel connection option Service‑friendly spring‑loaded connector system Panel installation on mounting rails Standards Primary switched mode power supplyto UL 60950, UL 508 Safety:EN 61558‑2‑16, EN 60950‑1 EMC:EN 61204‑3 Approvals UL/CSA 60950 recognised (E213214), UL508 listed (E219022), Germanischer Lloyd Primary switched mode power supply is concentrated on the core task of voltage and current supply. Flat step profile optimised for installation in control panels in the building automation.
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| BLOCK-PEL230122-PEL 230/12-2 | 426 Kbytes |
|
| Download general catalog |
|
