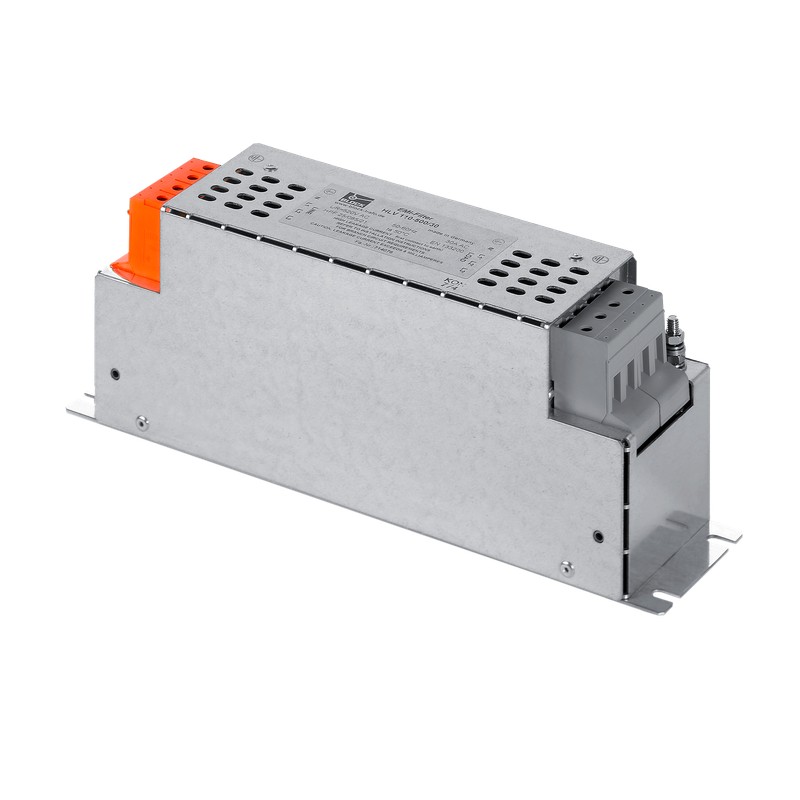

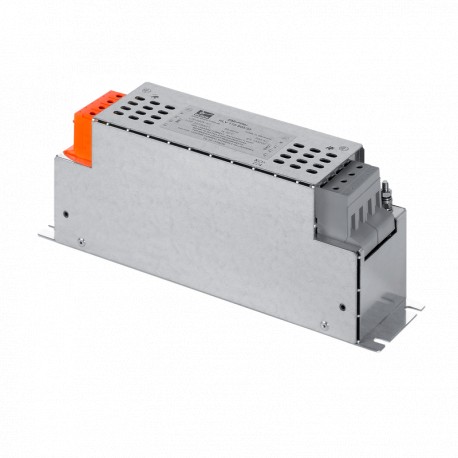

HLV 110-500/130 BLOCK EMI Filter
HLV 110-500/130
BLOCK
EMI Filter
EMI Filter HLV 110-500/130
Radio interference suppression filter with neutral conductor, three-phase
electrical stabilizers filters
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›For enhanced requirements
›Single-stage filter concept
›Efficient filter effect against line-bound interference emissions
›Increase in the interference immunity of the connected consumer
| Product | Radio interference suppression filter with neutral conductor, three-phase |
| Order number | HLV 110-500/130 |
| Series | HLV 110 |
| Inductance | 3x 0.57 mH + N |
| Rated current | 3x 130 Aac + N |
| Rated voltage range | 0 V to 520 V |
| Rated voltage | 480 V |
| Phases | 3+N |
| Frequency range | 50 Hz to 60 Hz |
| Motor or converter power | 45 kW / 60.35 HP |
| EN Insulation class | A (105°C) |
| Duty Cycle | 100 % |
| Power loss | 71.60 W |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
Environment
| Ambient temperature | -25 °C to 50 °C / -13 °F to 122 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP20 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 115 mm / 4.53 in |
| Height | 150 mm / 5.91 in |
| Depth | 375 mm / 14.76 in |
| Weight | 6.92 kg / 15.256 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| BLOCK-HLV110500130-HLV 110-500/130 | 860 Kbytes |
|
| Download general catalog |
|
