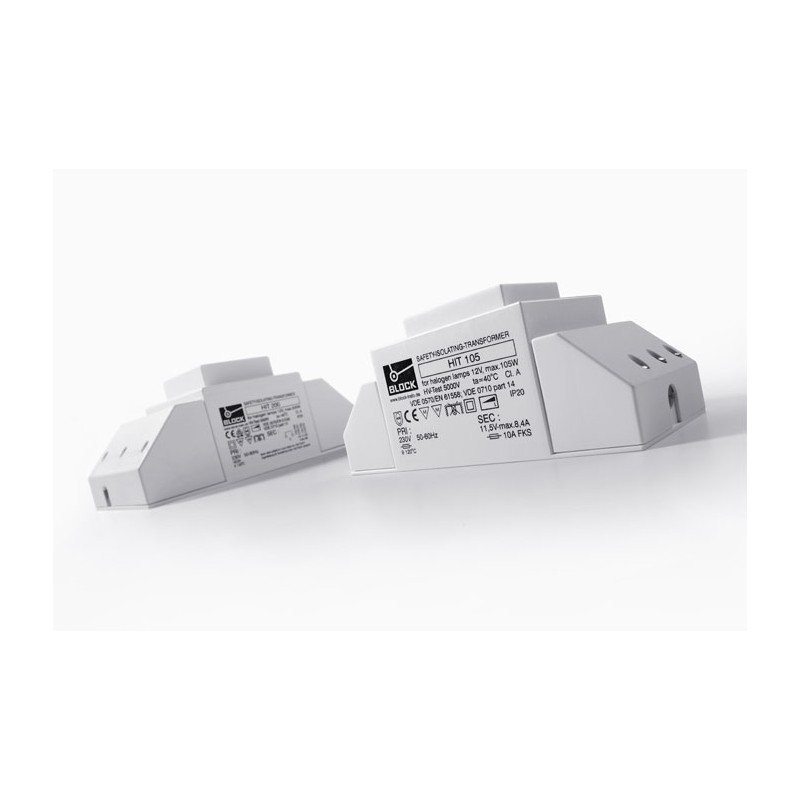

HIT 250
BLOCK
1
Safety-Isolating Transformers
transformers
* Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General Data Rated input voltage 230 Vac Rated output voltage 11.3 ‑ 11.5 Vac Rated output 60 ‑ 300 W Insulation class A Maximum ambient temperature 40 °C Efficiency up to 92 % Degree of protection IP 20 Advantages Integrated short circuit and overload protection Very good moisture protection and low noise thanks to XtraDenseFill resin encapsulation Screw terminals under cover with strain relief Standards Safety isolating transformer for halogen lampsto: VDE 0570 Teil 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6 Safety isolating transformer for 12 V halogen lamps for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
Title: | Size: | Type: |
---|---|---|
PDF CATÁLOGO BLOCK EN.pdf | 61 Mbytes | |
BLOCK-HIT250-HIT 250 | 875 Kbytes | |
Download general catalog |
