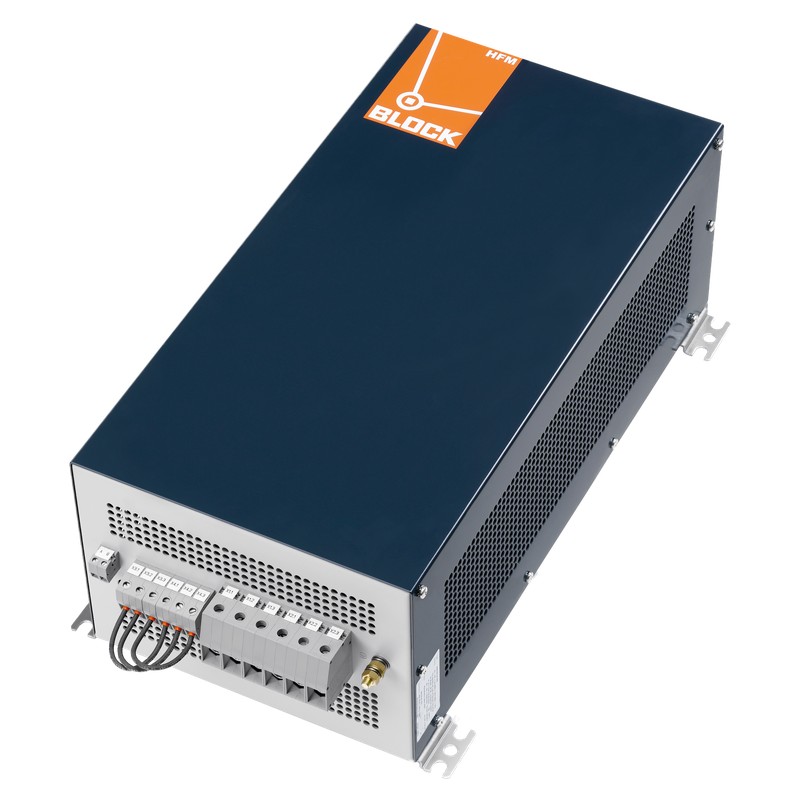

HFM-FB 30-400 BLOCK Harmonic Filter
HFM-FB 30-400
BLOCK
Harmonic Filter
Harmonic Filter HFM-FB 30-400
Harmonic filter, three-phase
electrical stabilizers filters
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Sinusoidal current consumption from the main in devices with uncontrolled B6U diode rectifiers or controlled B6C thyristor bridges
›Compliance with EN 61000-3-2, EN 61000-3-12
›Support in the compliance with IEEE 519, D-A-CH-CZ
›Cos(phi) 0,95 at rated current
›Hardly any intermediate circuit voltage dip by comparison with a 4 % uK line reactor
›Use of the HFM as a central sum filter for multiple converters possible
| Product | Harmonic filter, three-phase |
| Order number | HFM-FB 30-400 |
| Series | HFM-FB |
| Inductance | 3x 0 mH |
| Rated current | 3x 43 Aac |
| Linear current | 3x 64.5 Aac |
| Rated voltage range | 380 V to 420 V |
| Rated voltage | 400 V |
| Phases | 3 |
| Frequency range | 50 Hz |
| EN Insulation class | F (155°C) |
| UL Insulation class | class 155 |
| Duty Cycle | 100 % |
| Power loss | 275.00 W |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
| Switching group | III0 |
| Temperature monitoring | Bi-Metall Schalter |
Environment
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 885 mm / 34.84 in |
| Height | 225 mm / 8.86 in |
| Depth | 357 mm / 14.06 in |
| Weight | 55 kg / 121.254 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| BLOCK-HFMFB30400-HFM-FB 30-400 | 987 Kbytes |
|
