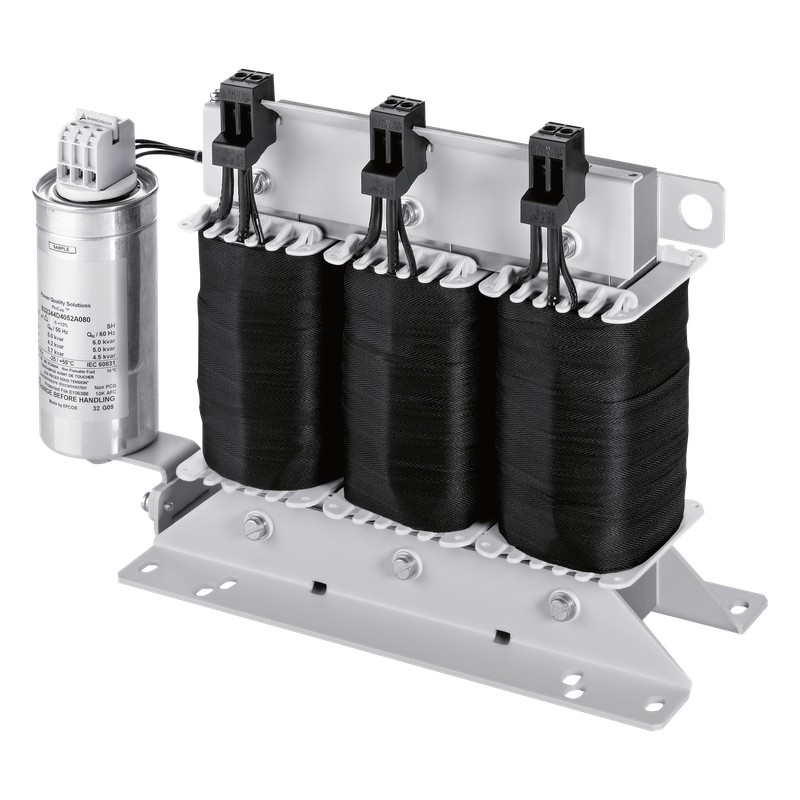

HF1K 100-400 BLOCK Harmonic Filter
HF1K 100-400
BLOCK
Harmonic Filter
Harmonic Filter HF1K 100-400
Harmonic filter, three-phase
electrical stabilizers filters
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Sinusoidal current consumption from the main in devices with uncontrolled B6U diode rectifiers
›Compliance with EN 61000-3-2, EN 61000-3-12
›Support in the compliance with IEEE 519, D-A-CH-CZ
›Cos(phi) 0,95 at rated current
›Hardly any intermediate circuit voltage dip by comparison with a 4 % uK line reactor
›Harmonic filter with minimum capacitive idle reactive power
›Very good corrosion protection and low noise thanks to vacuum impregnation
›Operation at 50 - 60 Hz possible
›Use of the HF1K as a central hum filter for multiple converters possible
| Product | Harmonic filter, three-phase |
| Order number | HF1K 100-400 |
| Series | HF1K |
| Inductance | 3x 2 mH |
| Rated current | 3x 145 Aac |
| Linear current | 3x 217.5 Aac |
| Rated voltage range | 360 V to 440 V |
| Rated voltage | 400 V |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| Motor or converter power | 90 kW / 120.69 HP |
| EN Insulation class | H (180°C) |
| UL Insulation class | class 180 |
| Duty Cycle | 100 % |
| Power loss | 750.00 W |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
| Switching group | III0 |
Environment
| Ambient temperature | -10 °C to 45 °C / 14 °F to 113 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Flat copper connection |
| Output terminal | Flat copper connection |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 685 mm / 26.97 in |
| Height | 426 mm / 16.77 in |
| Depth | 300 mm / 11.81 in |
| Weight | 178 kg / 392.422 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| Download general catalog |
|
