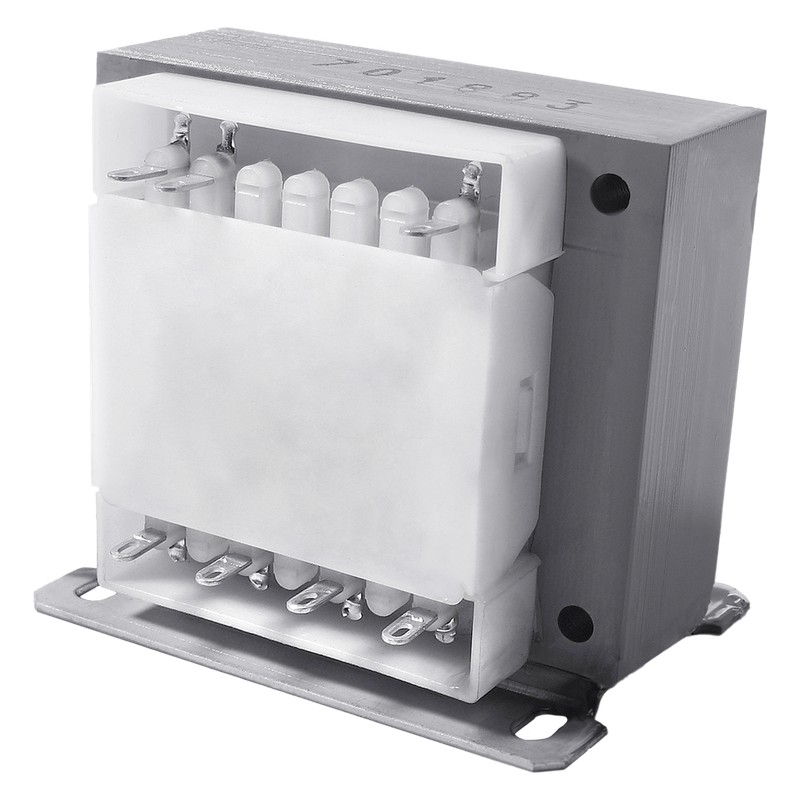

EL 18/15 BLOCK Control Transformers
EL 18/15
BLOCK
Control Transformers
Safety-Isolating Transformers EL 18/15
Safety isolating transformer
transformers
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲The safety transformers of the EL series provide safe galvanic isolation of the primary circuit from the secondary circuit and are manufactured according to EN (IEC) 61558-2-6. By limiting the output voltage, the transformers are suitable for the construction of SELV and PELV circuits.
›Solder connection for free wiring
›With dual output coils for series and parallel connection
›Excellent corrosion protection and low noise emission thanks to BLOCK IMPEX vacuum impregnation
›Easy mounting with a sturdy metal base plate featuring elongated holes
| Product | Safety isolating transformer |
| Order number | EL 18/15 |
| Series | EL |
| Power | 18 VA |
| Input | 230 V |
| Output | 2 x 15 V • 0.6 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| No-Load Losses | 2.7 W |
| EN Insulation class | E (120°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 72 % |
General
| Short circuit proof | not short-circuit proof |
| Switching group | Iii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Soldering eye |
| Output terminal | Soldering eye |
Size and Weight
| Width | 60 mm / 2.36 in |
| Height | 47 mm / 1.85 in |
| Depth | 55 mm / 2.17 in |
| Weight | 0.498 kg / 1.098 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| EL 18/15 EL 18/15 EN_EL 18_15.pdf | 332 Kbytes |
|
