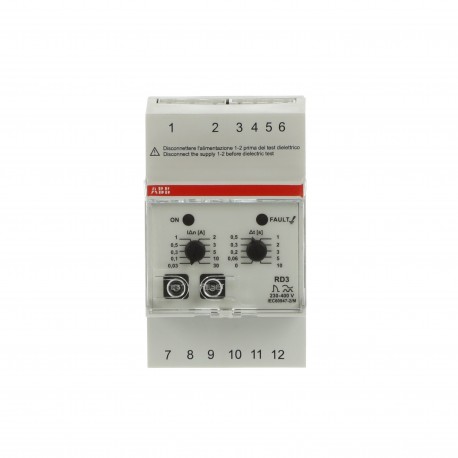

RD3 2CSJ201001R0002 ABB PROT. DIF. RD3 230-400V RD3 Residual Current Monitor
RD3
2CSJ201001R0002
ABB
PROT. DIF. RD3 230-400V RD3 - Residual Current Monitor
Residual Current Monitor RD3 - Type A
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Type of Residual Current | Type A |
| Function | For mixed system |
| Current Rating | Response value amperage 1 500 ... 500 mA |
| Number of Contacts | 2 |
| Delay Time (τ) | Delay-On Energization, Maximum, Permitted 10 second [unit of time] |
| Delay-On Energization, Minimum, Adjustable 0 second [unit of time] | |
| Filter Option | no frequency filter |
| Options Provided | Pre-alarm threshold: no |
| Electrical | |
| Rated Voltage (Ur) | 400...400 V |
| Rated Operational Voltage | 230 ... 400 V AC |
| Rated Control Supply Voltage (Us) | (50 Hz) 400...400 V |
| (60 Hz) 400...400 V | |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | Total 3.6 W |
| Number of Contacts CO | 1 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5628 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220119 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Dimensions | |
| Product Net Width | 52.8 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 223 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.307 kg |
| E-Number (Finland) | 2712037 |
| E-Number (Norway) | 1629772 |
| E-Number (Sweden) | 2100356 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5628 |
| Installation | |
| Instructions and Manuals | 2CSF423005D1002 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0424 |
| External Classifications and Standards | |
| ETIM 9 | EC001445 - Residual current monitoring relay |
| ETIM 10 | EC001445 - Residual current monitoring relay |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27371809 |
| IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F |
| Standards | IEC EN 60947-2 Ann M |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF MINIATURE CIRCUIT BREAKERS EN .pdf | 37 Mbytes |
|
