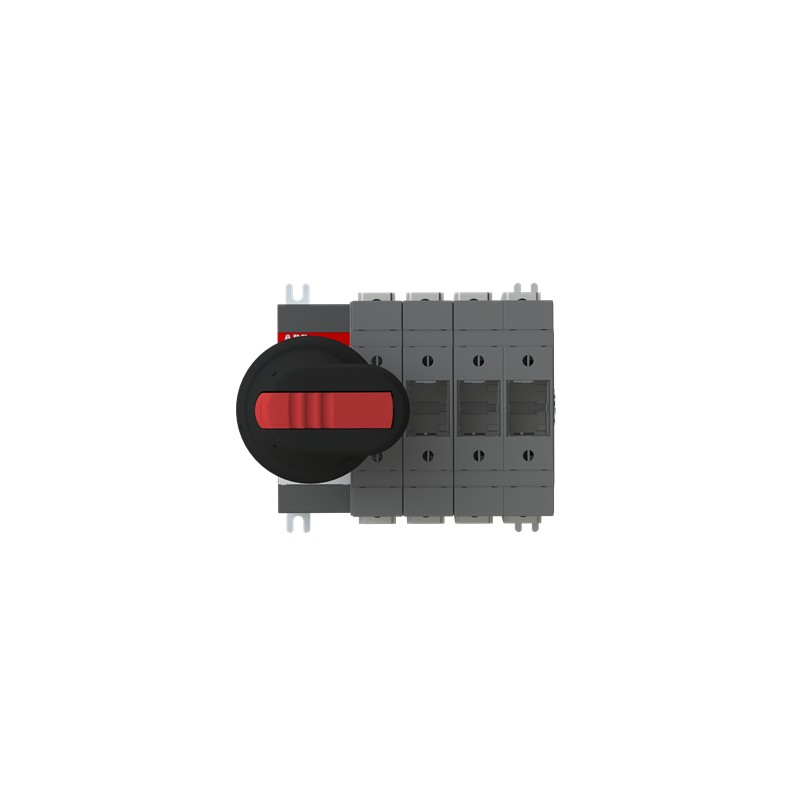

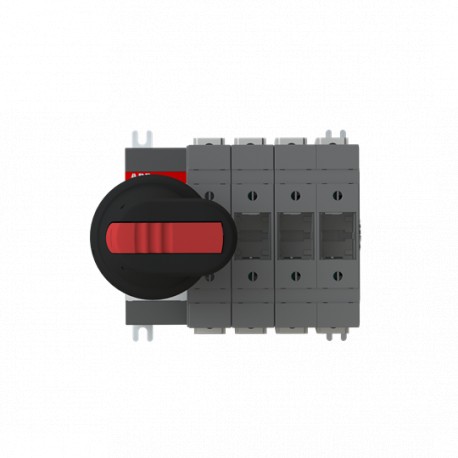

1SCA114610R1001 ABB Fuse switch OS32GB04N1P
1SCA114610R1001
ABB
Fuse switch OS32GB04N1P
OS32GB04N1P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5bc76227-2de0-413e-9f30-8c61c0656c69 Finland |
| Simplified SCIP | 20b46b29-2942-4c24-9e62-6699a9d9aac9 Germany |
| 6627e734-5ef0-4e3c-812b-d0983f7382f3 Bulgaria | |
| 1930e1d1-f79e-41bf-ad34-bae0b9766f1e Norway | |
| 66e7c7d6-8a68-4dfd-8fed-33fe00fbab23 Belgium | |
| b06afcc7-2c76-4bc0-ade9-453de75664f9 Sweden | |
| 8362d34c-45ad-40ce-910c-5242b077f197 Poland | |
| 462edf8a-d492-452c-bc23-b90b8adcd524 Poland | |
| 0ed548ac-7b63-4c64-a6d9-c9d6c3a18e31 Belgium | |
| 591ddb65-d8f0-4d4f-a22d-30e989ef85cf Spain | |
| 19e495dd-97c6-46ad-a5d6-d69254b3d69e Hungary | |
| 58b4078b-9240-4c97-a4a8-532d94ac371e Estonia | |
| e1ccf87a-6295-4a10-bd1b-e3fbc83bd710 Greece | |
| ccfdf5b5-326f-4289-9656-ee9d09a36454 Portugal | |
| 93a3e98a-4e3c-42a9-89b9-c3a1066daf37 Poland | |
| 12a9c71c-c9c3-4603-9c76-2930e15f9d3b Germany | |
| a58c27e1-cdef-41ef-8ed3-1e80bcae17f6 France | |
| 135f9a39-703f-4a2d-b10d-129b864e8c03 Netherlands | |
| c2973e1a-e805-4520-8f49-fbf0ed67812f Czech Republic | |
| c0f50707-4451-4f5d-879f-0e5f319a2a25 Denmark | |
| 066a7a78-97bc-497b-8a9b-f6d8f21a6c3c Croatia | |
| ef4e7128-ef54-428a-8f1a-75714b8624fe France | |
| 844cc72c-2a32-4099-819d-b61bf816af4a Italy | |
| 17901923-510b-4539-97aa-6e106a2eb684 Hungary | |
| 68d72ecc-9852-45b6-a9fe-6380bf0d3b74 Germany | |
| 6e311a67-3bd9-44c4-93b3-e4ff059012da Germany | |
| 91092930-ce2b-466c-a874-d6424acde1c6 Sweden | |
| 117c2523-2ca7-48e0-8d6a-0f51f458658d Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GB_F_04.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 136 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 109 mm |
| Product Net Weight | 1.37 kg |
| 3.02 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.5 kg |
| 3.3 lb | |
| Package Level 1 EAN | 6417019470306 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Fourth Pole Position | Left Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | A2-A3 |
| Fuse System | British Standard |
| Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| (400 V) 15 kW | |
| (415 V) 15 kW | |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 32 A |
| Rated operation power at AC-23, 400 V (EF007027) | 22 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Suitable for fuses (EF006692) | Shape A2/A3 |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
