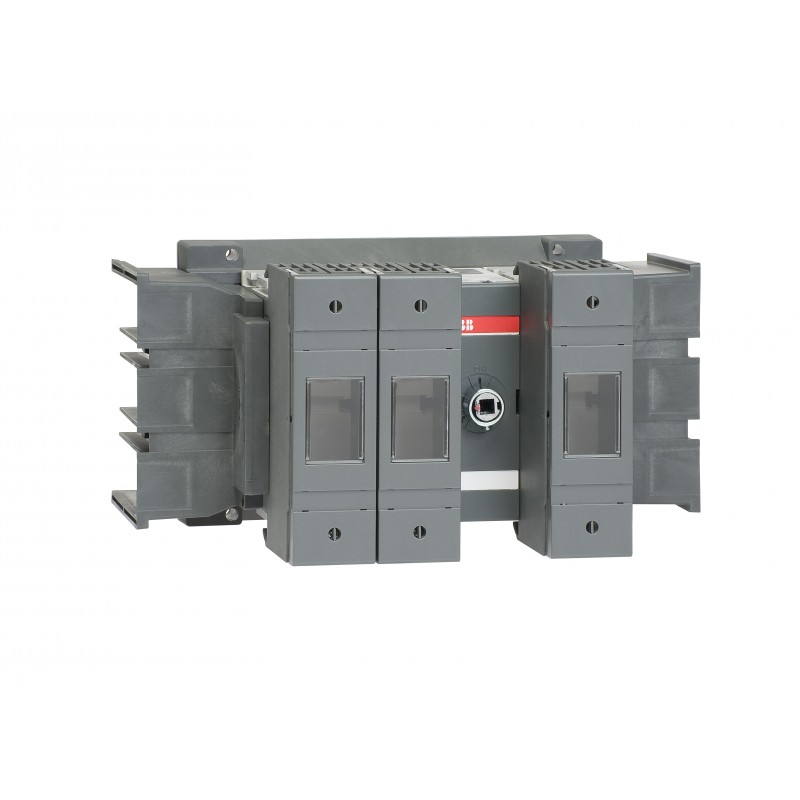

1SCA120294R1001 ABB OS160GD21LRP Switch fuse
1SCA120294R1001
ABB
OS160GD21LRP Switch fuse
Fuse switch OS160GD21LRP
OS160GD21LRP SPECIAL CONNECTED SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 22f8ed98-6ab8-4634-a6cf-1f9e936e1cb4 Finland |
| Simplified SCIP | 9334d0aa-7d1c-409a-9765-1e6f56c6f54e Germany |
| 996fcb58-bc3d-4766-a003-da0005aeaffe Belgium | |
| cf035e32-bb13-41cb-aa72-02c5b926fb11 Germany | |
| ee262dd7-47bd-468f-8f2c-dc7216ed543b Estonia | |
| e8ad038f-f9c1-4436-8067-d75a37113a8f Germany | |
| 27fa928e-05e4-4387-a879-ad417de753b3 Portugal | |
| bb1e3673-5762-46ae-aece-206be84deaee Greece | |
| 100853f6-1369-4878-8f08-5881a113b7d3 Bulgaria | |
| 092b7b6c-e90d-4202-8575-5fd1a4ffcd73 Poland | |
| d72bfb42-6db5-4909-aa78-158ef0cb41c4 Belgium | |
| ab1b48cd-1995-41f8-b9a0-d2f71480ae72 Italy | |
| fe8e05e1-d70d-42e1-9b5d-42a946da200f Poland | |
| 77030e92-427b-496d-88da-d76dac1e30ee Croatia | |
| eae98501-0d21-46f0-b18f-4f9c37ce1151 Norway | |
| b1b00ddf-4cde-48a5-9aad-9ea630238cad Spain | |
| 1423fa25-eb95-4775-9404-5a8f17c7e06e Sweden | |
| 62850623-b5d3-4909-95ab-2f5451444639 France | |
| 58e072c6-41f3-42de-883a-ab58ece3a956 Sweden | |
| 8f16600c-08a8-4ee1-a855-39e719ce0252 France | |
| 059b78d1-51a2-478a-b88a-0f654350f9e3 Hungary | |
| 319fd8d9-88de-49be-9623-508ec99117ab Denmark | |
| 6b4d7702-7fbe-4fb1-9ae7-5fcac12e7657 Czech Republic | |
| 79281c27-b80d-4bae-9dec-95e5743531dc Germany | |
| 6d7ee8ee-f2c6-42a2-a081-3511293a5fa4 Poland | |
| 7d2e352a-8ac9-465c-ae22-02d14d785471 Hungary | |
| 52e176d6-27c4-46cb-b797-072896a74b89 Netherlands | |
| a0ffe480-fd3f-4557-8b73-80bb28077b1c Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311040M0205 |
| Mechanical Drawings | os125-160gd21lr.stp |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 242 mm |
| Product Net Height | 122 mm |
| Product Net Depth / Length | 156 mm |
| Product Net Weight | 2.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 132 mm |
| Package Level 1 Depth / Length | 175 mm |
| Package Level 1 Height | 252 mm |
| Package Level 1 Gross Weight | 2.9 kg |
| Package Level 1 EAN | 6417019518060 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| NH00 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Left In - Right Out |
| Power Loss | at Rated Operating Conditions per Pole 12 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 21 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311140D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
